adorne AWP1G2WHW10 1-Gang Gloss White-on-White Wall Plate Instruction Manual

1. ምርት አብቅቷልview

The adorne AWP1G2WHW10 is a 1-Gang Gloss White-on-White Wall Plate designed to provide a sleek, screwless finish for your adorne electrical devices. This wall plate is part of the innovative adorne collection by Legrand, offering a modern aesthetic and easy installation for various electrical configurations.

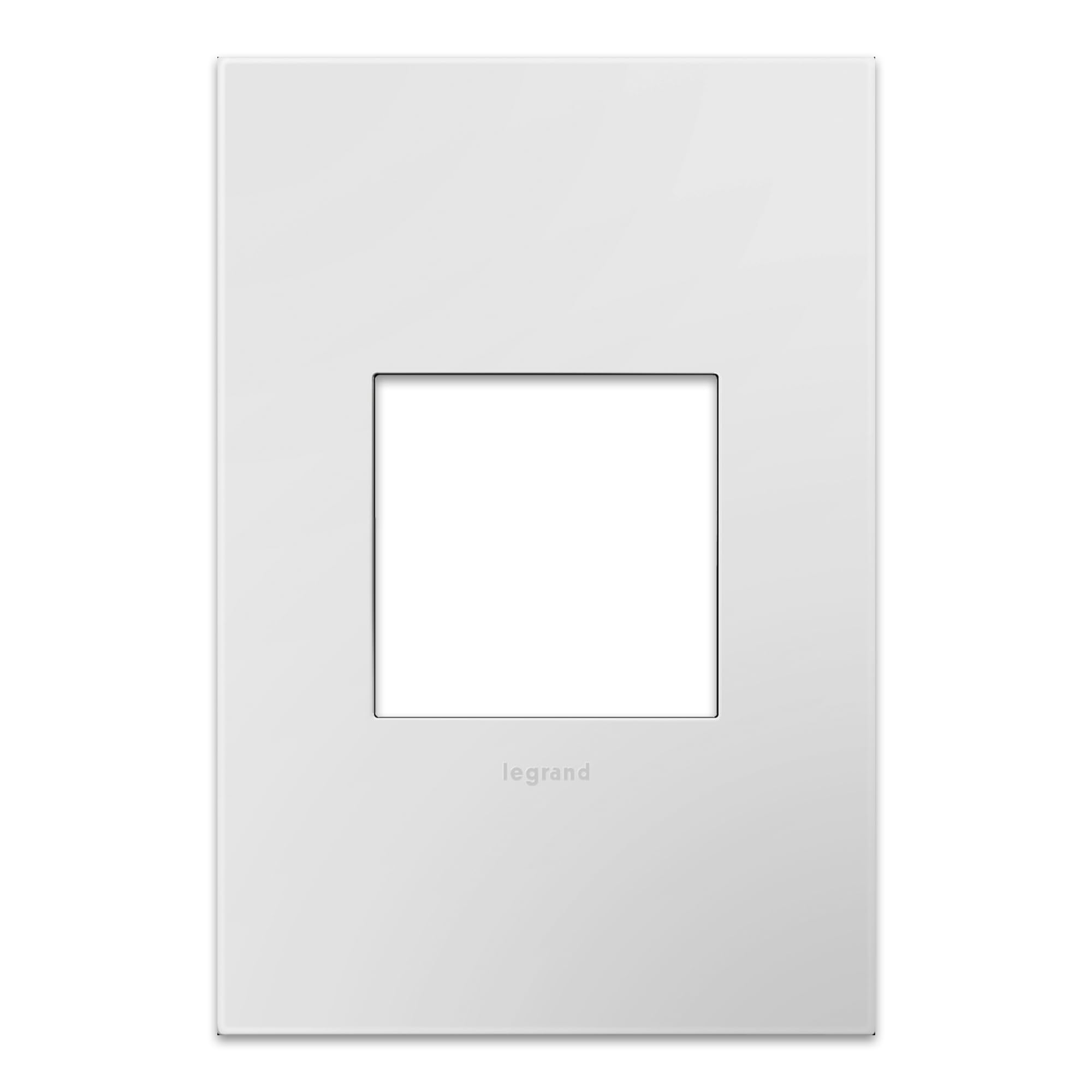

Image 1: The adorne AWP1G2WHW10 1-Gang Gloss White-on-White Wall Plate.

2. ባህሪያት

• Screwless Design: Features a clean, modern look with no visible screws, ideal for contemporary interiors.
• White-on-White Finish: Specifically designed with a gloss white front and a white backer for a cohesive, all-white appearance.
• ሁለገብ ተኳኋኝነት Perfectly sized to accommodate two Half-Size USB Outlets, a single Pop-Out or Standard Outlet, or any adorne Switch or Dimmer Switch.
• ቀላል መጫኛ; Snaps easily into the existing metal frame, fitting over standard electrical boxes.
• ሞዱል ሲስተም፡ Part of the adorne modular system, which simplifies device alignment and improves fit and finish in multi-gang installations.

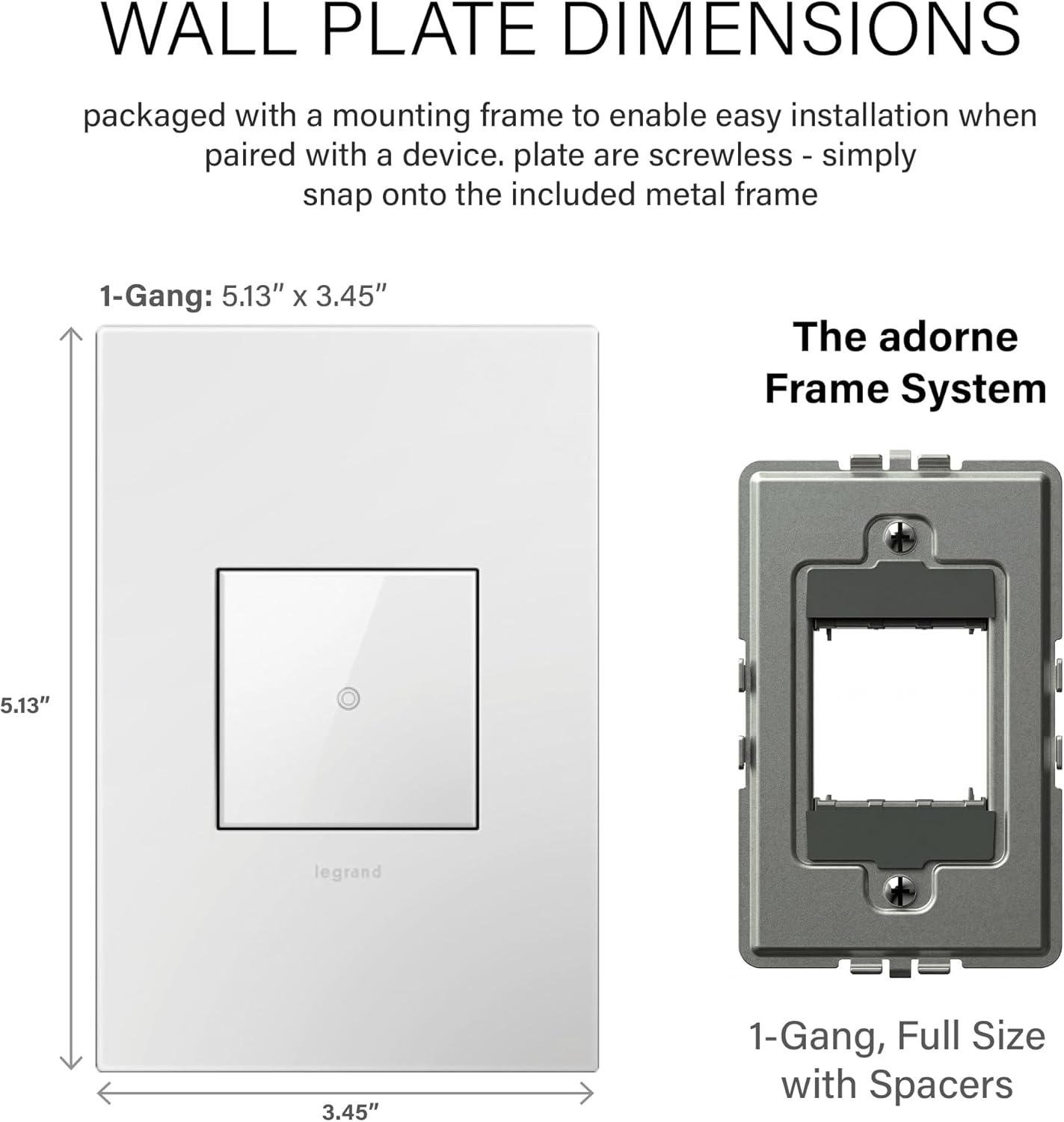

Image 2: Illustration of the adorne modular system, showing how devices and wall plates combine.

3. የመጫኛ መመሪያዎች

Before beginning installation, ensure the power to the electrical box is turned off at the circuit breaker to prevent electrical shock. This wall plate is designed for use with adorne collection devices and frames.

3.1 Understanding Gang Count

Gang count refers to the width of your electrical box and cover. A 1-gang configuration is for a single switch or stacked outlet. This AWP1G2WHW10 wall plate is a 1-gang plate.

Image 3: Visual guide to understanding gang counts for wall plates.

3.2 ደረጃ በደረጃ መጫን

1. Prepare the Electrical Box: Ensure the existing electrical box is properly installed and wired according to local electrical codes.
2. Install the adorne Frame: Mount the adorne metal frame (sold separately with adorne devices) into the electrical box using the provided screws. Ensure the frame is securely fastened and grounded.
3. Install the adorne Device: Snap your chosen adorne switch, dimmer, or outlet into the metal frame. The modular system ensures proper alignment.
4. የግድግዳ ሰሌዳውን ያያይዙ; Align the AWP1G2WHW10 wall plate over the installed device and frame. Gently press the wall plate onto the frame until it snaps securely into place. No screws are required for attaching the wall plate itself.

Image 4: Visual steps for installing an adorne wall plate, including the frame and device.

Image 5: An adorne wall plate with a switch, showcasing the screwless design.

3.3 የመጫኛ ቪዲዮ

For a visual guide on installing adorne wall plates, please watch the official product video below.

4. ኦፕሬሽን

The adorne AWP1G2WHW10 wall plate functions as a decorative cover for your adorne electrical devices. Once installed, it provides a finished and integrated appearance. The operation of the underlying switch, dimmer, or outlet is independent of the wall plate and follows the instructions provided with that specific adorne device.

5. ጥገና

To maintain the appearance of your adorne wall plate, clean it periodically with a soft, damp cloth. Avoid using abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish. Ensure the power is off before cleaning any electrical components.

6. መላ መፈለግ

• Wall Plate Does Not Snap On: Ensure the adorne metal frame is correctly installed and flush with the wall. Check for any obstructions.
• Wall Plate Appears Loose: Verify that the adorne metal frame is securely tightened to the electrical box. The wall plate should snap firmly onto the frame.
• Electrical Device Not Functioning: This issue is typically related to the wiring of the adorne device itself, not the wall plate. Refer to the instruction manual for your specific adorne switch, dimmer, or outlet, and ensure all electrical connections are secure and power is restored at the circuit breaker.

7. ዝርዝሮች

8. የዋስትና መረጃ

This adorne wall plate is covered by Legrand's standard product warranty. For detailed information regarding warranty terms, conditions, and duration, please refer to the official Legrand webጣቢያ ወይም የደንበኛ ድጋፍን ያግኙ። ለዋስትና ጥያቄዎች የግዢ ማረጋገጫዎን ያስቀምጡ።

9. የደንበኛ ድጋፍ

For technical assistance, product inquiries, or to report any issues, please contact Legrand customer support. You can find contact information, FAQs, and additional resources on the official Legrand webጣቢያ፡ www.legrand.us/adorne.
