Zastone X6 Two-Way Radio Instruction Manual

መግቢያ

This manual provides detailed instructions for the proper use, setup, and maintenance of your Zastone X6 Rechargeable Long Range Two-Way Radios. Please read this manual thoroughly before operating the devices to ensure optimal performance and safety.

በሣጥኑ ውስጥ ያለው

The Zastone X6 package includes the following components:

• 4 x Handheld Radios
• 4 x ዳግም ሊሞሉ የሚችሉ ባትሪዎች
• 4 x ኃይል መሙያዎች
• 4 x Earpieces with Microphones

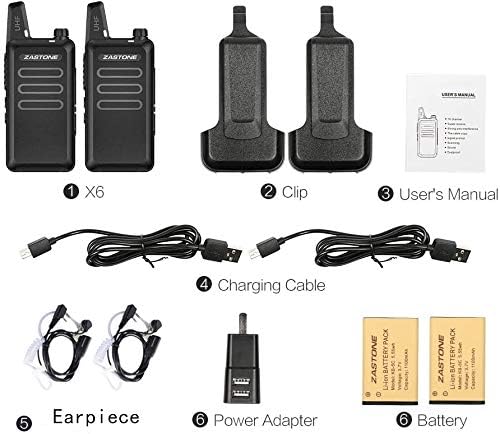

Figure 1: Package Contents - Zastone X6 Radios, Clips, User's Manual, Charging Cables, Earpieces, Power Adapters, Batteries.

ምርት አልቋልview & ዋና መለያ ጸባያት

The Zastone X6 radios are designed for reliable long-range communication, featuring a compact and durable build. They are suitable for various applications, from commercial use to outdoor activities.

Figure 2: Zastone X6 Rechargeable Long Range Two-Way Radios (4-Pack).

ቁልፍ ባህሪዎች

• Compact and Convenient Size: Easily fits in hand, measuring 9.6 x 5.5 x 2.2 cm (3.7 x 2.1 x 0.8 inches) and weighing 113g (0.25lb). Solidly built and water-resistant.
• የUHF ድግግሞሽ ክልል፡ Operates on UHF 400-470MHz with 16 pre-programmed channels. Channels can be programmed with 50 CTCSS tones and 105 CDCSS tones.
• ረጅም የባትሪ ህይወት; Each radio includes a 1100mAh rechargeable Li-ion battery, providing 2-5 days of standby time depending on transmission usage. Full charge takes approximately 3 hours.
• ኦዲዮን አጽዳ፡ High-quality built-in speaker delivers loud and crystal clear sound. Includes a single-earbud style earpiece with a built-in microphone and Push-to-Talk (PTT) button.
• የ VOX ተግባር ለእጅ-ነጻ ክዋኔ በድምጽ የነቃ ስርጭት።
• ዘላቂ ንድፍ; Falling-resistant from 1-3 meters.
• የተራዘመ ክልል፡ Tested transmission range up to 30 floors, with reduced range in congested areas.

ምስል 3: የፊት View ከተሰየሙ ክፍሎች ጋር።

ምስል 4: ጎን View with Labeled Controls and Ports.

ምስል 5፡ የታመቀ እና ተንቀሳቃሽ ዲዛይን።

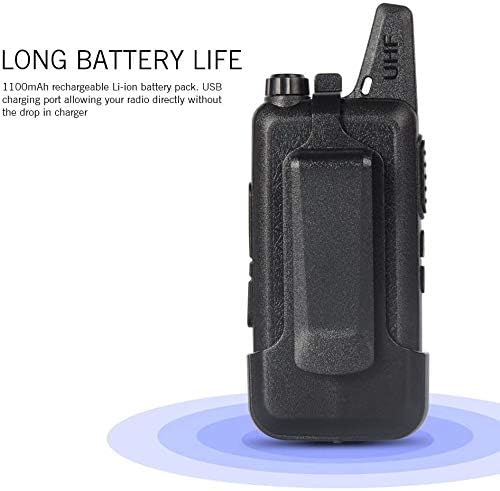

Figure 6: Long Battery Life Feature.

Figure 7: Built-in Antenna for Optimal Range.

የምርት ቪዲዮ፡-

የማዋቀር መመሪያ

1. ባትሪውን መሙላት፡-

1. ቻርጅ መሙያውን ከኃይል ምንጭ ጋር ያገናኙት።
2. Insert the radio with its battery into the charging cradle.
3. The charging indicator light will illuminate. Once fully charged (approx. 3 hours), the light will change color or turn off.

2. የቀበቶ ክሊፕን ማያያዝ፡

• የቀበቶውን ክሊፕ በሬዲዮው ጀርባ ላይ ከሚገኙት የሾሉ ቀዳዳዎች ጋር ያስተካክሉት.
• Secure the clip using the provided screws.

3. Connecting the Earpiece:

• Locate the speaker/mic port on the side of the radio.
• Insert the earpiece plug firmly into the port. When the earpiece is connected, audio will be routed to the earpiece, and the radio's internal speaker will be muted.

የአሠራር መመሪያዎች

1. የመብራት / ማጥፊያ እና የድምጽ መቆጣጠሪያ;

• To power on the radio, rotate the Power/Voice Volume knob clockwise.
• ድምጹን ለመጨመር በሰዓት አቅጣጫ ማሽከርከርዎን ይቀጥሉ።
• Rotate counter-clockwise to decrease the volume.
• To power off, rotate the knob fully counter-clockwise until it clicks.

2. የሰርጥ ምርጫ፡-

• Use the Channel Selector Plus and Channel Selector Reduce buttons on the side of the radio to change channels.
• A synthesized voice will announce the channel number as you change it.

3. Transmitting (Push-to-Talk - PTT):

• To transmit, press and hold the PTT key on the side of the radio.
• Speak clearly into the microphone (either on the radio or the earpiece).
• Release the PTT key to stop transmitting and return to receive mode.

4. VOX Function:

• The radio supports VOX (Voice Operated Exchange), allowing hands-free transmission when enabled. Refer to the full user manual for detailed instructions on enabling and adjusting VOX sensitivity.

5. Monitor Function:

• Press the Monitor key to temporarily disable squelch and listen for weak signals on the current channel.

ጥገና

የባትሪ እንክብካቤ

• በመጀመሪያ ከመጠቀምዎ በፊት ባትሪዎችን ሙሉ በሙሉ ይሙሉ።
• የባትሪውን ዕድሜ ለማራዘም ከመጠን በላይ መሙላት ወይም ሙሉ በሙሉ ማፍሰስን ያስወግዱ።
• Store radios and batteries in a cool, dry place when not in use.

ማጽዳት፡

• የራዲዮውን ገጽ ለስላሳ፣ መamp ጨርቅ.
• ኃይለኛ ኬሚካሎችን ወይም አጥፊ ማጽጃዎችን አይጠቀሙ።
• መለዋወጫዎችን ከመሙላት ወይም ከማገናኘትዎ በፊት ሁሉም ወደቦች ደረቅ መሆናቸውን ያረጋግጡ።

መላ መፈለግ

ዝርዝሮች

ዋስትና እና ድጋፍ

Zastone products are manufactured to high-quality standards. For warranty information, technical support, or service inquiries, please refer to the contact information provided with your purchase or visit the official Zastone webጣቢያ. ለዋስትና ጥያቄዎች የግዢ ደረሰኝዎን እንደ ግዢ ማረጋገጫ ያቆዩት።
