1. መግቢያ
This manual provides essential instructions for the safe installation, operation, and maintenance of your Fresca Spazio 24" x 30" LED Medicine Cabinet with Defogger. Please read this manual thoroughly before installation and retain it for future reference. This medicine cabinet is designed to enhance your bathroom with integrated LED lighting, a defogger function, and convenient internal power options.
2. የደህንነት መረጃ
- የኤሌክትሪክ ደህንነት; Installation must be performed by a qualified electrician in accordance with all local electrical codes. Ensure power is disconnected at the main circuit breaker before any installation or maintenance.
- ውሃ እና እርጥበት; This product is designed for bathroom use but should not be directly exposed to water spray or submersion. Avoid using abrasive cleaners or excessive moisture near electrical components.
- የመስታወት አያያዝ The cabinet features glass mirrors and shelves. Handle with care to prevent breakage. In case of breakage, dispose of shattered glass safely.
- የክብደት አቅም; Do not overload shelves. Refer to specifications for maximum weight capacity per shelf.
- የአየር ማናፈሻ; Ensure adequate ventilation around the cabinet, especially if recessed, to prevent overheating of electrical components.
3. የጥቅል ይዘቶች
መጫኑን ከመቀጠልዎ በፊት ሁሉም አካላት መኖራቸውን እና ያልተበላሹ መሆናቸውን ያረጋግጡ።
- Fresca Spazio Medicine Cabinet (1 unit)
- Adjustable Tempered Glass Shelves (3 units)
- Mounting Hardware (screws, anchors, etc. - specific to mounting type)
- Installation Manual (separate document, refer to for detailed steps)
4. ዝርዝሮች
| ባህሪ | ዝርዝር |
|---|---|
| የሞዴል ቁጥር | FMC022430-R |
| ልኬቶች (W x H x D) | 23 5/8" x 29 1/2" x 4 7/8" (approx. 24"W x 30"H x 5"D) |
| የመጫኛ አይነት | Surface or Recessed |
| ማብራት | High-output exterior LED (dimmable), Interior LED (infrared touch switch) |
| Defogger | Integrated with touch switch |
| ውስጣዊ ባህሪያት | Electrical/USB outlet, Mirrored cabinet and door backs, 3 adjustable tempered glass shelves |
| የክፈፍ ቁሳቁስ | Moisture-resistant anodized aluminum |
| ማንጠልጠያ | Premium Blum hinges |
| የእቃው ክብደት | 48 ፓውንድ |
5. ማዋቀር እና መጫን
The Fresca Spazio medicine cabinet can be installed either surface-mounted or recessed into the wall. Due to the integrated electrical components, professional installation by a licensed electrician is strongly recommended to ensure safety and compliance with local building codes.
5.1 የቅድመ-መጫኛ ቼኮች
- Unpack the cabinet and inspect for any shipping damage.
- ሁሉም አስፈላጊ መሣሪያዎች እና የመጫኛ መሳሪያዎች መኖራቸውን ያረጋግጡ።
- በወረዳው ሰባሪው ላይ ወደ ተከላው ቦታ ኃይል ያጥፉ።
- For recessed installation, verify wall cavity dimensions match the cabinet's recessed dimensions.
5.2 የመጫኛ አማራጮች
Detailed instructions for both surface and recessed mounting are provided in the separate installation manual included with your product. Always follow those specific instructions for secure and correct installation.
Image: Fresca Spazio medicine cabinet with LED lighting illuminated, mounted on a bathroom wall above a sink area.
Image: Fresca Spazio medicine cabinet with LED lighting off, mounted on a bathroom wall, showcasing የእሱ ለስላሳ ንድፍ.
5.3 የኤሌክትሪክ ግንኙነት
The cabinet requires a hardwired electrical connection for its LED lighting, defogger, and internal outlets. This connection must be made by a qualified electrician. Ensure proper grounding and adherence to all electrical codes.
5.4 የመደርደሪያ መጫኛ
Once the cabinet is securely mounted, install the three adjustable tempered glass shelves. Position the shelf clips at desired heights and carefully place the glass shelves onto the clips.

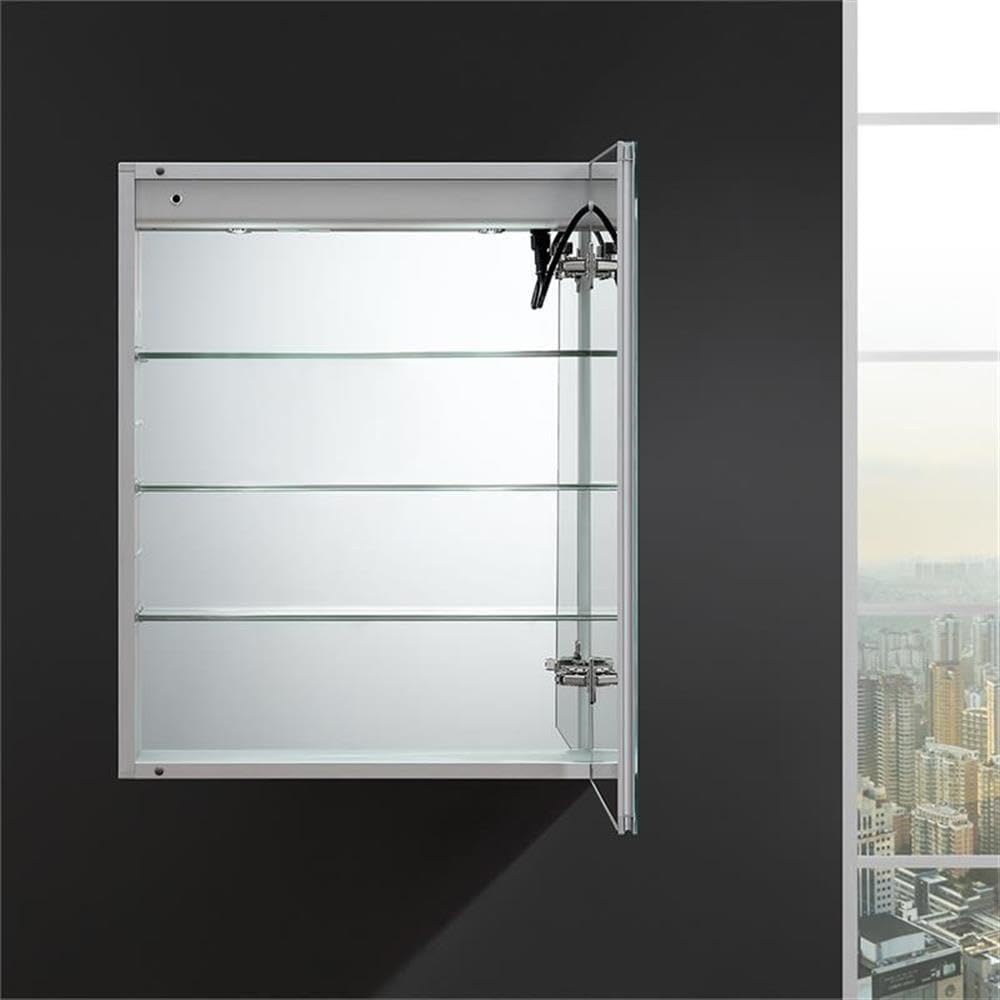

ምስል: የውስጥ view of the Fresca Spazio medicine cabinet, showing the three adjustable tempered glass shelves ready for use.
6. የአሠራር መመሪያዎች
Your Fresca Spazio medicine cabinet features intuitive touch controls for its various functions.
Image: Close-up of the illuminated touch controls on the mirror surface, indicating the LED light and defogger functions.
6.1 Exterior LED Lighting
The exterior LED lighting is activated and controlled by a touch switch located on the mirror surface. A quick tap will turn the light on or off. To dim the light, press and hold the touch switch until the desired brightness is achieved.
6.2 Mirror Defogger
The defogger function is activated by a separate touch switch on the mirror surface. A quick tap will turn the defogger on or off, clearing condensation from the mirror. The defogger will automatically turn off after a set period or can be manually turned off.
6.3 የውስጥ LED መብራት
The interior of the cabinet features an LED light controlled by an infrared touch switch. This light illuminates the contents of the cabinet when the door is opened or when activated by touch, providing visibility even in low-light conditions.
Image: The Fresca Spazio medicine cabinet with its doors open, revealing the interior LED lighting illuminating various bathroom essentials on the glass shelves.
6.4 Internal Electrical/USB Outlet
The cabinet includes a convenient electrical outlet and USB charging port inside. These are designed for powering or charging small bathroom appliances such as electric toothbrushes, shavers, or mobile devices. Ensure the cabinet is properly wired for these outlets to function.
7. ጥገና
7.1 Cleaning the Mirror and Cabinet
- ለስላሳ ይጠቀሙ, መamp cloth with a mild, non-abrasive glass cleaner for the mirror surfaces.
- For the cabinet frame and interior, wipe with a soft, damp ጨርቅ. ማጠናቀቂያውን ሊጎዱ የሚችሉ ጠንካራ ኬሚካሎችን ወይም ገላጭ ቁሳቁሶችን ያስወግዱ።
- Do not spray cleaners directly onto the mirror or electrical components. Apply cleaner to the cloth first.
- Ensure all surfaces are dry after cleaning to prevent water spots or moisture damage.
7.2 የሂንጅ እንክብካቤ
The cabinet is equipped with premium Blum hinges. Periodically check hinges for smooth operation. If necessary, a small amount of silicone-based lubricant can be applied to moving parts. Do not use oil-based lubricants.
ምስል፡ መቀራረብ view of the durable Blum hinge mechanism, highlighting the quality construction of the cabinet door.
8. መላ መፈለግ
| ችግር | ሊሆን የሚችል ምክንያት | መፍትሄ |
|---|---|---|
| የ LED መብራቶች አይሰሩም | No power, loose connection, faulty switch, LED failure. | Check circuit breaker. Ensure all electrical connections are secure (consult electrician). Contact customer support if issue persists. |
| Defogger not activating | No power, faulty switch, defogger element failure. | Verify power supply. Ensure touch switch is functioning. Contact customer support. |
| Internal outlets not working | No power, incorrect wiring, faulty outlet. | Check circuit breaker. Have an electrician inspect wiring. |
| Mirror is foggy despite defogger | Defogger not activated, extreme humidity, defogger element issue. | Ensure defogger is on. Allow time for defogger to work. Contact customer support if issue persists. |
For issues not listed or if solutions do not resolve the problem, please contact Fresca customer support.
9. ዋስትና እና ድጋፍ
Fresca products are manufactured to high-quality standards and come with a manufacturer's warranty. For specific warranty details, including coverage period and terms, please refer to the warranty card included with your product or visit the official Fresca website. For technical support, replacement parts, or any other inquiries, please contact Fresca customer service.
Fresca Customer Support: Please refer to your product packaging or the official Fresca webበጣም ወቅታዊ የእውቂያ መረጃ ለማግኘት ጣቢያ.
