CFMOTO Front Box ATV 800/850xc/X8/X10 Instruction Manual

1. መግቢያ

This manual provides detailed instructions for the safe and proper installation, operation, and maintenance of your CFMOTO Front Box ATV. Please read this manual thoroughly before using the product to ensure optimal performance and longevity. Keep this manual for future reference.

2. የደህንነት መረጃ

WARNING: Failure to follow these safety instructions may result in property damage or personal injury.

• Always ensure the box is securely mounted to the ATV rack before operation.
• Do not overload the box. Refer to the specifications for maximum capacity.
• Distribute weight evenly within the box to maintain ATV stability.
• Regularly inspect mounting hardware for tightness and wear.
• Keep hands and fingers clear of hinges and latches when opening or closing the box.

3. የጥቅል ይዘቶች

Verify that all components are present in the package. If any items are missing or damaged, contact customer support.

• CFMOTO Front Box (1 unit)
• Mounting Hardware Kit (bolts, washers, nuts, brackets)
• የትምህርት መመሪያ (ይህ ሰነድ)

4. ማዋቀር እና መጫን

Follow these steps to properly install the front box on your CFMOTO ATV (models 800/850xc/X8/X10).

4.1 Prepare the ATV

1. Park the ATV on a level surface and engage the parking brake.
2. Ensure the front rack is clean and free of debris.

4.2 Position the Front Box

Place the front box onto the ATV's front rack. Adjust its position to ensure it is centered and does not obstruct any essential ATV functions or lights.

Figure 4.2.1: The front box positioned on an ATV's front rack, demonstrating proper placement.

4.3 Secure the Box with Mounting Hardware

1. Identify the mounting points on the bottom of the front box and align them with suitable attachment points on the ATV rack.
2. Use the provided mounting hardware (bolts, washers, nuts, brackets) to secure the box to the rack. Insert bolts through the box and rack, then fasten with washers and nuts from underneath.
3. Tighten all fasteners securely. Do not overtighten, as this may damage the box or rack.
4. After initial tightening, gently attempt to move the box to ensure it is firmly attached and does not wobble.

ምስል 4.3.1: ማዕዘን view of the CFMOTO Front Box, highlighting its design and potential mounting areas.

5. የአሠራር መመሪያዎች

5.1 Opening the Front Box

To open the front box, locate the latches on the front or sides of the box. Release the latches by pulling them outwards or upwards, depending on the latch mechanism. Once released, lift the lid upwards.

Figure 5.1.1: The front box shown with its lid open, illustrating the internal compartment.

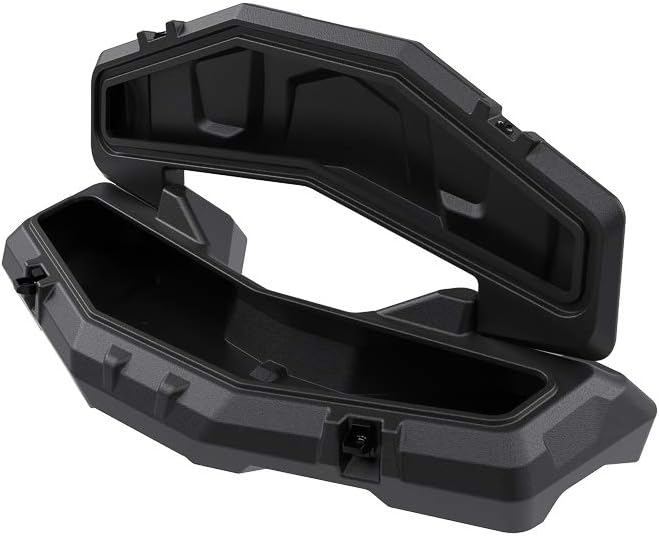

ምስል 5.1.2፡ ኤ view of the front box from above, with the lid fully open to display the interior.

5.2 Closing and Securing the Front Box

Lower the lid until it rests flush with the base of the box. Engage the latches by pushing them inwards or downwards until they click into place, ensuring the lid is securely fastened. Verify that all latches are engaged before operating the ATV.

Figure 5.2.1: The front box in its closed state, ready for use.

5.3 Loading the Box

• Place items inside the box, ensuring they are distributed evenly to prevent shifting during ATV operation.
• Do not exceed the maximum weight capacity of 3.5 kg (7.7 lbs) or 42 liters.
• Avoid placing sharp or abrasive objects directly against the interior walls without protection to prevent damage.

6. ጥገና

6.1 ጽዳት

• Clean the exterior of the box with mild soap and water. Use a soft cloth or sponge.
• በንጹህ ውሃ በደንብ ያጠቡ እና አየር እንዲደርቅ ያድርጉ.
• Avoid using harsh chemicals, abrasive cleaners, or high-pressure washers, as these can damage the finish or seals.

6.2 ምርመራ

• Periodically inspect the box for any signs of damage, cracks, or loose components.
• Check all mounting hardware for tightness before each ride. Retighten if necessary.
• Inspect the latches and hinges for proper function and lubrication. Apply a silicone-based lubricant if they become stiff.

7. መላ መፈለግ

7.1 Box is Loose on ATV Rack

• መፍትሄ፡- Inspect all mounting bolts and nuts. Tighten any loose fasteners. Ensure all brackets are correctly positioned.

7.2 Lid Does Not Close Securely

• መፍትሄ፡- Check for any obstructions preventing the lid from closing fully. Ensure latches are aligned and engaging properly. Clean any debris from the latch mechanisms.

7.3 Water Inside the Box

• መፍትሄ፡- Inspect the rubber seal around the lid for damage or displacement. Ensure the lid is fully closed and all latches are securely fastened.

8. ዝርዝሮች

ማስታወሻ፡ መግለጫዎች ያለቅድመ ማስታወቂያ ሊለወጡ ይችላሉ።

9. የዋስትና መረጃ

This CFMOTO product is covered by a limited warranty against manufacturing defects. The specific terms and duration of the warranty may vary by region and retailer. Please retain your proof of purchase for warranty claims. For detailed warranty information, refer to the warranty card included with your product or contact CFMOTO customer support.

10. የደንበኛ ድጋፍ

If you have any questions, require assistance with installation, or encounter issues not covered in this manual, please contact CFMOTO customer support. Contact details can typically be found on the official CFMOTO webጣቢያ ወይም በምርት ማሸጊያዎ ላይ።

• የመስመር ላይ ድጋፍ Visit the official CFMOTO webለተደጋጋሚ ጥያቄዎች እና የድጋፍ መርጃዎች ጣቢያ።
• የኢሜል ድጋፍ Refer to your product documentation for the appropriate email address.
• የስልክ ድጋፍ፡ ተገቢውን የስልክ ቁጥር ለማግኘት የምርትዎን ሰነድ ይመልከቱ።
