EZVIZ DL05 Smart Digital Lock User Manual

ምርት አልቋልview

The EZVIZ DL05 is a state-of-the-art smart digital lock designed for modern homes. It combines a sleek, sophisticated design with advanced security features, providing multiple ways to access your home while keeping it secure. Connected via Bluetooth or Wi-Fi, the DL05 allows for flexible unlocking methods and remote control through the EZVIZ application.

Image: The EZVIZ DL05 Smart Digital Lock, showcasing its sleek front and rear panels.

ቁልፍ ባህሪያት የሚከተሉትን ያካትታሉ:

• Multiple unlocking methods: Fingerprint, password, proximity card, mechanical key, Bluetooth key via EZVIZ app, temporary codes, remote unlocking.
• Simplified control via the EZVIZ app.
• Real-time mobile alerts for door activity and low battery.
• Support for temporary access codes and anti-peep codes (up to 20 digits).
• Integrated electronic doorbell.
• ፀረ-ቲamper alarm and automatic locking after failed attempts.
• IP65 weatherproof design for the front panel.
• Emergency power supply via Type-C port.
• Child safety lock and private mode for enhanced security.
• Smart integration with EZVIZ cameras for recorded video upon entry.
• Long battery life of up to 1 year (8 AA 1.5V alkaline batteries).

የጥቅል ይዘቶች

Ensure all items are present in the package before beginning installation:

• DL05 Smart Fingerprint Lock (Front Panel + Rear Panel + Drilling Template)
• መቆለፊያ አካል
• መደበኛ ስክሩ ቦርሳ
• Lock Body Screw Bag (2)
• Positioning Screw Bag
• Reversing Screw (2)
• ኤ ኤ ባትሪዎች (8)
• መካኒካል ቁልፎች (2)
• ካሬ ባር
• Proximity Card (2)
• Silicone Plug (for Rear Panel)
• የቁጥጥር መረጃ
• ፈጣን ጅምር መመሪያ

ማዋቀር

Professional installation is recommended for optimal performance and to ensure proper adjustments are made to your door. The DL05 supports door thicknesses from 30 to 110 mm.

1. አካላዊ ጭነት

Follow the detailed instructions in the Quick Start Guide and use the provided drilling template for precise installation of the lock body, front panel, and rear panel. Ensure all screws are securely fastened.

Image: Technical dimensions of the EZVIZ DL05 Smart Digital Lock, showing height, width, and depth measurements.

2. የባትሪ ጭነት

The DL05 requires 8 AA 1.5V alkaline batteries. Insert them into the designated battery compartment on the rear panel, ensuring correct polarity. The lock will provide a low battery warning when replacement is needed.

3. የመተግበሪያ ውቅር

Download the EZVIZ app from your smartphone's app store. Follow the in-app instructions to pair your DL05 lock with your account via Wi-Fi (2.4GHz) or Bluetooth. The app allows for easy user management, adding fingerprints, passwords, and proximity cards.

Image: The EZVIZ DL05 lock installed on a door, with a smartphone displaying real-time notifications from the EZVIZ app, showing door open events.

የአሠራር መመሪያዎች

የመክፈቻ ዘዴዎች

• የጣት አሻራ Place your registered finger on the fingerprint reader located on the handle. The lock processes and stores up to 50 different fingerprints locally.
• የይለፍ ቃል፥ Enter your permanent or temporary password on the keypad. Anti-peep codes (up to 20 digits) can be used to prevent others from guessing your password.
• የቅርበት ካርድ፡ Tap your registered proximity card against the designated area on the lock. The lock supports up to 50 cards.
• መካኒካል ቁልፍ፡- In case of emergency or battery depletion, use one of the two provided mechanical keys to unlock the door.
• EZVIZ App (Bluetooth/Remote): Use the EZVIZ app on your smartphone to unlock the door via Bluetooth when nearby, or remotely via Wi-Fi from anywhere. You can also share Bluetooth keys with family members or create temporary passwords for visitors.

Image: The EZVIZ DL05 Smart Digital Lock installed on a white door, showing its integrated keypad and handle.

የደህንነት ባህሪያት

• ራስ-ሰር መቆለፍ; The DL05 automatically locks whenever you close the door.
• የልጆች ደህንነት መቆለፊያ; Activate this feature to prevent children or pets from accidentally opening the door from the inside.
• የግል ሁነታ፡ When activated, only the administrator can open the door from the outside, and the alarm sound will be silenced, ensuring uninterrupted privacy.
• ፀረ-ቲampኧረ ማንቂያ፡ An alarm will sound if there is suspicious activity, such as lock removal or forced entry. If 5 incorrect entries are made within 5 minutes, the lock will temporarily disable for 3 minutes.

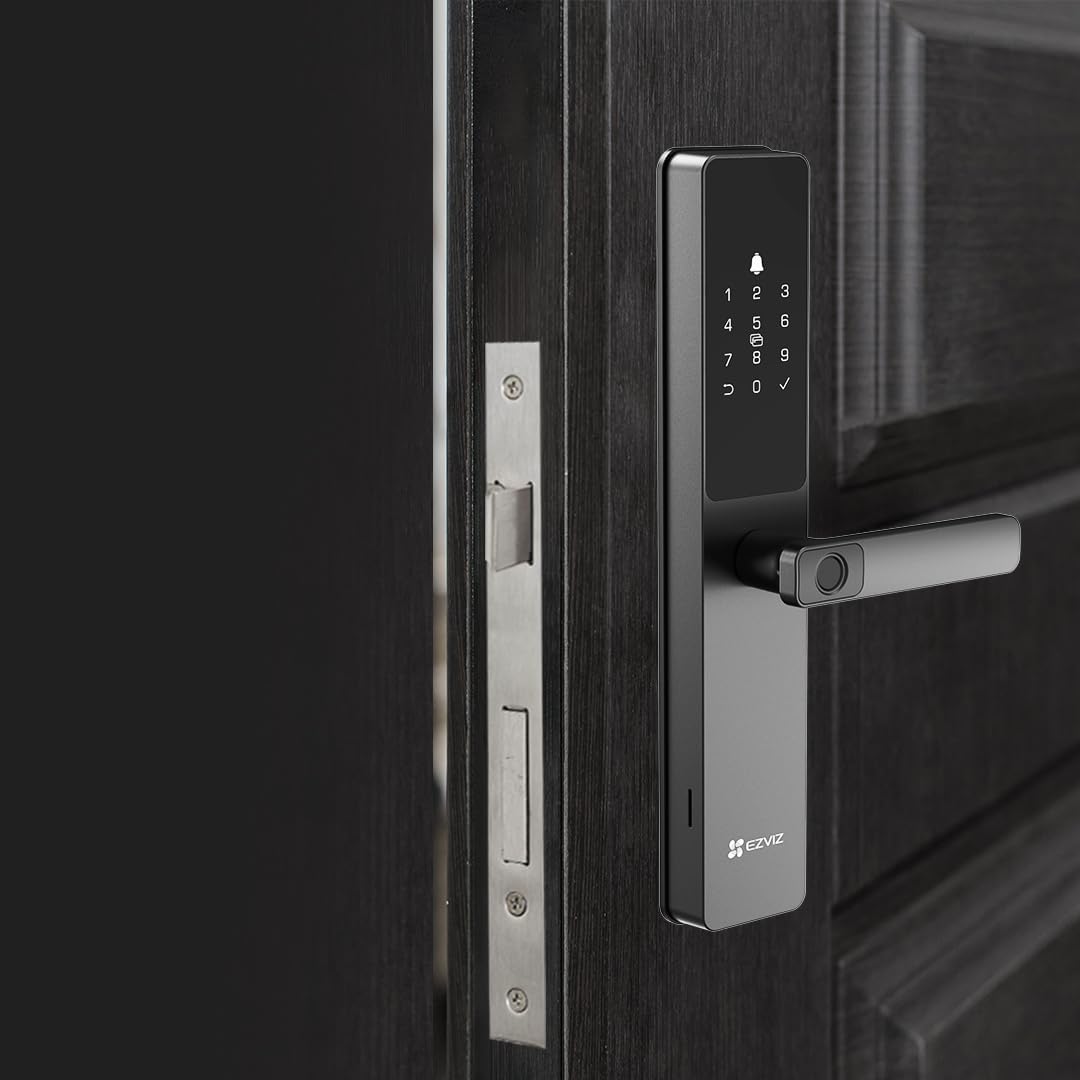

Image: The EZVIZ DL05 Smart Digital Lock installed on a dark wooden door, highlighting its modern aesthetic.

ጥገና

የባትሪ መተካት

The DL05 is powered by 8 AA 1.5V alkaline batteries, offering a standby operation time of up to 365 days. The lock will provide a low battery warning when it's time for replacement. To replace, open the battery compartment on the rear panel and insert new batteries, ensuring correct orientation.

ማጽዳት

Wipe the lock's exterior with a soft, dry cloth. Avoid using abrasive cleaners or solvents that could damage the finish or internal components. The front panel is IP65 weatherproof, protecting it from dust and water splashes.

መላ መፈለግ

• ምላሽ የማይሰጥ ቁልፍ፡ Check battery levels. If batteries are depleted, use the mechanical key or connect a Type-C power source for emergency charging.
• Incorrect password/fingerprint attempts: The lock will automatically disable for 3 minutes after 5 successive failed attempts within 5 minutes. Wait for the lockout period to end before trying again.
• የመተግበሪያ ግንኙነት ችግሮች፡- Ensure your Wi-Fi network (2.4GHz) is stable and the lock is within range. Restart the lock and your router if necessary. Verify the lock is properly paired in the EZVIZ app.
• ማንቂያው ባልተጠበቀ ሁኔታ ይሰማል፦ Check for any signs of tampering or forced entry. If the alarm is false, ensure the lock is properly installed and calibrated.
• የመጫን ችግር፤ As mentioned, professional installation is recommended to ensure proper fit and function, especially for door adjustments.

ቴክኒካዊ ዝርዝሮች

ዋስትና እና ድጋፍ

Warranty information for your EZVIZ DL05 Smart Digital Lock is typically provided with your purchase documentation or can be found on the official EZVIZ webጣቢያ. የዋስትና ሽፋን እና ውሎችን በተመለከተ ዝርዝሮችን ለማግኘት እባክዎ እነዚህን ምንጮች ይመልከቱ።

For technical support, troubleshooting assistance, or any inquiries regarding your DL05 lock, please utilize the EZVIZ application. The app provides comprehensive user management and real-time notifications, and serves as the primary point of contact for customer support.
