መግቢያ
This manual provides detailed instructions for the safe installation, operation, and maintenance of your AUTELO H7010 BK 1-Light Industrial Pendant Light. Please read this manual thoroughly before installation and retain it for future reference.

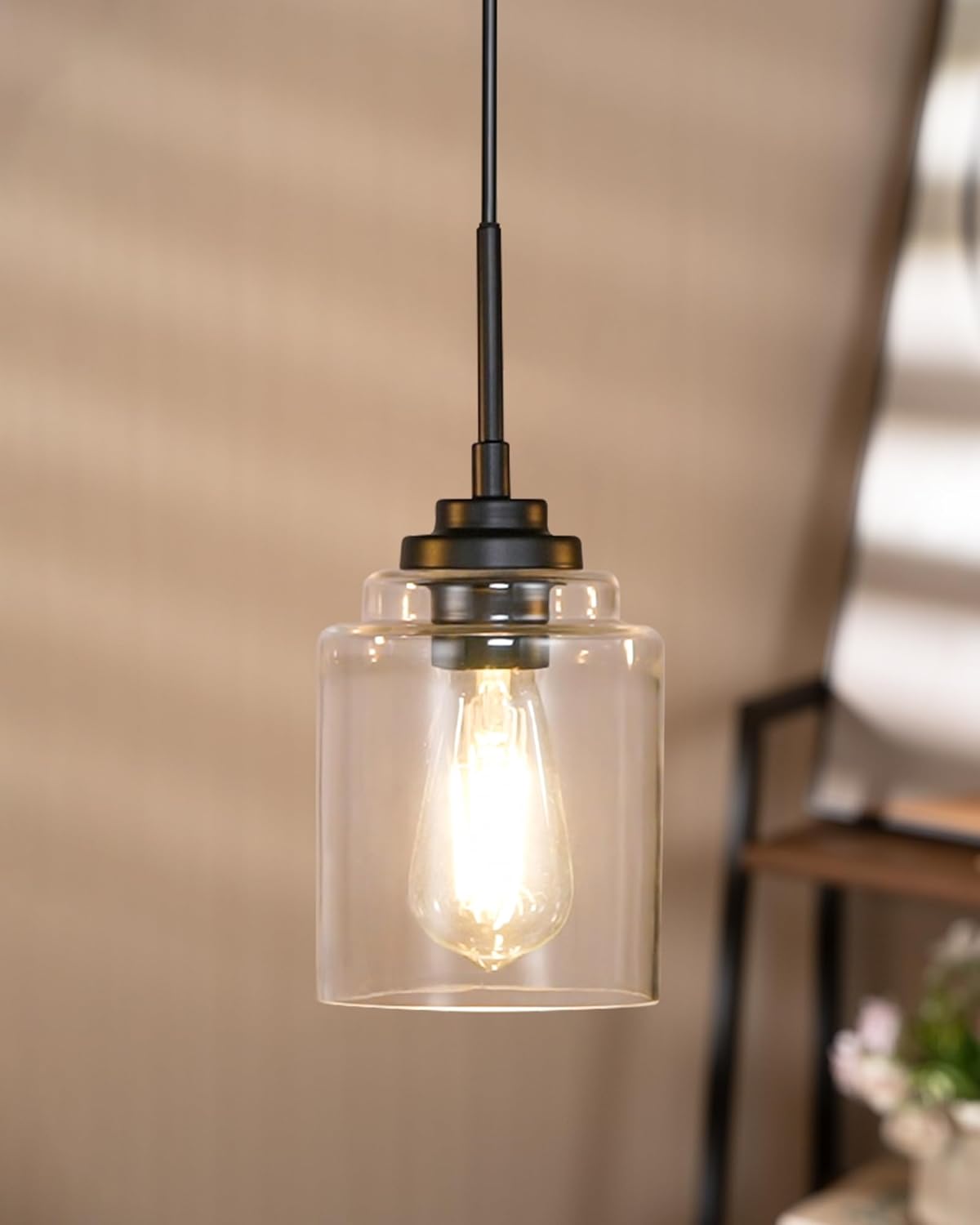

Image: The AUTELO H7010 BK 1-Light Industrial Pendant Light featuring a clear glass shade and black metal finish.
የደህንነት መረጃ
ማስጠንቀቂያ፡- የእሳት፣ የኤሌክትሪክ ንዝረት ወይም የግል ጉዳት አደጋን ለመቀነስ፣ የሚከተሉትን የደህንነት ጥንቃቄዎች ሁልጊዜ ይከተሉ፡
- Always turn off the power at the main circuit breaker or fuse box before beginning installation or performing any maintenance.
- የኤሌክትሪክ ጭነቶችን የማያውቁ ከሆነ ብቃት ያለው የኤሌክትሪክ ባለሙያ ያማክሩ።
- ሁሉም የኤሌክትሪክ ግንኙነቶች በአካባቢያዊ ኮዶች፣ ደንቦች እና በብሔራዊ የኤሌክትሪክ ኮድ (NEC) መሠረት መከናወናቸውን ያረጋግጡ።
- የተገለጸውን አምፖል አይነት እና ዋት ብቻ ይጠቀሙtagሠ ከመጠን በላይ ሙቀትን ለማስወገድ.
- ይህንን መሳሪያ ከመሬት አልባ የኤሌክትሪክ ስርዓት ጋር አያገናኙት።
- መሰባበርን ለመከላከል የመስታወት ክፍሎችን በጥንቃቄ ይያዙ.
ማዋቀር እና መጫን
The AUTELO H7010 BK pendant light is designed for hard-wired installation. All necessary mounting hardware is included for quick and easy setup. Professional installation is recommended if you are unsure about the process.
አካላት አልቀዋልview

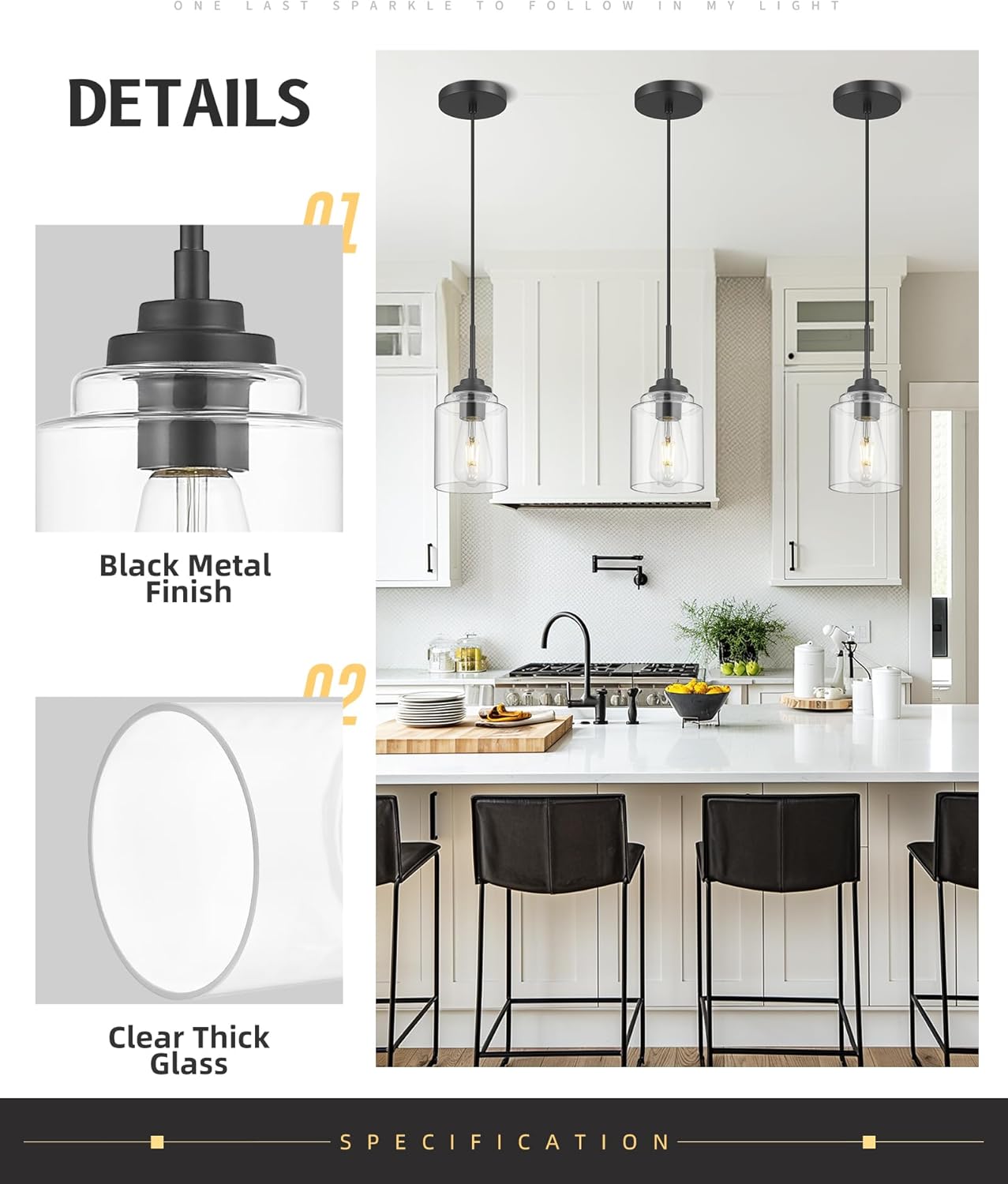

ምስል፡ መቀራረብ view highlighting the black metal finish and the clear thick glass shade of the pendant light.
የመጫኛ ደረጃዎች
- ለመጫን መዘጋጀት; Turn off power at the circuit breaker. Ensure the mounting surface is secure and can support the fixture's weight.
- የጣሪያውን ንጣፍ መስቀል; Attach the ceiling plate to the junction box using the provided screws.
- Adjust Hanging Length: The pendant light features an adjustable cord. The maximum adjustable length is 53 inches, with a total maximum hanging length of 66 inches. Adjust the cord to your desired height before making electrical connections.
- የኤሌክትሪክ ግንኙነቶችን ይፍጠሩ; Connect the fixture's wires to the corresponding household wires (black to black, white to white, ground to ground) using wire connectors. Ensure all connections are secure.
- የመገጣጠሚያውን ደህንነት ይጠብቁ; Carefully tuck the wires into the junction box and secure the fixture canopy to the ceiling plate.
- የመስታወት ጥላን ጫን Attach the clear glass shade to the fixture body.
- አምፖሉን ጫን; Insert one E26 base bulb (not included) into the socket.
- ኃይልን ወደነበረበት መልስ በወረዳው ተላላፊው ላይ ኃይሉን መልሰው ያብሩት።
Image: Diagram illustrating recommended clearances and dimensions for pendant light installation over a kitchen island, including standard ceiling height and bar stool height.
Image: Illustration showing the pendant light can be installed on flat, sloped, or vaulted ceilings.
የአሠራር መመሪያዎች
Once installed, the pendant light operates via your standard wall switch. Ensure the correct bulb is installed for proper function.
አምፖል መስፈርቶች
- አምፖል አይነት፡ E26 base (standard screw-in)
- ከፍተኛው ዋትtage: 60 ዋ
- ተኳኋኝነት ከ LED ፣ CFL እና incandescent አምፖሎች ጋር ተኳሃኝ።
- ሊጠፋ የሚችል ተግባር፡ The fixture is dimmable when used with a compatible dimmable E26 bulb and an additional dimmable wall switch (bulb and switch are NOT included).
Image: Visual representation of the dimmable capability of the pendant light, showing varying brightness levels from 10% to 100% when paired with a dimmable switch and bulb.
አምፖሎችን መለወጥ
The wide-open shade diameter simplifies bulb replacement. Ensure power is off before changing bulbs. Allow the bulb to cool completely before touching it.
ጥገና
አዘውትሮ ማጽዳት የብርሃንዎን ገጽታ እና አፈፃፀም ለመጠበቅ ይረዳል።
- Cleaning the Glass Shade: Turn off power and allow the fixture to cool. Gently wipe the clear glass shade with a soft, damp ጨርቅ. ማጽጃውን ወይም መስታወቱን ሊጎዱ የሚችሉ ሻካራ ማጽጃዎችን ወይም ጠንካራ ኬሚካሎችን ያስወግዱ።
- Cleaning the Metal Finish: Wipe the black metal finish with a soft, dry cloth. Do not use polishes or cleaners that could scratch or alter the finish.
- ምርመራ፡- ደህንነታቸው የተጠበቀ መሆኖን ለማረጋገጥ በየጊዜው ሁሉንም ግንኙነቶች እና መጫኛ ሃርድዌር ይፈትሹ።
መላ መፈለግ
በፔንደንት መብራትዎ ላይ ችግሮች ካጋጠሙዎት የሚከተሉትን የተለመዱ ችግሮች እና መፍትሄዎች ይመልከቱ፡
| ችግር | ሊሆን የሚችል ምክንያት | መፍትሄ |
|---|---|---|
| መብራት አይበራም ፡፡ |
|
|
| ብርሃን ብልጭ ድርግም ይላል. |
|
|
| የመስታወት ጥላ ልቅ ነው። |
|
|
እነዚህን መፍትሄዎች ከሞከሩ በኋላ ችግሩ ከቀጠለ፣ እባክዎ የደንበኛ ድጋፍን ያግኙ።
ዝርዝሮች
| ባህሪ | ዝርዝር |
|---|---|
| የምርት ስም | AUTELO |
| የሞዴል ቁጥር | H7010 BK |
| ቀለም | ጥቁር |
| ቁሳቁስ | ብርጭቆ, ብረት |
| ቅጥ | የኢንዱስትሪ |
| የብርሃን ማቀፊያ ቅጽ | ተንጠልጣይ |
| የምርት ልኬቶች (L x W x H) | 12.2" x 8.27" x 7" |
| Glass Shade Dimensions (W x H) | 4.7" x 12.8" |
| Ceiling Plate Dimensions (Dia x H) | 4.7" x 1" |
| Max Adjustable Length | 53" |
| Max Hanging Length | 66" |
| አምፖል ቤዝ | E26 |
| ማክስ ዋትtage | 60 ዋ |
| ጥራዝtage | 110-120 tsልት |
| የብርሃን ምንጭ ዓይነት | LED compatible (Bulb not included) |
| የመጫኛ ዓይነት | ከፊል ፍሉሽ ማውንት (ፔንዳንት) |
| የቤት ውስጥ / የውጭ አጠቃቀም | የቤት ውስጥ |
| የእቃው ክብደት | 2.27 ፓውንድ |
| ማረጋገጫ | UL ተዘርዝሯል። |
Image: Detailed specifications including dimensions, recommended bulb types (E26, Max 60W), and compatibility with vaulted, flat, and sloped ceilings.
የዋስትና መረጃ
AUTELO provides a የ1-ዓመት ዋስትና for this product. If you encounter any quality issues within one year of purchase, please contact our customer support for repair or replacement.
Image: Graphic highlighting AUTELO's safety assurance, 1-year warranty, and professional after-sales service.
የደንበኛ ድጋፍ
AUTELO is committed to customer satisfaction. If you have any questions, concerns, or require assistance with your product, please do not hesitate to contact us. We offer comprehensive 24/7 online support.
For support, please refer to the contact information provided with your purchase or visit the official AUTELO store on Amazon: AUTELO Store.
የምርት ቪዲዮዎች
ቪዲዮ: አልቋልview of the AUTELO Glass Pendant Light (H7010) showcasing its design and different finishes.
Video: A demonstration of the AUTELO Glass Pendant Light H7010 Set, highlighting its features and application.
