COWSAR 4-Burner Gas Grill (Model G0141A) Instruction Manual

መግቢያ

This manual provides essential instructions for the safe assembly, operation, maintenance, and troubleshooting of your COWSAR 4-Burner Gas Grill, Model G0141A. Please read this manual thoroughly before using the grill and retain it for future reference.

The COWSAR 4-Burner Gas Grill is designed for outdoor use, featuring four high-performance stainless steel burners, a side burner, enameled cast iron grates, and a pull-out oil tray for convenient outdoor cooking.

የደህንነት መረጃ

ጉዳት ወይም የንብረት ጉዳትን ለመከላከል ሁል ጊዜ እነዚህን የደህንነት መመሪያዎች ይከተሉ፡-

• የውጪ አጠቃቀም ብቻ፡- ይህ ግሪል የተዘጋጀው ለውጪ አገልግሎት ብቻ ነው። በቤት ውስጥ ወይም በተዘጉ ቦታዎች ውስጥ አይሰሩ።
• ማጽዳት፡ Maintain adequate clearance from combustible materials.
• LP Gas Only: Use only liquid propane (LP) gas. Do not use natural gas.
• ፍተሻ ቼክ Perform a leak check on all gas connections before initial use and after any cylinder change.
• ክትትል፡ ጥቅም ላይ በሚውልበት ጊዜ ፍርግርግ ያለ ክትትል አይተዉት።
• ልጆች እና የቤት እንስሳት; ልጆችን እና የቤት እንስሳትን ሁል ጊዜ ከግሪል ያርቁ።
• ሞቃት ወለል; Grill surfaces become hot during operation. Use heat-resistant gloves and appropriate tools.
• የቅባት እሳቶች; In case of a grease fire, turn off the gas supply and keep the lid open. Do not use water.

ማዋቀር እና መሰብሰብ

The COWSAR 4-Burner Gas Grill requires assembly. It is recommended to have two people for assembly, though it can be done by one person. Ensure all parts are present before beginning.

ማሸግ እና ምርመራ

• ሁሉንም ንጥረ ነገሮች ከማሸጊያው ውስጥ በጥንቃቄ ያስወግዱ.
• Inspect all parts for damage. Contact customer support if any parts are damaged or missing.
• Keep all packaging materials until assembly is complete.

የመሰብሰቢያ ደረጃዎች

Follow the detailed instructions provided in the separate assembly guide included with your grill. Key steps include:

1. Assemble the main cart structure.
2. Attach the main grill body to the cart.
3. Install the side tables and side burner assembly.
4. Place the cooking grates and warming rack.
5. Connect the gas hose and regulator to the LP tank. Ensure all connections are tight.

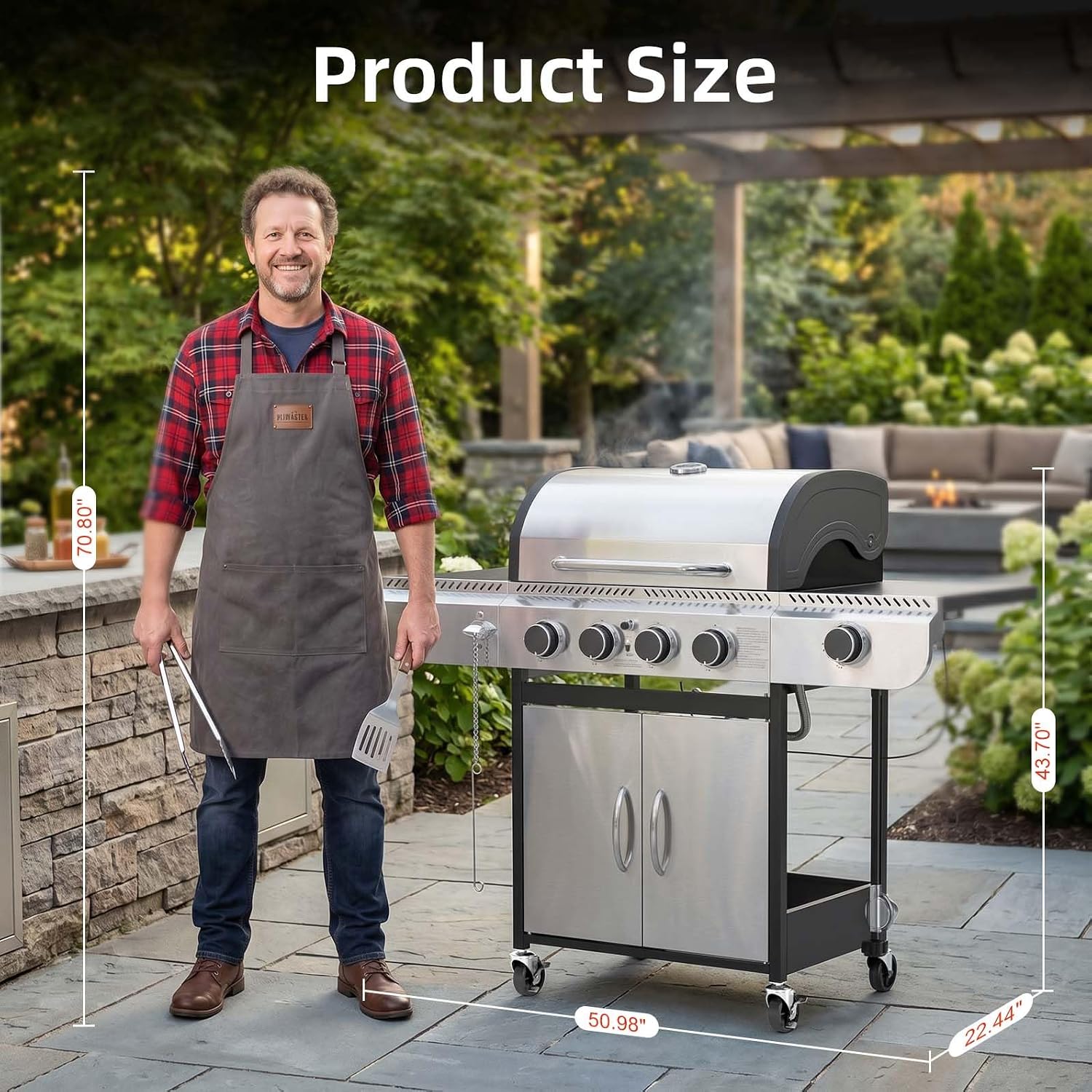

ምስል፡ ፊት ለፊት view of the COWSAR 4-Burner Gas Grill, showing the main cooking area and side burner.

Image: The COWSAR Gas Grill featuring the side burner and the storage cabinet below.

የአሠራር መመሪያዎች

የ LP ጋዝ ታንክን በማገናኘት ላይ

1. ሁሉም የማቃጠያ መቆጣጠሪያ ቁልፎች በ"ጠፍቷል" ቦታ ላይ መሆናቸውን ያረጋግጡ።
2. Connect the regulator to the LP tank valve. Hand-tighten firmly.
3. የኤልፒ ታንክ ቫልቭን ቀስ ብለው ይክፈቱ።
4. Perform a leak test (see Safety Information).

ዋና ማቃጠያዎችን ማብራት

1. የፍርግርግ ክዳን ይክፈቱ.
2. Turn one main burner control knob to the "HIGH" position.
3. የኤሌክትሮኒክስ ማቀጣጠያ አዝራሩን ተጭነው ይያዙት እና ማቃጠያው እስኪበራ ድረስ።
4. Once lit, release the igniter button.
5. If the burner does not light within 5 seconds, turn the knob to "OFF", wait 5 minutes, and repeat the process.
6. Repeat for other main burners as needed.

የጎን በርነር ማብራት

1. የጎን ማቃጠያውን ክዳን ይክፈቱ.
2. Turn the side burner control knob to the "HIGH" position.
3. የኤሌክትሮኒክስ ማቀጣጠያ አዝራሩን ተጭነው ይያዙት እና ማቃጠያው እስኪበራ ድረስ።
4. Once lit, release the igniter button.
5. If the burner does not light within 5 seconds, turn the knob to "OFF", wait 5 minutes, and repeat the process.

Preheating and Cooking

• Close the grill lid after lighting the burners.
• Allow the grill to preheat for 10-15 minutes on high heat. The built-in thermometer will indicate the temperature.
• Adjust burner controls to achieve desired cooking temperature.
• The 525 sq. in. cooking area, including a 386 sq. in. primary area and 139 sq. in. warming rack, allows for versatile cooking.

Image: The COWSAR Gas Grill in use, showing various foods cooking on the main grates and a pot on the side burner.

Image: Diagram illustrating the spacious cooking area of the COWSAR Gas Grill, including primary and warming rack dimensions.

ጥገና እና እንክብካቤ

Regular maintenance ensures optimal performance and extends the lifespan of your grill.

የምግብ ማብሰያዎችን ማጽዳት

• ከእያንዳንዱ አጠቃቀም በኋላ፣ ግሪቶቹ አሁንም ሞቃት ሲሆኑ፣ የምግብ ቅሪቶችን ለማስወገድ የጥብስ ብሩሽ ይጠቀሙ።
• The porcelain-coated cast iron grates are designed for easy cleaning and resistance to rust.

የቅባት አስተዳደር

• The grill features a pull-out grease tray and a large-capacity grease cup.
• Regularly check and empty the grease tray to prevent flare-ups and maintain cleanliness.
• The grease tray slides out from the back; ensure sufficient clearance for removal.

ምስል፡ መቀራረብ view of the pull-out oil drop collection tray and removable oil collection box for easy cleaning.

የውጭ ጽዳት

• Wipe stainless steel surfaces with a soft cloth and mild detergent.
• Avoid abrasive cleaners that can scratch the finish.
• Consider using a grill cover to protect the unit from weather elements when not in use.

መላ መፈለግ

ለጋራ ጉዳዮች እና መፍትሄዎቻቸው ይህንን ክፍል ይመልከቱ።

ማቃጠያ አለመብራት።

• የጋዝ አቅርቦትን ይፈትሹ; Ensure the LP tank valve is fully open and the tank is not empty.
• ማቀጣጠል፡ Verify the igniter is sparking. If not, check the battery (if applicable) or igniter wire connections.
• የጋዝ ፍሰት; Ensure there are no kinks in the gas hose. Perform a leak test.

ያልተስተካከለ ማሞቂያ

• ንጹህ ማቃጠያዎች; Clogged burner ports can cause uneven heat. Clean burners with a wire brush.
• Heat Diffusers: Ensure heat diffusers (flame tamers) are correctly positioned over the burners.

Excessive Flare-ups

• Clean Grease Tray: A full or dirty grease tray is a common cause. Clean it regularly.
• ስብን ይከርክሙ; ከመጋገርዎ በፊት ከመጠን በላይ ስብን ከስጋ ይቁረጡ ።
• ዝቅተኛ የሙቀት መጠን; Reduce burner heat if flare-ups persist.

ዝርዝሮች

ምስል: የኋላ view of the COWSAR Gas Grill, showing the open back for propane tank ventilation and grease tray access.

ዋስትና እና ድጋፍ

የዋስትና መረጃ

The product comes with a 1-year warranty. Please refer to the warranty card included with your purchase for full terms and conditions. Retain your proof of purchase for warranty claims.

የደንበኛ ድጋፍ

For technical assistance, missing parts, or warranty inquiries, please contact COWSAR customer support. Contact details can typically be found on the product packaging or the manufacturer's official webጣቢያ.
