Generic M81915-603 Motherboard User Manual

1. መግቢያ

This manual provides comprehensive instructions for the Generic M81915-603 motherboard, designed for compatibility with HP OMEN GT15 and GT14 desktop systems. It covers essential information regarding installation, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your system component.

The M81915-603 motherboard supports multiple motherboard IDs including 894A, M81915-003, and M75026-003. It is equipped with DDR4 memory slots, facilitating faster data transfer speeds and improved system responsiveness.

2. ምርት አብቅቷልview

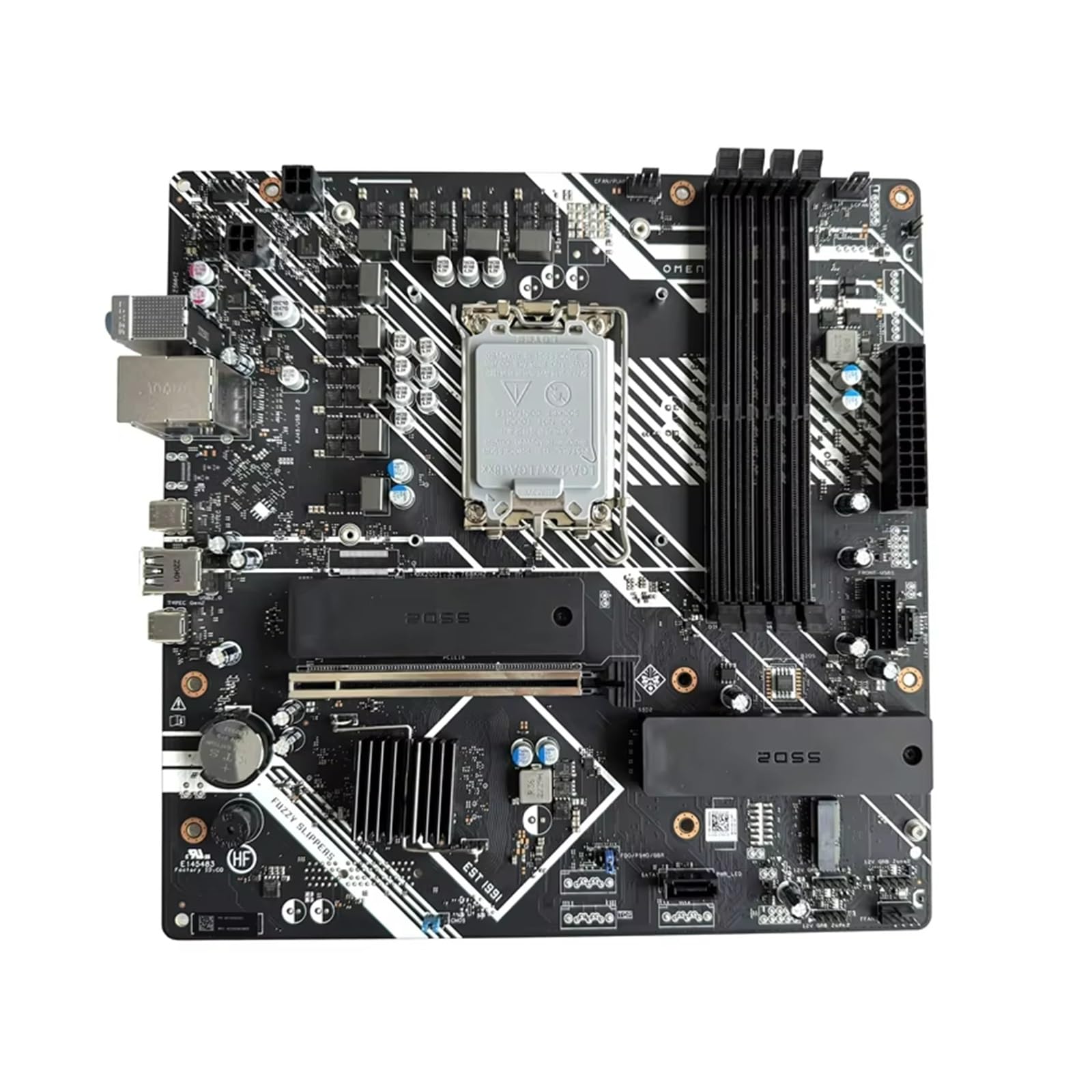

ምስል 1፡ ከላይ ወደ ታች view of the M81915-603 motherboard, illustrating the layout of the CPU socket, DDR4 memory slots, PCIe slots, and various I/O connectors.

The M81915-603 motherboard is engineered for durability and reliable performance. Key features include:

• ተኳኋኝነት Specifically designed for HP OMEN GT15 and GT14 motherboards.
• Motherboard ID Support: Compatible with IDs 894A, M81915-003, and M75026-003.
• DDR4 Memory Slot: Enhances data transfer speeds and system responsiveness.
• የላቀ አፈጻጸም፡ Built for durability to withstand daily use.
• አስተማማኝ አፈጻጸም፡ Designed for long-lasting reliability, reducing the need for frequent replacements.

3. ማዋቀር እና መጫን

Proper installation is crucial for the functionality and stability of your system. Please follow these general guidelines carefully. For specific system disassembly and reassembly instructions, refer to your HP OMEN GT15 or GT14 service manual.

1. አዘገጃጀት፥
   • Ensure your computer is powered off and disconnected from all power sources.
   • Discharge any static electricity by touching a grounded metal object before handling the motherboard.
   • አስፈላጊ መሳሪያዎችን ይሰብስቡ፡ የፊሊፕስ ራስ ዊንዲቨር፣ ፀረ-ስታቲክ የእጅ አንጓ ማሰሪያ (የሚመከር)።
2. Removing the Old Motherboard (if applicable):
   • Carefully disconnect all cables (power, data, front panel) from the existing motherboard.
   • Remove any expansion cards (GPU, sound card, etc.) and memory modules.
   • Unscrew the motherboard from the chassis standoffs and gently lift it out.
3. Installing the M81915-603 Motherboard:
   • Align the new motherboard with the standoffs in your HP OMEN GT15/GT14 chassis.
   • Secure the motherboard with the appropriate screws. Do not overtighten.
   • Install your CPU, CPU cooler, and DDR4 memory modules into their respective slots. Ensure proper seating.
   • Reconnect all power cables (24-pin ATX, 8-pin CPU), data cables (SATA), and front panel connectors (power switch, reset, USB, audio). Refer to your chassis manual for front panel header pinouts.
   • Install any expansion cards.
4. የመጀመሪያ ኃይል በርቷል፡
   • Before closing the chassis, connect a monitor, keyboard, and mouse.
   • Connect the power supply to an electrical outlet and power on the system.
   • Verify that the system POSTs (Power-On Self-Test) and displays video output.

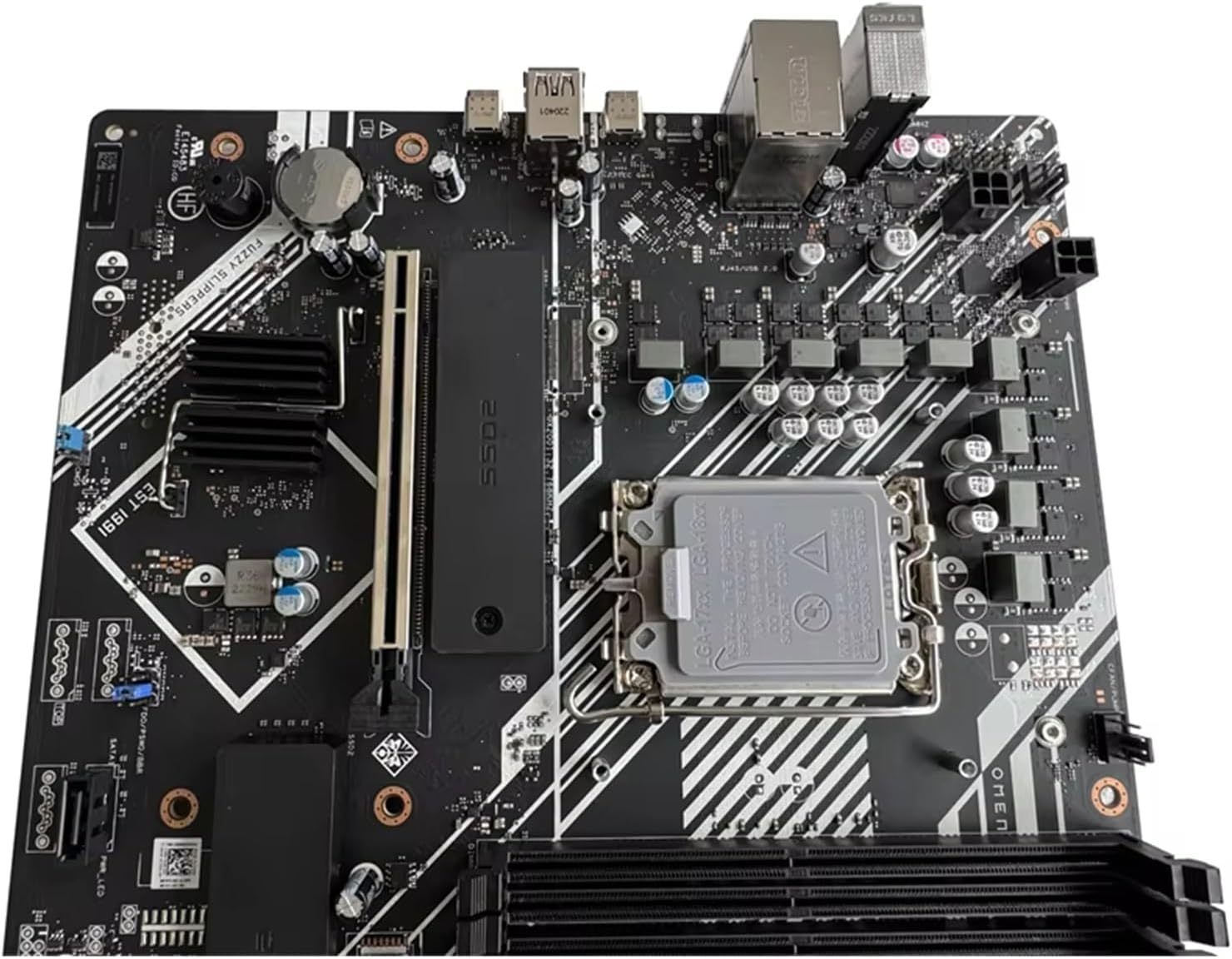

ምስል 2: ዝርዝር view of the CPU socket and adjacent DDR4 memory slots on the M81915-603 motherboard, crucial areas for component installation.

4. የአሠራር መመሪያዎች

Once the motherboard is correctly installed and the system is assembled, operating it involves standard computer usage. The motherboard acts as the central hub for all components.

• ማብራት/ማጥፋት፡ Use the power button on your computer case to turn the system on or off. For proper shutdown, always use the operating system's shutdown function.
• ባዮስ/UEFI መዳረሻ፡ To access the system's BIOS/UEFI settings (e.g., for boot order, system configuration), press the designated key (commonly Del, F2, F10, or F12) during the initial boot sequence. Refer to your HP OMEN system documentation for the exact key.
• የአሽከርካሪ ጭነት; After installing a new operating system or if you encounter device issues, ensure all necessary drivers for the motherboard's chipsets, audio, and network interfaces are installed. These are typically provided by HP or the chipset manufacturer.

5. ጥገና

Regular maintenance helps prolong the life of your motherboard and ensures stable system operation.

• አቧራ ማስወገድ; በየጊዜው ከእናትቦርዱ እና ከሌሎች የውስጥ ክፍሎች አቧራውን በተጨመቀ አየር ያጽዱ። ከማጽዳትዎ በፊት ስርዓቱ መብራቱን እና መሰኪያውን ነቅሎ ያረጋግጡ።
• የኬብል አስተዳደር Ensure internal cables are neatly routed to prevent obstruction of airflow, which can lead to overheating.
• የ BIOS/UEFI ዝመናዎች፡- የ HP ድጋፍን ያረጋግጡ website for BIOS/UEFI updates for your specific HP OMEN GT15/GT14 model. Updates can improve compatibility, stability, and performance. Follow update instructions carefully.
• የአካባቢ ሁኔታዎች; Operate the computer in a well-ventilated area, away from direct sunlight, excessive heat, humidity, and dust.

6. መላ መፈለግ

If you encounter issues with your system after installing the M81915-603 motherboard, consider the following common troubleshooting steps:

• ምንም ኃይል/ፖስት የለም፡
  • ሁሉም የኃይል ገመዶች (24-ፒን ATX፣ 8-ፒን ሲፒዩ) ከእናትቦርዱ እና ከኃይል አቅርቦቱ ጋር ደህንነቱ በተጠበቀ ሁኔታ መገናኘታቸውን ያረጋግጡ።
  • Ensure the CPU and memory modules are correctly seated.
  • ወደ ማዘርቦርድ የፊት ፓነል የኃይል መቀየሪያ ግንኙነትን ያረጋግጡ።
  • በተለያዩ ቦታዎች ላይ በአንድ የራም ዱላ ይሞክሩ።
• ምንም የቪዲዮ ውፅዓት የለም፡
  • Ensure the monitor is connected to the correct video output port (dedicated GPU or integrated graphics).
  • የግራፊክስ ካርዱን እንደገና ይጫኑ (ካለ)።
  • በተለየ ሞኒተር ወይም ገመድ ይሞክሩ።
• የስርዓት አለመረጋጋት/ብልሽቶች፡
  • Check for overheating. Ensure CPU cooler is properly installed and fans are working.
  • የተሳሳተ ራም ለመፈተሽ የማህደረ ትውስታ መመርመሪያ መሳሪያዎችን ያሂዱ።
  • ሁሉም አሽከርካሪዎች ወቅታዊ መሆናቸውን ያረጋግጡ።
• የፔሪፌራል ችግሮች (ዩኤስቢ፣ ኦዲዮ፣ አውታረ መረብ)፦
  • Verify that the respective drivers are installed and up to date.
  • Check physical connections of front panel headers or external devices.

Figure 3: Identification label on the motherboard, displaying critical model numbers such as M81915-003 and M81915-603, useful for troubleshooting and verification.

7. ዝርዝሮች

The following table outlines the key technical specifications for the M81915-603 motherboard component:

Note: Some specifications, such as "RAM Memory Maximum Size" and "Package Dimensions," appear to be inconsistent or placeholder values in the provided source data. Please refer to your specific HP OMEN GT15/GT14 system documentation for precise motherboard dimensions and maximum supported RAM capacity.

ምስል 4: የኋላ view of the M81915-603 motherboard, displaying the CPU backplate and various solder points on the PCB.

8. የዋስትና መረጃ

As this product is listed as "Generic," specific warranty terms may vary. It is recommended to contact the seller, Yang Pei Store, directly for detailed warranty information and return policies. Generally, new computer components come with a limited warranty against manufacturing defects.

እባክዎ ለማንኛውም የዋስትና ጥያቄዎች የግዢ ማረጋገጫዎን ያቆዩ።

9. ድጋፍ

For technical assistance, troubleshooting beyond this manual, or inquiries regarding your M81915-603 motherboard, please contact the seller or manufacturer.

• ሻጭ፡ Yang Pei Store
• የአማዞን ምርት ገጽ፡ https://www.amazon.com/dp/B0FL1LCVVD

For system-specific support related to your HP OMEN GT15 or GT14, please refer to HP's official support channels and documentation.
