Toolsempire Charcoal Smoker Instruction Manual

1. ጠቃሚ የደህንነት መረጃ

Please read all instructions carefully before assembling and operating your Toolsempire Charcoal Smoker. Failure to follow these instructions may result in property damage, personal injury, or death.

• የውጪ አጠቃቀም ብቻ፡- This smoker is designed for outdoor use only. Do not operate indoors or in enclosed areas.
• ማጽዳት፡ Maintain a minimum distance of 10 feet (3 meters) from combustible materials (e.g., wooden decks, fences, houses, dry leaves).
• ሞቃት ወለል; The smoker will become extremely hot during use. Always use heat-resistant gloves or mitts when handling hot components. Do not touch hot surfaces with bare hands.
• ልጆች እና የቤት እንስሳት; ልጆችን እና የቤት እንስሳትን በማንኛውም ጊዜ ከማጨስ ያርቁ።
• የተረጋጋ ወለል; Always place the smoker on a level, stable, non-combustible surface.
• ነዳጅ፡ Use only charcoal as fuel. Do not use gasoline, kerosene, or alcohol for lighting or relighting.
• የእሳት ማጥፊያ; Keep a fire extinguisher or a bucket of sand readily available in case of a grease fire.
• የአየር ማናፈሻ; Ensure proper ventilation during operation to prevent carbon monoxide buildup.

2. ምርት አብቅቷልview

The Toolsempire Vertical Charcoal Smoker is designed to provide an efficient and enjoyable outdoor smoking experience. Its robust metal construction and thoughtful features ensure stability, precise temperature control, and ampለተለያዩ ምግቦች የማብሰያ ቦታ።

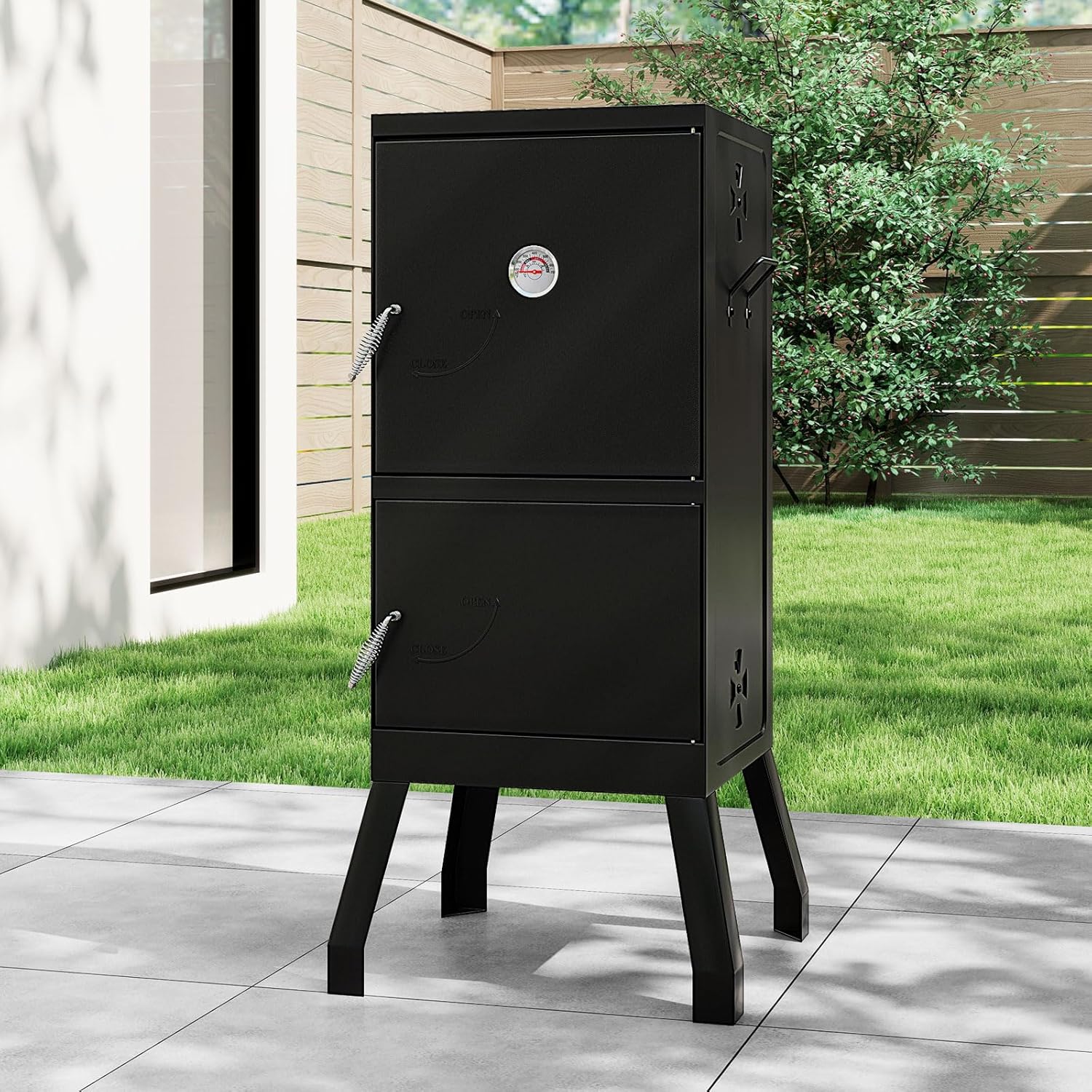

Image: The Toolsempire Charcoal Smoker, fully assembled and closed, positioned in a backyard environment.

Image: The Toolsempire Charcoal Smoker with its access doors open, revealing food being smoked on the internal grates.

3. የጥቅል ይዘቶች

Before assembly, ensure all components listed below are present and undamaged. If any parts are missing or damaged, please contact customer support.

• 1 x Outdoor Smoker Body
• 1 x Water Pan & Bracket
• 1 x Charcoal Pan & Bracket
• 2 x የማብሰያ ፍርግርግ
• 1 x መመሪያ መመሪያ

Image: An exploded diagram illustrating all components included in the package, such as the smoker body, cooking grates, water pan, charcoal pan, and their respective brackets.

4. የመሰብሰቢያ መመሪያዎች

Assembly of the Toolsempire Charcoal Smoker is designed to be straightforward. Follow these general steps to set up your smoker:

1. ክፍሎቹን ያራግፉ፡ ሁሉንም ክፍሎች ከማሸጊያው ላይ በጥንቃቄ ያስወግዱ እና ከጥቅሉ ይዘቶች ዝርዝር ጋር ያረጋግጡ።
2. እግሮችን አያይዝ; Securely attach the four legs to the base of the smoker body. Ensure all bolts are tightened for stability.
3. ቅንፎችን ጫን Insert the water pan bracket and charcoal pan bracket into their designated slots inside the smoker.
4. Place Pans: Position the charcoal pan onto its bracket at the bottom chamber, and the water pan onto its bracket in the middle chamber.
5. Insert Cooking Grates: Place the two cooking grates onto their respective supports within the smoking chambers.
6. Attach Handles and Doors: Ensure all handles are securely attached and the access doors close properly.

ምስል፡ ዝርዝር views highlighting key structural features: convenient side handles, secure lockable doors, sturdy internal bracket holders for pans and grates, and the robust four-leg support system.

5. የአሠራር መመሪያዎች

5.1. Loading Charcoal and Water

Proper loading of charcoal and water is crucial for optimal heat and smoke circulation.

• Charcoal Pan: Place charcoal in the charcoal pan located in the bottom chamber. This will generate direct heat and smoke when lit.
• የውሃ መጥበሻ; Fill the water pan with water (or other liquids like apple juice or beer for flavor) and place it on its bracket in the middle chamber. The water helps to stabilize temperature and prevent food from drying out.

Note: Charcoal and water supplies are not included with the smoker.

Image: A visual representation of how heat and smoke circulate inside the smoker, originating from the charcoal pan and passing over the water pan and cooking grates to ensure even cooking and flavor.

5.2. የሙቀት መቆጣጠሪያ

Achieving and maintaining the desired smoking temperature is key to successful results.

• አብሮገነብ ቴርሞስታት; Monitor the internal temperature of the smoker using the integrated thermostat on the front door.
• የሚስተካከሉ የአየር ማስገቢያዎች; Utilize the four adjustable air vents to fine-tune the airflow, which directly impacts the heat and smoke levels. Opening the vents increases airflow and temperature, while closing them reduces airflow and temperature.

ምስል፡ ዝርዝር view of the smoker's precision temperature control features, including the built-in thermostat for accurate readings and the four adjustable air vents for managing airflow.

5.3. Accessing Food and Fuel

The smoker features two separate access doors for convenience during operation.

• Dual Access Doors: Use the upper door to check on food on the cooking grates and the lower door to add more charcoal or water without significant heat loss from the main cooking chamber.
• ሊቆለፉ የሚችሉ በሮች; Both doors are lockable to prevent accidental openings and maintain consistent internal temperatures.
• የምግብ አዘገጃጀት; The two removable cooking grates provide ample space for various meats, vegetables, and seafood.

Image: The smoker with its doors open, showcasing the two removable cooking grates loaded with various foods like meats, vegetables, and seafood, demonstrating ample የማብሰያ ቦታ.

ጠቃሚ ማስታወሻ፡- When accessing the water pan, please do not pull the water pan bracket out more than 4 inches to ensure stability and prevent spillage.

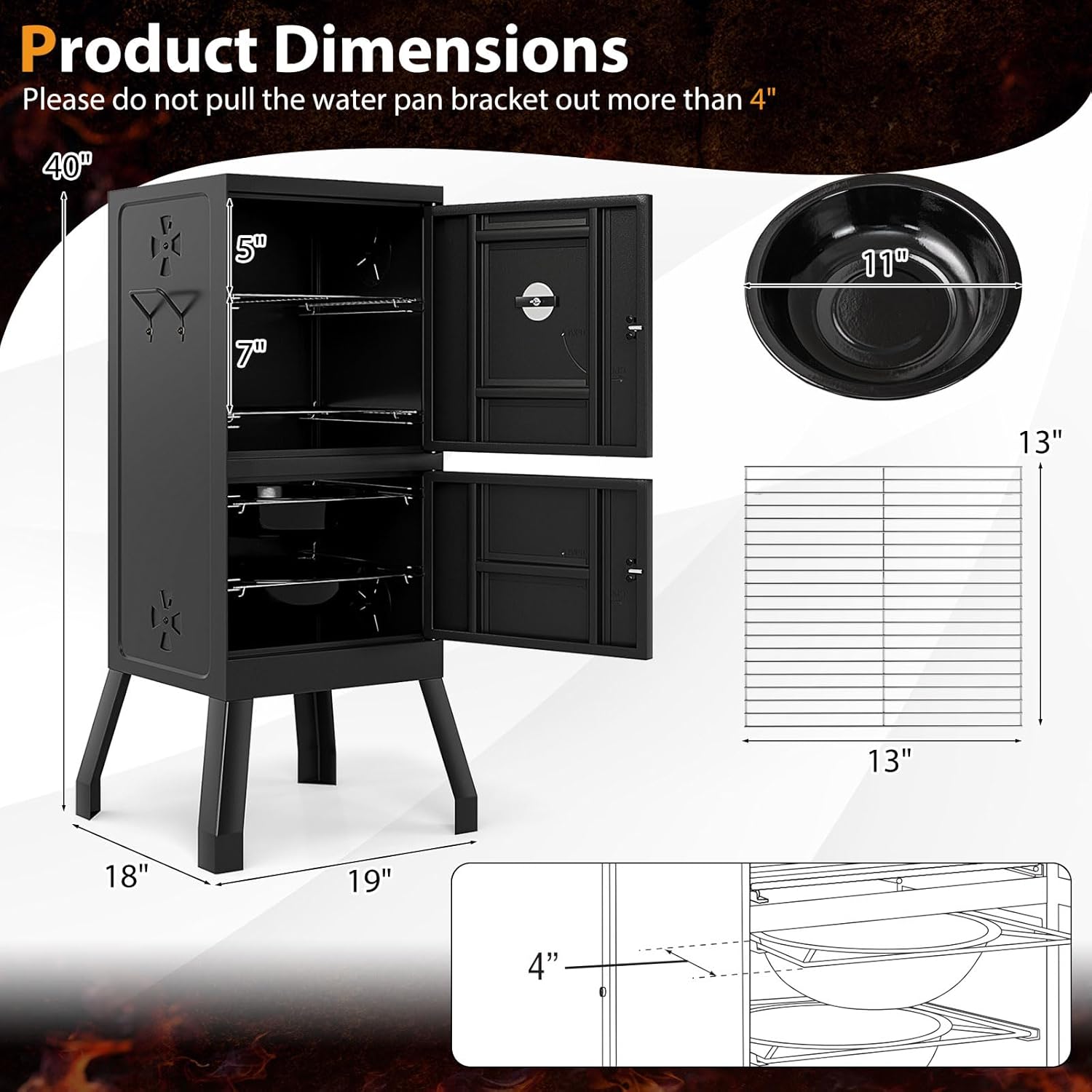

Image: A diagram detailing the product dimensions (19"D x 18"W x 40"H) and a crucial warning not to pull the water pan bracket out more than 4 inches.

6. እንክብካቤ እና ጥገና

6.1. ማጽዳት

Regular cleaning will extend the life of your smoker and ensure optimal performance.

• ከእያንዳንዱ አጠቃቀም በኋላ; Allow the smoker to cool completely. Remove the cooking grates, water pan, and charcoal pan.
• Grates and Pans: Clean cooking grates and pans with warm, soapy water and a brush. Rinse thoroughly and dry completely to prevent rust.
• የውስጥ፡ Wipe down the interior of the smoker body with a damp cloth. For stubborn grease, use a mild degreaser.
• ውጫዊ፡ ውጫዊውን በማስታወቂያ ያጽዱamp ጨርቅ. ማጠናቀቂያውን ሊያበላሹ ከሚችሉ ማጽጃ ማጽጃዎችን ያስወግዱ።

6.2. ማከማቻ

When not in use, store your smoker in a dry, protected area to prevent weather damage and prolong its lifespan. Consider using a weather-resistant cover.

7. መላ መፈለግ

አንዳንድ የተለመዱ ጉዳዮች እና ሊሆኑ የሚችሉ መፍትሄዎች እነኚሁና:

• Temperature Not Rising:
  • Ensure sufficient charcoal is loaded and properly lit.
  • Check that air vents are open to allow adequate airflow.
  • Verify that access doors are securely closed to prevent heat loss.
• Food Drying Out:
  • Ensure the water pan is filled with water or other liquid.
  • Monitor cooking time and temperature to avoid overcooking.
• ከመጠን በላይ ማጨስ;
  • Adjust air vents to reduce airflow, which can decrease smoke production.
  • Ensure wood chips (if used) are properly soaked and not smoldering excessively.

8. የምርት ዝርዝሮች

9. ዋስትና እና የደንበኛ ድጋፍ

For any issues or inquiries regarding your Toolsempire Charcoal Smoker, please contact our customer support team. We are committed to assisting you.

የዋስትና መግለጫ፡- ማንኛውም ጉዳይ፣ እባክዎ ያነጋግሩን።

እንዲሁም መጎብኘት ይችላሉ Toolsempire Store ለበለጠ መረጃ እና ምርቶች.
