VECYS Water Dispenser Filter Instruction Manual

1. መግቢያ

This manual provides essential instructions for the installation, operation, maintenance, and troubleshooting of your VECYS Water Dispenser Filter set. This filter set is designed for use with VECYS water cooler models FY1185 and FY605 to ensure clean and purified drinking water.

2. ምርት አብቅቷልview

The VECYS Water Dispenser Filter set consists of four stages: PP (Polypropylene), CTO (Carbon Block), UF (Ultrafiltration), and a final CTO (Carbon Block) filter. These filters work in sequence to reduce sediment, chlorine, odors, and other impurities from your drinking water.

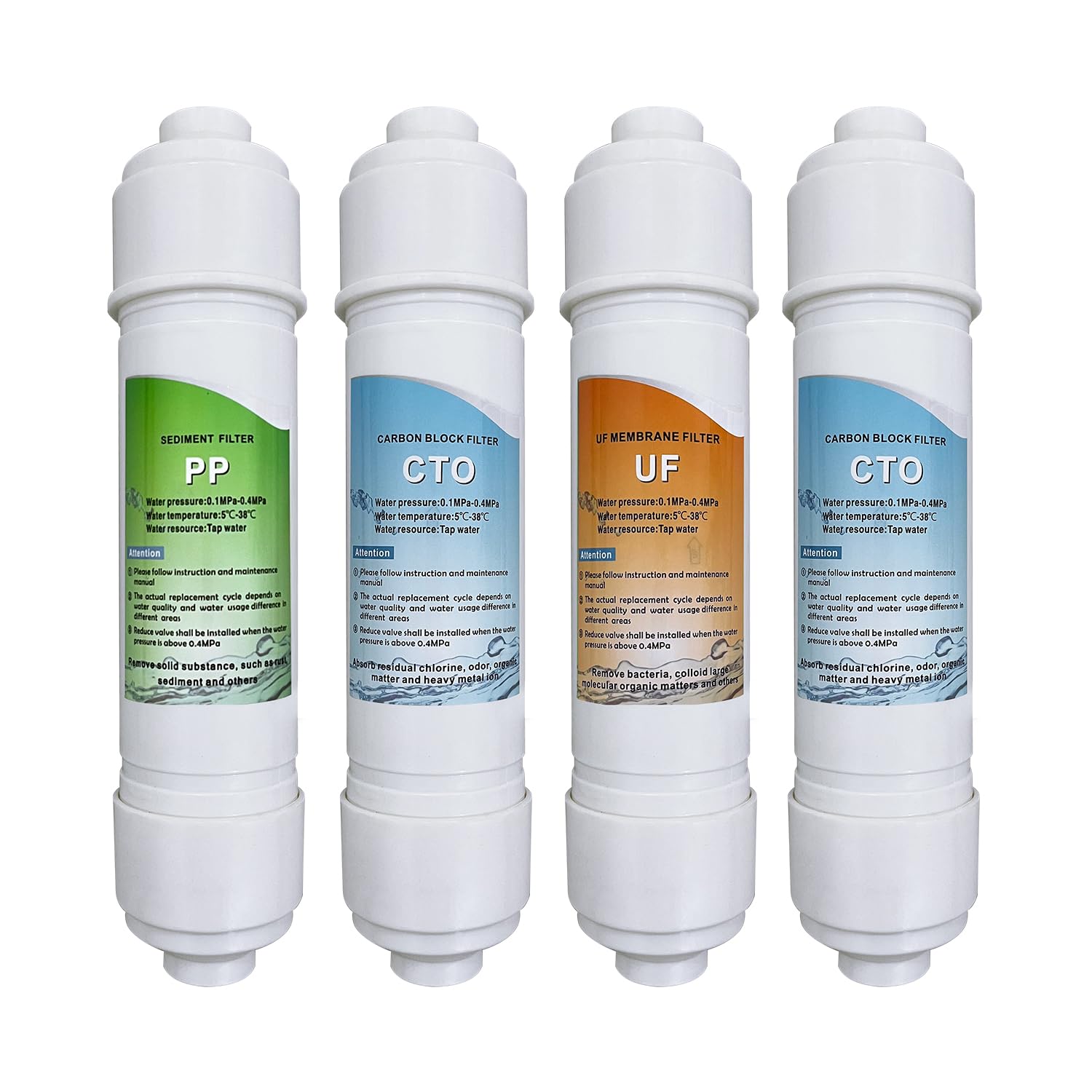

Image 1: The VECYS Water Dispenser Filter Set, including PP, CTO, UF, and CTO filters.

ተኳኋኝነት

This filter set is specifically designed for VECYS water cooler models FY1185 and FY605.

3. ማዋቀር እና መጫን

Before installing new filters, ensure your water dispenser is turned off and disconnected from the power supply. It is recommended to flush new filters before first use to remove any carbon fines.

Filter Replacement Procedure (General Guide)

1. የውሃ አቅርቦትን ያጥፉ; Locate the water inlet valve to your dispenser and turn it off.
2. የመንፈስ ጭንቀት ስርዓት; Dispense water from the cold and hot taps to release any pressure in the system.
3. የመዳረሻ ማጣሪያ ክፍል Open the filter access panel on your VECYS water dispenser.
4. የድሮ ማጣሪያዎችን ያስወግዱ; Depending on your model, filters may twist off or unclip. Follow the specific instructions for your FY1185 or FY605 model. Be prepared for some water spillage.
5. አዲስ ማጣሪያዎችን ይጫኑ፡- Insert the new filters into their designated slots. Ensure they are securely twisted or clipped into place. Pay attention to the order of the filters (PP, CTO, UF, CTO).
6. የውሃ አቅርቦትን ወደነበረበት መመለስ; Slowly turn the water inlet valve back on. Check for leaks around the new filters.
7. የማጽጃ ማጣሪያዎች፡ Dispense several liters of water through the cold tap to flush out air and carbon fines. Continue until the water runs clear and free of air bubbles.
8. ኃይልን እንደገና ማገናኘት; Plug the water dispenser back into the power outlet.

4. የአሠራር መመሪያዎች

Once the filters are installed and flushed, your VECYS water dispenser is ready for use. The filters work continuously to purify the water as it passes through the system.

General Water Dispenser Operation

• አብራ፡ Ensure the dispenser is plugged in and the power switch (usually located at the back) is turned on.
• ሙቅ ውሃ; For hot water, activate the hot water function (if applicable) and press the hot water dispense button. Many models include a child safety lock for hot water.
• ቀዝቃዛ ውሃ; For cold water, activate the cold water function (if applicable) and press the cold water dispense button.
• Normal/Ambient Water: Some models offer ambient temperature water, dispensed by pressing the corresponding button.

5. ጥገና

የማጣሪያ መተኪያ መርሃ ግብር

For optimal performance and water quality, it is recommended to replace your VECYS water dispenser filters every 6 months or after dispensing approximately 1,500 gallons of water, whichever comes first. Refer to your water dispenser's specific manual for any additional filter replacement indicators or schedules.

የውሃ ማከፋፈያውን ማጽዳት

Regular cleaning of your water dispenser is essential to maintain hygiene and prolong its lifespan. Follow the cleaning instructions provided in your VECYS water cooler's user manual.

6. መላ መፈለግ

If you encounter issues with your water dispenser after filter installation, consider the following common troubleshooting steps:

• የዘገየ የውሃ ፍሰት; This can indicate clogged filters. Ensure filters are installed correctly and not past their service life. If new, ensure they were properly flushed.
• ያልተለመደ ጣዕም ወይም ሽታ; If new filters, flush them thoroughly. If old filters, they may be exhausted and require replacement.
• መፍሰስ፡ Check that filters are securely seated and tightened. Inspect O-rings for damage. Ensure all connections to the water dispenser are tight.
• የውሃ ማከፋፈያ የለም; Verify the water supply valve is fully open and the dispenser is powered on. Check for kinks in the water line.

For persistent issues, consult the full user manual for your VECYS water cooler model (FY1185 or FY605) or contact VECYS customer support.

7. ዝርዝሮች

8. ዋስትና እና ድጋፍ

For information regarding product warranty, returns, or technical support, please refer to the documentation included with your VECYS water dispenser or visit the official VECYS website. Specific warranty details for the filter set may be available through the retailer or manufacturer.
