Panasonic DVD-RV30

Panasonic DVD-RV30 DVD Player Instruction Manual

Model: DVD-RV30

1. መግቢያ

This manual provides essential information for the proper setup, operation, and maintenance of your Panasonic DVD-RV30 DVD Player. Please read these instructions thoroughly before using the unit to ensure optimal performance and safety.

2. የደህንነት መረጃ

To reduce the risk of electric shock, do not remove the cover. Refer servicing to qualified service personnel. Do not expose this appliance to rain or moisture. Ensure proper ventilation and avoid placing the unit in enclosed spaces or near heat sources. Disconnect the power cord from the wall outlet if the unit will not be used for an extended period.

3. በሳጥኑ ውስጥ ያለው

ጥቅሉን ሲከፍቱ፣ ሁሉም እቃዎች መገኘታቸውን ያረጋግጡ፡-

  • Panasonic DVD-RV30 DVD Player Unit
  • የርቀት መቆጣጠሪያ
  • የኃይል ገመድ
  • Audio/Video Cables (RCA type, typically yellow for video, red/white for audio)

4. ማዋቀር

4.1 Connecting to a Television and Audio System

The DVD-RV30 offers various connection options for video and audio output. Choose the connection type that best suits your television and audio receiver.

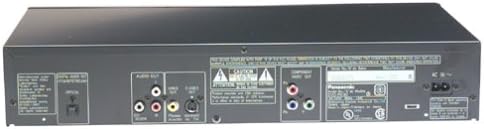

Rear panel of the Panasonic DVD-RV30 DVD Player showing various input and output ports.

Image: Rear panel of the Panasonic DVD-RV30 DVD Player. This view displays the power input, optical digital audio output, RCA audio/video outputs, S-video output, and component video outputs (Y, Pb, Pr).

የቪዲዮ ግንኙነቶች

  • የክፍለ አካል ቪዲዮ ውፅዓት (Y፣ Pb፣ Pr)፦ For the highest quality analog video connection. Connect these three cables to the corresponding component video input jacks on your television.
  • የኤስ-ቪዲዮ ውፅዓት፡- Provides a higher quality video signal than composite video. Connect an S-video cable from the player to your television's S-video input.
  • የተቀናጀ የቪዲዮ ውፅዓት (ቢጫ አርሲኤ)፦ A standard video connection. Connect a yellow RCA cable from the player to the video input on your television.

የድምጽ ግንኙነቶች፡-

  • ኦፕቲካል ዲጂታል ኦዲዮ ውፅዓት፡- For connecting to a home theater receiver with a digital optical input, providing multi-channel audio (Dolby Digital, DTS).
  • Analog Audio Output (Red/White RCA): For connecting to your television or stereo receiver's analog audio inputs.

4.2 የመነሻ ኃይል በርቷል

  1. After making all necessary connections, plug the power cord into an AC outlet.
  2. የሚለውን ይጫኑ ኃይል መሣሪያውን ለማብራት ከፊት ፓነል ወይም በርቀት መቆጣጠሪያው ላይ ያለውን ቁልፍ ይጫኑ።
  3. Select the correct input on your television (e.g., Video 1, Component, S-Video) to view the DVD player's output.

5. የአሠራር መመሪያዎች

5.1 መሰረታዊ የዲስክ መልሶ ማጫወት

  1. የሚለውን ይጫኑ ክፈት/ዝጋ የዲስክ ትሪውን ለመክፈት አዝራር።
  2. የዲቪዲ ዲስክን በመሳቢያው ላይ ያስቀምጡት፤ የመለያው ጎን ወደ ላይ ይታይ።
  3. የሚለውን ይጫኑ ክፈት/ዝጋ ትሪውን ለመዝጋት እንደገና አዝራር።
  4. ተጫዋቹ በራስ-ሰር መልሶ ማጫወት ይጀምራል ወይም የዲስክ ምናሌውን ያሳያል።
  5. የሚለውን ተጠቀም ተጫወት, ለአፍታ አቁም, እና ተወ buttons on the remote control for playback control.

5.2 የላቁ ባህሪያት

  • Advanced Virtual Surround Sound (VSS): This feature simulates a surround sound experience using only two speakers. Activate VSS through the audio settings menu to enhance your listening experience without a multi-speaker setup.
  • 2-Channel Plus Bass: When combined with Advanced VSS, this feature optimizes audio output for a two-speaker system, providing enhanced bass response for a more immersive virtual theater experience.
  • የውይይት ማሻሻያ፡- For Dolby Digital 5.1 discs, this feature boosts the volume of the center channel by 6 dB, making dialogue clearer and preventing it from being overshadowed by other audio elements.
  • ሲኒማ ሞድ- This selectable video mode enhances picture quality by reducing glare, softening resolution, and improving visibility of details in dark scenes, aiming for a more film-like visual experience.
  • High-Speed Smooth-Motion Scan: The player supports five speeds for crystal-clear forward and reverse scanning, up to 100 times normal speed, allowing for quick navigation through disc content.

6. የርቀት መቆጣጠሪያ

The included remote control provides full functionality for operating your DVD-RV30 player. Familiarize yourself with the button layout for convenient control.

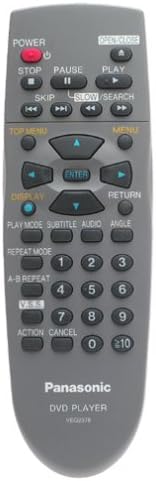

Panasonic DVD Player remote control with various buttons for power, playback, menu navigation, and numerical input.

Image: Panasonic DVD-RV30 Remote Control. Key buttons include POWER, OPEN/CLOSE, PLAY, PAUSE, STOP, SKIP, SLOW/SEARCH, TOP MENU, MENU, DISPLAY, RETURN, navigation arrows, ENTER, SUBTITLE, AUDIO, ANGLE, REPEAT MODE, A-B REPEAT, and numerical input buttons.

የቁልፍ የርቀት ተግባራት፡

  • ኃይል፡- ማጫወቻውን ያበራል ወይም ያጠፋል.
  • ክፈት/ዝጋ፡ የዲስክ ትሪውን ይከፍታል እና ይዘጋል.
  • አጫውት/ለአፍታ አቁም/አቁም፦ የዲስክ መልሶ ማጫወትን ይቆጣጠራል።
  • ዝለል (<< / >>): ወደ ቀዳሚው ወይም ወደሚቀጥለው ትራክ/ምዕራፍ ይዘላል።
  • SLOW/SEARCH: Controls slow motion playback and high-speed search.
  • TOP MENU/MENU: Accesses the disc's main menu or title menu.
  • Navigation Arrows (Up/Down/Left/Right) & ENTER: ለምናሌ አሰሳ እና ምርጫ ጥቅም ላይ ይውላል።
  • ማሳያ Shows disc information on screen.
  • SUBTITLE/AUDIO/ANGLE: Selects subtitle tracks, audio tracks, or camera angles (if available on the disc).
  • የቁጥር አዝራሮች (0-9): Direct input for track/chapter numbers.

7. ጥገና

  • ክፍሉን ማጽዳት; Wipe the exterior of the player with a soft, dry cloth. Do not use liquid or aerosol cleaners, as they may damage the finish.
  • ዲስኮችን ማጽዳት፦ Handle discs by their edges. If a disc is dirty, wipe it gently with a soft, lint-free cloth from the center outwards. Do not use solvents or abrasive cleaners.
  • የአየር ማናፈሻ; Ensure the player has adequate ventilation. Do not block ventilation openings on the top or sides of the unit.

8. መላ መፈለግ

If you experience issues with your DVD-RV30, consult the following common solutions before seeking service.

ችግርሊሆን የሚችል ምክንያት / መፍትሄ
ኃይል የለም
  • Ensure the power cord is securely plugged into the unit and a working AC outlet.
  • Press the POWER button on the unit or remote.
ስዕል የለም
  • Verify video cables (Composite, S-Video, Component) are securely connected to both the player and the TV.
  • Select the correct video input on your television (e.g., Video 1, Component, S-Video).
  • Check TV settings for proper input selection.
ድምጽ የለም
  • Ensure audio cables (RCA L/R, Optical Digital) are securely connected.
  • Check the volume level on your TV or audio receiver.
  • Verify the correct audio input is selected on your TV or receiver.
  • If using digital audio, ensure your receiver is set to the correct digital input and decoding mode.
Disc Does Not Play
  • ዲስኩ በትክክል ከስያሜው ጎን ወደ ላይ መጨመሩን ያረጋግጡ።
  • Check if the disc is dirty or scratched; clean it if necessary.
  • Verify the disc format is compatible with the player (DVD-Video).
  • Some discs may have regional coding; ensure the disc's region code matches the player's.
የርቀት መቆጣጠሪያ አይሰራም
  • አስፈላጊ ከሆነ ባትሪዎቹን ይፈትሹ እና ይተኩ.
  • Ensure there are no obstructions between the remote and the player's remote sensor.
  • የርቀት መቆጣጠሪያውን በቀጥታ በተጫዋቹ ላይ ያመልክቱ።

9. ዝርዝሮች

  • ሞዴል፡ DVD-RV30
  • የምርት ስም፡ Panasonic
  • መጠኖች (ወ x D x H) በግምት 17 x 10.74 x 3.2 ኢንች (43.2 x 27.3 x 8.1 ሴሜ)
  • ክብደት፡ በግምት 6.4 ፓውንድ (2.9 ኪ.ግ)
  • የቪዲዮ ውፅዓት፡- Component Video (Y, Pb, Pr), S-Video, Composite Video
  • የድምጽ ውፅዓት፡- Optical Digital Audio, Analog Audio (RCA L/R)
  • ኦዲዮ DAC፡ 24-ቢት፣ 96 kHz
  • ልዩ ባህሪያት፡ Advanced Virtual Surround Sound (VSS), 2-Channel Plus Bass, Dialogue Enhancement, Cinema Mode, High-Speed Smooth-Motion Scan
  • የኃይል ፍጆታ; Energy Star compliant (reduced power in standby mode)

10. ዋስትና እና ድጋፍ

This Panasonic DVD-RV30 DVD Player comes with a limited warranty:

  • ክፍሎች፡ 1 አመት
  • የጉልበት ሥራ; 90 ቀናት

For technical support, service inquiries, or to obtain replacement parts, please contact Panasonic customer service. Keep your purchase receipt as proof of purchase for warranty claims.

Note: Warranty terms may vary by region. Refer to the warranty card included with your product for specific details.
