Claber Rainjet 91217 Adjustable In-Line Dripper Instruction Manual

1. ምርት አብቅቷልview

The Claber Rainjet 91217 is an adjustable in-line dripper designed for precise and efficient watering of plants. This device allows users to regulate the water flow from 0 to 6 liters per hour, adapting to the specific needs of different plants and soil types. It is ideal for use in drip irrigation systems, particularly in greenhouses, hanging baskets, and planters, ensuring calibrated watering.

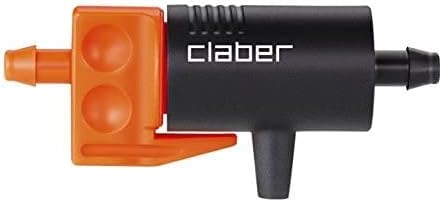

Image 1.1: The Claber Rainjet 91217 adjustable in-line dripper. This image shows the main component of the dripper, featuring its black body and orange adjustment mechanism.

2. የደህንነት መረጃ

• Always ensure water supply is turned off before installing or performing maintenance on the drippers.
• Do not use the drippers with water temperatures exceeding 40°C (104°F).
• የማነቆ አደጋዎችን ለመከላከል ትናንሽ አካላትን ከልጆች ያርቁ።
• የውሃ ፍሳሽን እና ፍሳሽን ለመከላከል ሁሉም ግንኙነቶች ደህንነታቸው የተጠበቀ መሆናቸውን ያረጋግጡtage.
• Avoid using harsh chemicals or abrasive materials for cleaning, as this may damage the plastic components.

3. የጥቅል ይዘቶች

Each package of Claber Rainjet 91217 drippers typically contains:

• Adjustable In-Line Drippers (quantity may vary by pack, commonly 10 units)

Image 3.1: Packaging of Claber Rainjet 91217 drippers. This image displays a blister pack containing multiple drippers, indicating they are sold in sets.

4. ማዋቀር እና መጫን

The Claber Rainjet 91217 drippers are designed for easy integration into a 1/4" (4-6mm) drip irrigation line. Follow these steps for proper installation:

1. ቱቦውን ያዘጋጁ; Cut your 1/4" (4-6mm) irrigation tubing at the desired location where you want to install the dripper. Ensure the cut is clean and straight.
2. Insert the Dripper (Step 1): Take one end of the cut tubing and firmly push it onto the inlet barb of the dripper (the side with the orange adjustment mechanism). Ensure it is fully seated to prevent leaks.


Image 4.1: First step of installation. This diagram illustrates pushing the 1/4" tubing onto one side of the dripper.

3. Insert the Dripper (Step 2): Take the other end of the cut tubing and firmly push it onto the outlet barb of the dripper (the side opposite the orange mechanism). Again, ensure a tight fit.

Image 4.2: Second step of installation. This diagram shows the dripper fully integrated into the 1/4" tubing line.
4. Multiple Drippers: For longer lines or multiple plants, you can install several drippers in series along the same 1/4" tubing. Space them according to your plant layout and watering needs.


Image 4.3: Multiple drippers in an irrigation line. This illustration demonstrates how several drippers can be connected sequentially along a single tubing run, with water dripping from each.

5. ደህንነቱ የተጠበቀ አቀማመጥ፡ Position the dripper near the base of the plant or in the desired watering zone. You may use support stakes (not included) to hold the tubing and dripper in place if necessary.

5. የአሠራር መመሪያዎች

The Claber Rainjet 91217 dripper features an adjustable flow rate to customize watering for individual plants. The flow can be adjusted from 0 to 6 liters per hour.

1. የውሃ አቅርቦትን ያብሩ; Once all drippers are installed, slowly turn on the main water supply to your irrigation system.
2. የፍሰት መጠንን አስተካክል፡ Locate the orange adjustment mechanism on the dripper. Gently rotate this part to increase or decrease the water flow.
   • Rotate clockwise to decrease flow or shut off.
   • Rotate counter-clockwise to increase flow.
   The dripper offers approximately 10 distinct adjustment modes, allowing for fine-tuning of the water output. Observe the drip rate to achieve the desired watering level for each plant.
3. Monitor and Fine-Tune: After initial adjustment, monitor your plants and soil moisture levels over a few days. Re-adjust the drippers as needed to ensure optimal watering, especially considering plant growth, weather conditions, and soil type.

Note: The optimal operating pressure for these drippers is typically around 1 BAR (14.5 PSI) to achieve the specified flow rates.

6. ጥገና

Regular maintenance ensures the longevity and efficient operation of your Claber Rainjet 91217 drippers.

• ክሎጎችን ያረጋግጡ፡ Periodically inspect drippers for any blockages caused by sediment, mineral deposits (calcium), or debris. If a dripper is not emitting water or has reduced flow, it may be clogged.
• ማጽዳት፡ To clean a clogged dripper, turn off the water supply. Gently remove the dripper from the tubing. You can try flushing it with clean water or carefully disassembling the adjustable orange part to clear any obstructions. Reassemble carefully.
• ቱቦዎችን ይፈትሹ; Check the 1/4" tubing for kinks, damage, or leaks. Repair or replace damaged sections as needed.
• ክረምት ማድረግ፡ In regions with freezing temperatures, it is recommended to drain your irrigation system and remove drippers to prevent damage from freezing water. Store them in a dry, protected area.

7. መላ መፈለግ

8. ዝርዝሮች

9. ዋስትና እና ድጋፍ

For specific warranty information and customer support, please refer to the documentation included with your purchase or visit the official Claber webጣቢያ. ለዋስትና ጥያቄዎች የግዢ ማረጋገጫዎን ያስቀምጡ።

አምራች፡ Claber
