DEWALT DW3194 7-1/4" 40-Tooth Carbide Circular Saw Blade Instruction Manual

1. ምርት አብቅቷልview

The DEWALT DW3194 is a 7-1/4 inch circular saw blade featuring 40 carbide teeth, designed for precision wood cutting. This blade incorporates exclusive plate technology for smoother cuts and an anti-kickback design to enhance impact resistance and prolong blade life. The teeth are ground and sharpened to reduce cutting force, ensuring efficient operation.

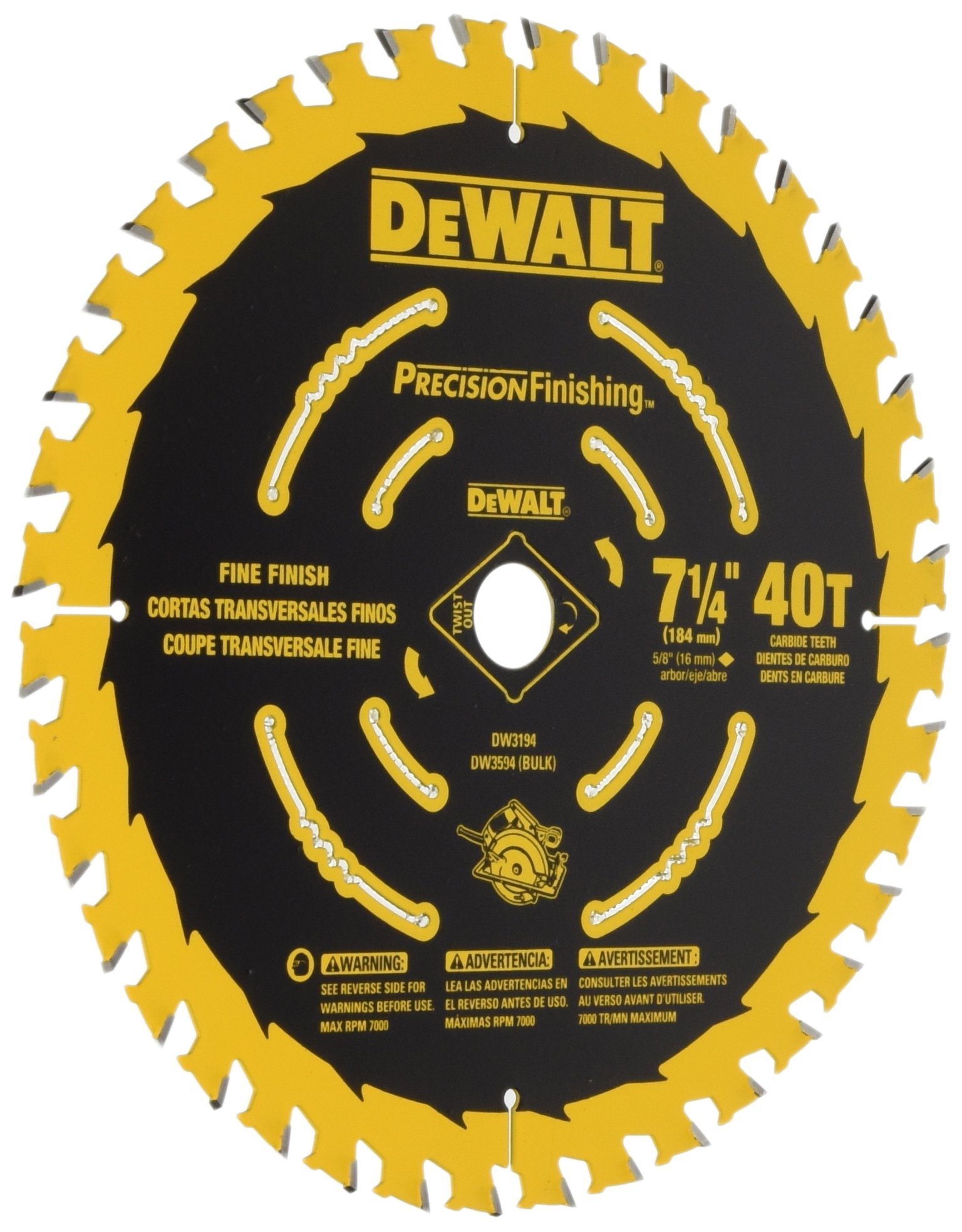

Image 1.1: The DEWALT DW3194 7-1/4 inch 40-tooth carbide circular saw blade. This image displays the full blade, highlighting its design and the DEWALT branding.

2. የደህንነት መረጃ

Always prioritize safety when working with power tools and saw blades. Failure to follow these instructions may result in serious injury.

• የደህንነት መነፅሮችን፣ የመስማት ችሎታን እና ጓንትን ጨምሮ ሁል ጊዜ ተገቢውን የግል መከላከያ መሳሪያ (PPE) ይልበሱ።
• Ensure the saw is unplugged or the battery is removed before installing or removing the blade.
• Verify that the blade is correctly installed and securely fastened before operation.
• Never operate a damaged or dull blade. Replace it immediately.
• Keep hands and body clear of the blade's path during operation.
• Ensure the workpiece is properly secured to prevent movement during cutting.

3. ማዋቀር እና መጫን

Proper installation is crucial for safe and effective operation of your DEWALT DW3194 saw blade.

3.1 Preparing Your Saw

1. Disconnect the saw from its power source.
2. Ensure the saw's blade guard is in good working condition and moves freely.
3. Clean any sawdust or debris from the blade arbor and flanges.

3.2 Installing the Blade

1. Locate the arbor nut and loosen it using the appropriate wrench (usually provided with your saw).
2. Remove the outer blade flange and the old blade, if present.
3. Position the DEWALT DW3194 blade onto the arbor, ensuring the teeth are oriented to cut in the correct direction (usually indicated by an arrow on the blade and saw).
4. Replace the outer blade flange and tighten the arbor nut securely. Do not overtighten.
5. ምላጩ በነጻነት እንዲሽከረከር እና በትክክል እንዲቀመጥ ለማድረግ በእጅ ያሽከርክሩት።

4. የአሠራር መመሪያዎች

The DEWALT DW3194 blade is designed for cutting wood. Follow these guidelines for optimal performance and safety.

4.1 General Cutting Tips

• Always allow the saw to reach full speed before beginning a cut.
• Apply steady, consistent pressure. Avoid forcing the blade through the material.
• Ensure the workpiece is fully supported throughout the cut to prevent pinching or kickback.
• For best results, use a fence or guide to maintain a straight cut.
• This 40-tooth blade is ideal for general-purpose wood cutting, offering a balance between speed and finish.

Image 4.1: Illustration of the blade's impact-resistant design. This image highlights the robust construction of the carbide tips, which are reinforced by the anti-kickback design for durability during use.

Image 4.2: Visual representation of the blade's reduced vibration technology. This image illustrates how the blade's design contributes to a smoother cutting experience by minimizing vibration.

5. ጥገና እና እንክብካቤ

Proper maintenance extends the life of your DEWALT DW3194 saw blade and ensures consistent performance.

• ማጽዳት፡ Regularly clean the blade to remove pitch and resin buildup. Use a specialized blade cleaner and a stiff brush. Avoid abrasive materials.
• ምርመራ፡- Before each use, inspect the blade for bent, chipped, or missing teeth. Check for cracks in the blade body. Do not use a damaged blade.
• መሳል፡ While carbide teeth offer long life, they will eventually dull. Have the blade professionally sharpened by a qualified service center. Do not attempt to sharpen carbide teeth yourself unless you have the proper tools and expertise.
• ማከማቻ፡ Store the blade in a dry, protected area to prevent rust and damage to the teeth. Use the original packaging or a blade storage case.

6. መላ መፈለግ

If you encounter issues with your DEWALT DW3194 saw blade, consider the following common problems and solutions:

• Poor Cut Quality (Rough or Chipped Edges):
  Possible Causes: Dull blade, incorrect blade for material, excessive feed rate, loose workpiece.
  Solutions: Sharpen or replace blade, ensure proper blade selection, reduce feed rate, secure workpiece.
• Blade Burning Wood:
  Possible Causes: Dull blade, pitch buildup, incorrect blade for material, slow feed rate.
  Solutions: Clean or sharpen blade, ensure proper blade selection, increase feed rate slightly.
• ከመጠን በላይ ንዝረት ወይም ጫጫታ;
  Possible Causes: Loose blade, bent blade, damaged arbor, worn saw bearings.
  Solutions: Check blade installation, inspect blade for damage, consult saw manual for arbor/bearing issues.
• የመልስ ምት፡-
  Possible Causes: Improper workpiece support, forcing the cut, dull blade, incorrect blade for application.
  Solutions: Ensure proper support, use steady feed rate, replace dull blade, use appropriate blade.

7. ዝርዝሮች

Detailed specifications for the DEWALT DW3194 saw blade:

8. ዋስትና እና ድጋፍ

DEWALT products are manufactured to high-quality standards. For specific warranty information, please refer to the warranty card included with your purchase or visit the official DEWALT website. For technical support or service, contact DEWALT customer service through their official channels.

የመስመር ላይ መርጃዎች፡- For additional information, product registration, and service center locations, please visit the official DEWALT webጣቢያ.
