DB Electrical 410-44135 Starter Instruction Manual

1. መግቢያ

This manual provides essential information for the safe and correct installation, operation, and maintenance of your DB Electrical 410-44135 Starter. Please read these instructions thoroughly before attempting any installation or service. Retain this manual for future reference.

2. የደህንነት መረጃ

ጉዳትን ወይም ጉዳትን ለመከላከል ሁል ጊዜ የሚከተሉትን የደህንነት ጥንቃቄዎች ይከተሉ።

• Disconnect the vehicle's battery before beginning any work on the electrical system to prevent electrical shock or short circuits.
• የደህንነት መነጽሮችን እና ጓንቶችን ጨምሮ ተገቢውን የግል መከላከያ መሳሪያ (PPE) ይልበሱ።
• Ensure the vehicle is on a stable, level surface and properly supported if lifted.
• ለተወሰኑ ሂደቶች እና የማሽከርከር ዝርዝሮች የተሽከርካሪዎን የአገልግሎት መመሪያ ይመልከቱ።
• ልጆችን እና ያልተፈቀዱ ሰራተኞችን ከስራ ቦታ ያርቁ።
• ይህ ምርት በካሊፎርኒያ ግዛት ካንሰር፣ የልደት ጉድለቶች ወይም ሌሎች የመራቢያ ጉዳቶችን እንደሚያስከትሉ የሚታወቁ ኬሚካሎችን ይዟል (የፕሮፖዚሽን 65 ማስጠንቀቂያ)። በጥንቃቄ ይያዙ እና ከተያዙ በኋላ እጅዎን ይታጠቡ።

3. ምርት አብቅቷልview

The DB Electrical 410-44135 is an aftermarket starter designed to meet OEM specifications for various applications. It is a 12-volt, 9-tooth, 1.2 KW Direct Drive (DD) starter with clockwise rotation.

3.1. ቁልፍ አካላት

• ሶሎኖይድ Engages the starter drive and supplies power to the motor.
• ሞተር፡ Provides rotational force to crank the engine.
• Drive Gear (Pinion): Engages with the engine's flywheel to start the engine.
• የመጫኛ Flange: Secures the starter to the engine block.

3.2. Visual Reference

ምስል 1: ጎን view of the DB Electrical 410-44135 Starter, showing the solenoid, motor, and mounting points.

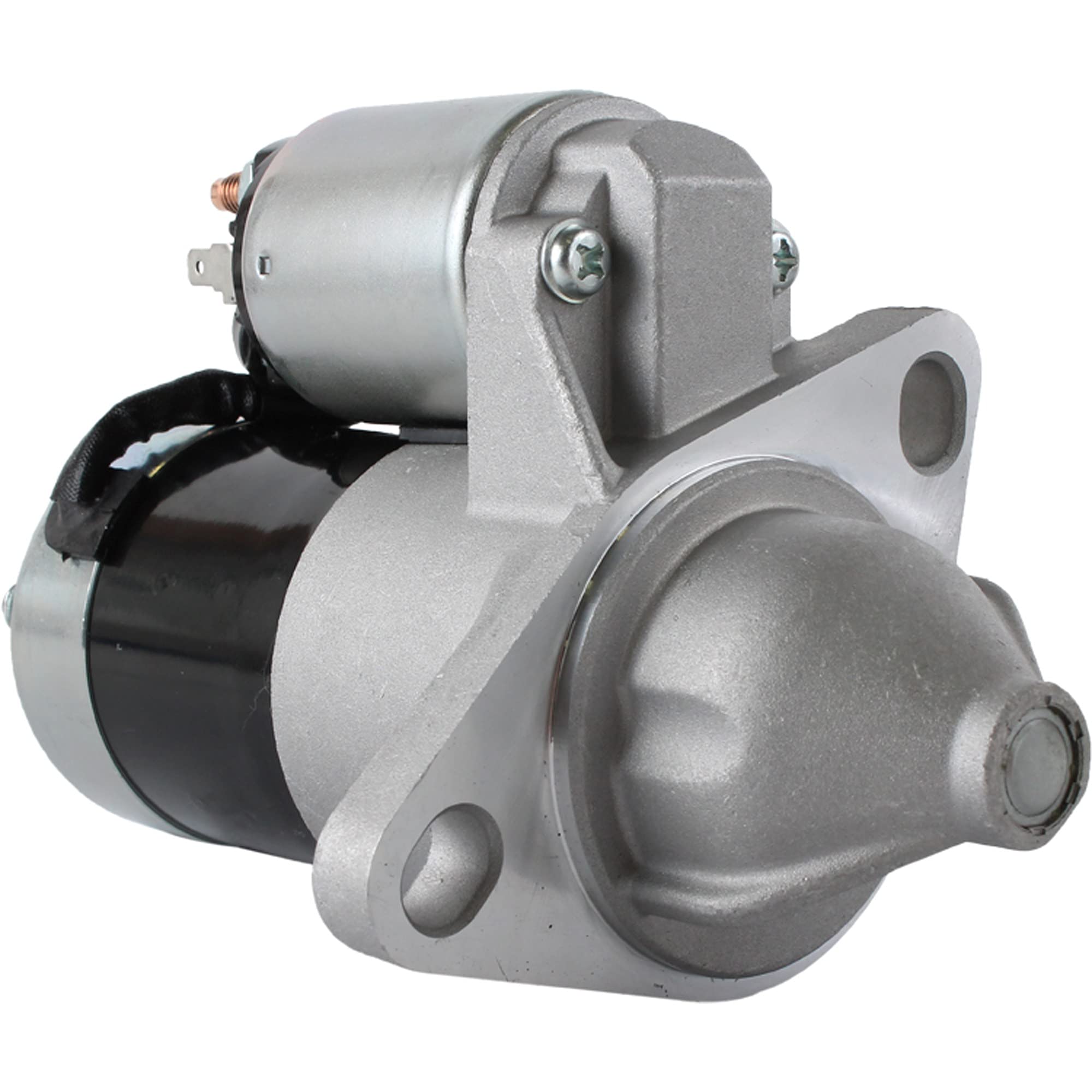

ምስል 2: ማዕዘን view of the starter, highlighting the electrical terminals and rear casing.

4. ተኳሃኝነት

This starter is compatible with the following vehicle models. Always verify the part fits your specific application before installation.

• Atlas: 404፣1995 (1999፣XNUMX-XNUMX፣XNUMX)
• ፎርድ፡ 1310 (1983-1986), 1510 (1983-1986), CL25 (1983-1986)
• New Holland: 1310 (1983-1986), 1510 (1983-1986), CL25 (1983-1986)

የኦሪጂናል ዕቃ አምራች ቁጥሮችን ይተካል፦

• API Marine: 17031
• Arrowhead: SHI0101, 243-12120, S114-381N
• Cargo: 110552
• Ford: SBA18508-6321
• Hitachi: S114-381
• Ishikawajima: 18508-6321
• ጄ & መ: 410-44135
• JCB: 02/630500
• ሌስተር፡ 17300
• New Holland: SBA18508-6321
• O&K (Orenstein & Koppel): 1447724
• ONAN: 185-2166
• PEL JOB: E185086321
• Perkins: 185086321
• Schaeff INC: 5568656721, 5999999561
• Weidemann: 5747001132, 5747001133, 5747086321
• Zeppelin: 9SX9766

5. መጫን

Installation of the starter requires mechanical aptitude and basic tools. If you are unsure about any step, consult a qualified mechanic.

1. ተሽከርካሪውን ያዘጋጁ;
   • ተሽከርካሪው መጥፋቱን እና የመኪና ማቆሚያ ብሬክ መያዙን ያረጋግጡ።
   • Disconnect the negative (-) battery cable first, then the positive (+) battery cable.
   • If necessary, lift the vehicle using a jack and secure it with jack stands.
2. Locate the Old Starter: Identify the existing starter motor on your vehicle. It is typically mounted to the engine block near the transmission.
3. ሽቦውን ያላቅቁ፡
   • Carefully disconnect the main battery cable from the starter solenoid terminal.
   • Disconnect the smaller ignition switch wire from the solenoid. Note the position of each wire for correct reinstallation.
4. የመጫኛ ቦልቶችን ያስወግዱ; Remove the bolts securing the old starter to the engine block. Support the starter as you remove the last bolt to prevent it from falling.
5. የድሮ አስጀማሪን ያስወግዱ; Carefully maneuver and remove the old starter from its mounting location.
6. አዲስ ጀማሪን ጫን፡-
   • Position the new DB Electrical 410-44135 starter into place.
   • Align the mounting holes and hand-tighten the mounting bolts.
   • Once aligned, tighten the mounting bolts to the manufacturer's specified torque (refer to your vehicle's service manual).
7. ሽቦን እንደገና ማገናኘት;
   • Reconnect the ignition switch wire to the appropriate solenoid terminal.
   • Reconnect the main battery cable to the main solenoid terminal. Ensure all connections are clean and secure.
8. ባትሪውን እንደገና ማገናኘት; አወንታዊውን (+) የባትሪ ገመዱን፣ ከዚያም አሉታዊውን (-) የባትሪ ገመዱን እንደገና ያገናኙ።
9. የሙከራ ተግባር Attempt to start the vehicle. Listen for proper starter engagement and engine cranking.

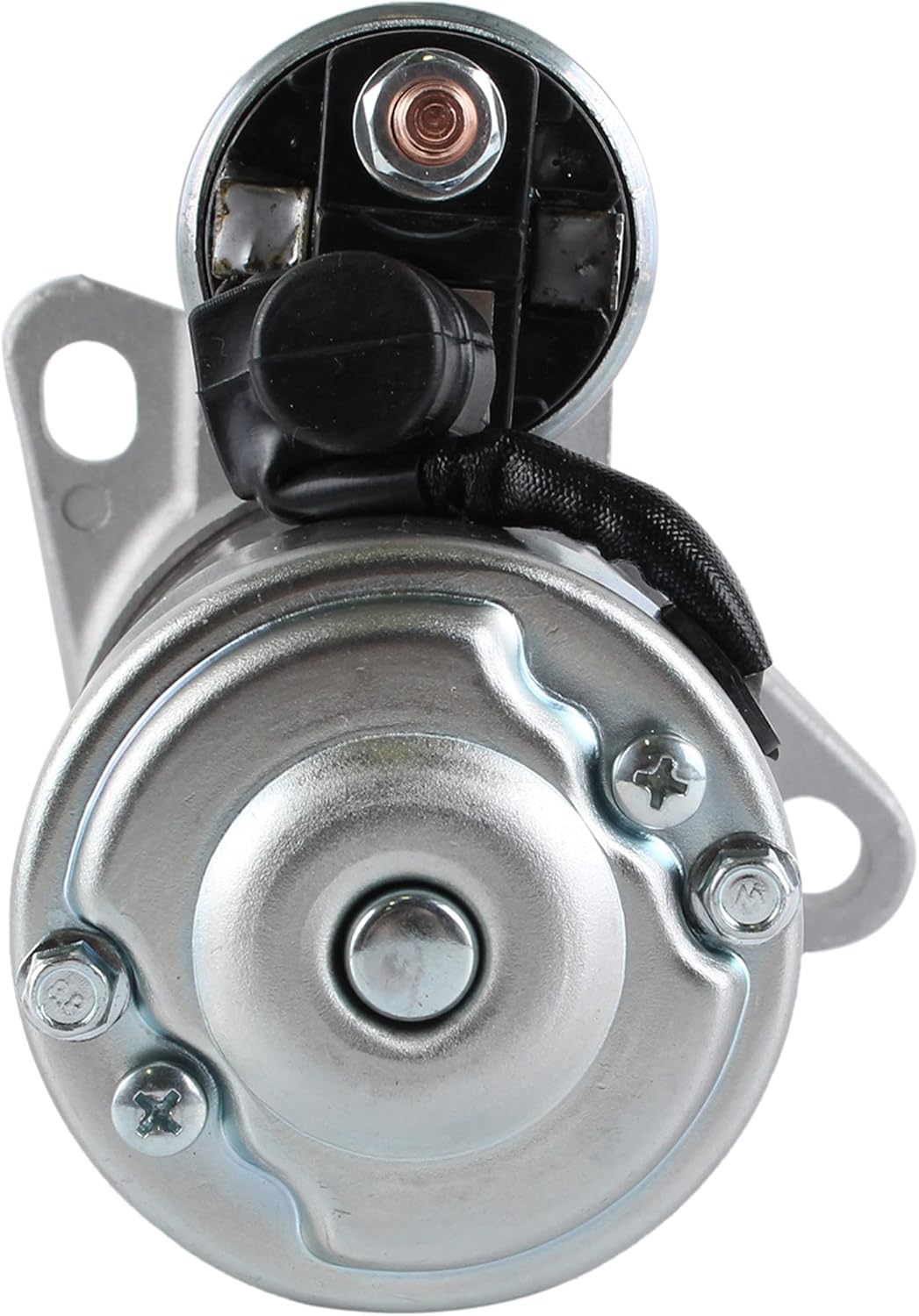

ምስል 3: የኋላ view of the starter, showing the electrical connection points for the battery cable and ignition wire.

ምስል 4: የፊት view of the starter, displaying the drive gear (pinion) which engages with the engine's flywheel.

6. ኦፕሬሽን

The starter motor is an integral part of your vehicle's starting system. When the ignition key is turned to the "START" position, electrical current flows to the starter solenoid. The solenoid then engages the starter drive gear with the engine's flywheel and simultaneously sends power to the starter motor. The motor rotates the flywheel, cranking the engine until it starts. Once the engine starts, the ignition key should be released, and the starter disengages from the flywheel.

Avoid prolonged cranking (more than 10-15 seconds) to prevent overheating the starter. Allow a brief cool-down period between starting attempts.

7. ጥገና

The DB Electrical 410-44135 Starter is designed for minimal maintenance. However, periodic checks can help ensure its longevity and reliable operation:

• ግንኙነቶችን ይፈትሹ; Periodically check all electrical connections to the starter for corrosion or looseness. Clean any corrosion and tighten connections as needed.
• የባትሪ ሁኔታ፡- Ensure your vehicle's battery is in good condition and fully charged. A weak battery can put excessive strain on the starter.
• የኬብል ታማኝነት፡ Inspect battery cables and starter cables for fraying, cracks, or damage. Replace damaged cables promptly.

8. መላ መፈለግ

በጀማሪዎ ላይ ችግሮች ካጋጠሙዎት የሚከተሉትን የተለመዱ ችግሮችን እና መፍትሄዎችን ያስቡ።

የመላ ፍለጋ እርምጃዎች ችግሩን ካልፈቱት፣ ባለሙያ መካኒክን ማማከር ይመከራል።

9. ዝርዝሮች

10. ዋስትና እና ድጋፍ

DB Electrical provides a የ 1 ዓመት ዋስትና on this product from the date of purchase. This warranty covers defects in materials and workmanship under normal use. If the product fails within one year of your order, DB Electrical will replace it.

For warranty claims, technical assistance, or support, please contact DB Electrical customer service. Refer to your purchase documentation for contact details or visit the official DB Electrical webጣቢያ.

Note: The warranty does not cover damage caused by improper installation, misuse, neglect, accident, or unauthorized modification.
