NVX VUBT2 Universal Waterproof Bluetooth Audio Receiver Instruction Manual

1. ምርት አብቅቷልview

The NVX VUBT2 is a universal waterproof Bluetooth 4.0 audio receiver designed to add wireless audio streaming capabilities to various vehicles and vessels, including marine, boats, cars, and ATVs. It features a robust, water-resistant design and provides high-quality stereo audio output.

ቁልፍ ባህሪዎች

• ብሉቱዝ ፕሮfile: A2DP (ከፍተኛ ጥራት፣ ስቴሪዮ ኦዲዮ)
• Bluetooth Core Specification: Version 4.0 with aptX
• ውጤቶች፡ One Stereo Pair, Low-Level RCA Plugs
• የውጤት ቁtage: 2 ቪ አርኤም
• የጩኸት ሬሾ ምልክት፡ 93 dB (20 Hz - 20 kHz)
• የውሃ መቋቋም; IPX67 rated for protection against dust and water immersion.
• ግንኙነት፡ 3.5 ሚሜ የድምጽ ግብዓት/ውፅዓት።
• የርቀት ማብራት; Amplifier remote turn-on feature.

2. የደህንነት መረጃ

Please read all instructions carefully before installation and use. Failure to follow these instructions may result in product damage, property damage, or personal injury.

• Ensure the vehicle's power is disconnected before installation to prevent electrical shorts.
• Use appropriate wiring gauges and fuses as recommended.
• Mount the device securely to prevent movement during operation.
• Do not expose the device to extreme temperatures or direct flame.
• While the device is waterproof (IPX67), ensure all connections are properly sealed and protected from direct water exposure to maintain integrity.

3. የጥቅል ይዘቶች

ሁሉም እቃዎች በጥቅልዎ ውስጥ መኖራቸውን ያረጋግጡ፡-

• NVX VUBT2 Bluetooth Audio Receiver
• Power/Ground/Remote Wiring Harness with In-line Fuse
• ከ 3.5 ሚሜ እስከ RCA ኦዲዮ ገመድ
• Mounting Hardware (screws or adhesive pads)

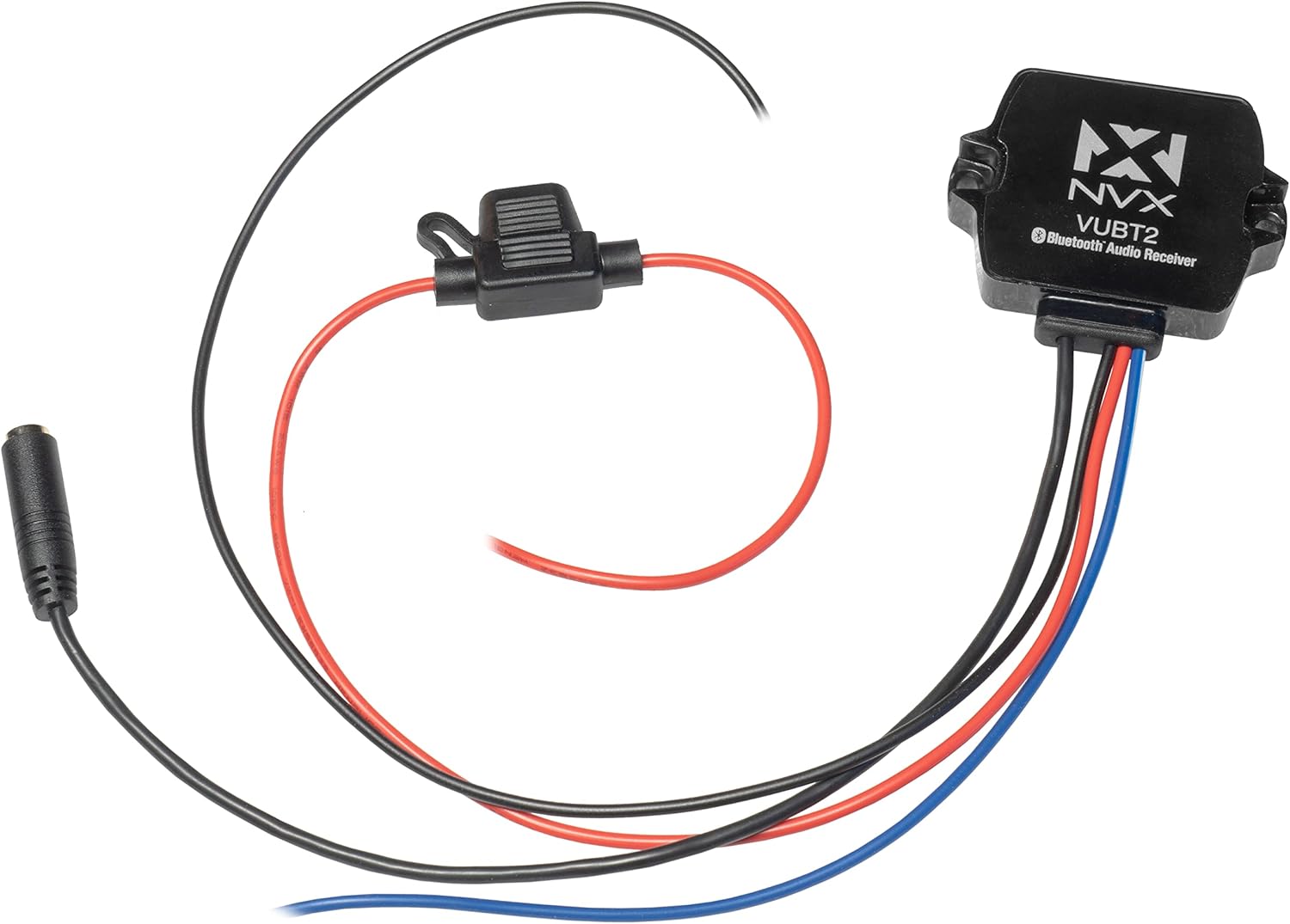

Image: The NVX VUBT2 Bluetooth Audio Receiver shown with its power/ground/remote wiring harness, in-line fuse, and 3.5mm to RCA audio cable.

4. ማዋቀር እና መጫን

4.1 የወልና ግንኙነቶች

The VUBT2 requires power, ground, and a remote turn-on connection. It outputs audio via RCA connections.

1. ኃይል (ቀይ ሽቦ): Connect the red wire to a switched 12V power source. This can be the accessory wire from your vehicle's ignition or a dedicated switch. The in-line fuse should be installed close to the power source.
2. መሬት (ጥቁር ሽቦ): Connect the black wire to a solid chassis ground point. Ensure a clean, secure connection for optimal performance.
3. የርቀት ማብራት (ሰማያዊ ሽቦ): Connect the blue wire to the remote turn-on input of your amplifier or other audio components. This will power on the VUBT2 when your system is activated.
4. Audio Output (3.5mm to RCA): Connect the 3.5mm jack from the VUBT2 to the included 3.5mm to RCA cable. Then, connect the RCA plugs (red for right, white for left) to the audio input of your ampሊፋይር ወይም የጭንቅላት ክፍል.

Image: The NVX VUBT2 Bluetooth receiver wired to an amplifier, demonstrating the remote turn-on and RCA audio connections.

Image: Close-up of the 3.5mm audio output connected to RCA cables, ready for connection to an audio system.

4.2 መጫን

The compact design of the VUBT2 allows for flexible mounting options. It can be mounted using screws through its integrated tabs or with adhesive pads (if included).

• Choose a location that is dry, secure, and allows for proper cable routing.
• Ensure the mounting surface is clean and flat if using adhesive.
• The device is IPX67 rated, making it suitable for exposed locations, but protecting connections is still recommended.

Image: The underside of the NVX VUBT2 unit, displaying the 3M adhesive backing for secure mounting in various applications.

5. የአሠራር መመሪያዎች

5.1 የብሉቱዝ ማጣመር

1. Ensure the VUBT2 is powered on (your audio system is active).
2. በሞባይል መሳሪያዎ (ስማርትፎን፣ ታብሌት፣ ወዘተ) ላይ ወደ ብሉቱዝ ቅንብሮች ይሂዱ።
3. Scan for available Bluetooth devices. The VUBT2 will appear as "NVX VUBT2" or similar.
4. Select the VUBT2 to pair. A confirmation tone or LED indicator may signal a successful connection.
5. Once paired, your device will typically reconnect automatically when in range and the VUBT2 is powered on.

5.2 የድምጽ መልሶ ማጫወት

After successful pairing, you can stream audio from your mobile device to your connected audio system. Control playback (play/pause, skip tracks, volume) directly from your paired device.

Image: A smartphone screen displaying music controls, illustrating how users can manage audio playback through the NVX VUBT2.

6. ጥገና

The NVX VUBT2 is designed for durability and minimal maintenance. Follow these guidelines to ensure longevity:

• ማጽዳት፡ ለስላሳ ይጠቀሙ, መamp የቤቱን ውጫዊ ክፍል ለማጽዳት ጨርቅ። ጠበኛ ኬሚካሎችን ወይም ሻካራ ማጽጃዎችን ያስወግዱ።
• የውሃ መቋቋም; While IPX67 rated, avoid prolonged submersion or high-pressure water jets directly on the unit or its connections. Regularly inspect wiring and connections for any signs of wear or damage that could compromise water resistance.
• ግንኙነቶች፡ ሁሉንም የገመድ ግንኙነቶች ደህንነታቸው የተጠበቀ እና ከዝገት የፀዱ መሆናቸውን ለማረጋገጥ በየጊዜው ያረጋግጡ።

Image: The NVX VUBT2 unit covered in water droplets, illustrating its IPX67 water-resistance rating for use in challenging environments.

7. መላ መፈለግ

8. ዝርዝሮች

9. የዋስትና መረጃ

NVX products are designed and manufactured to the highest quality standards. For specific warranty details, including coverage period and terms, please refer to the warranty card included with your product or visit the official NVX webጣቢያ. ለዋስትና ጥያቄዎች የግዢ ማረጋገጫዎን ያስቀምጡ።

10. የደንበኛ ድጋፍ

If you encounter any issues or have questions regarding your NVX VUBT2 Bluetooth Audio Receiver that are not covered in this manual, please contact NVX customer support for assistance.

• የመስመር ላይ ድጋፍ Visit the official NVX webበተደጋጋሚ የሚጠየቁ ጥያቄዎች፣ የድጋፍ ግብዓቶች እና የእውቂያ መረጃ ጣቢያ።
• የሻጭ ድጋፍ; For purchase-related inquiries, contact the seller directly.
