Alera Mini Tower Ceramic Heater (Model ALE-HECT17) User Manual

1. ጠቃሚ የደህንነት መመሪያዎች

Please read this entire instruction manual before using your Alera Mini Tower Ceramic Heater. Failure to follow these instructions may result in fire, electric shock, injury, or property damage. Keep this manual for future reference.

• የኤሌክትሪክ ደህንነት; Always plug the heater directly into a 120V wall outlet. Do not use with extension cords, power strips, or surge protectors. Ensure the outlet is not overloaded.
• አቀማመጥ፡- Place the heater on a firm, level surface. Maintain a minimum distance of 3 feet (0.9 meters) from walls, furniture, curtains, and other combustible materials. Do not block air intake or exhaust openings.
• አይሸፍኑ፡ Never cover the heater, as this can lead to overheating and fire. The unit is marked with a 'DO NOT COVER' warning.
• እርጥበት፡- Do not use the heater in wet or moist locations, such as bathrooms, laundry areas, or near sinks. Keep away from water.
• ክትትል፡ Close supervision is necessary when the heater is used by or near children or individuals with reduced physical, sensory, or mental capabilities.
• በማይጠቀሙበት ጊዜ ይንቀሉት፡- Always unplug the heater when not in use or before cleaning or servicing.
• ጠቃሚ ምክር ጥበቃ፡- This heater is equipped with a safety tip-over switch that automatically shuts off the unit if it is accidentally knocked over.
• የሙቀት መከላከያ; The heater features an automatic overheat protection system that turns off the unit if it reaches an unsafe temperature. If this occurs, unplug the heater, wait 30 minutes for it to cool, and then plug it back in.

2. ምርት አብቅቷልview

The Alera Mini Tower Ceramic Heater is designed to provide supplemental warmth for small to medium-sized rooms. It features a ceramic heating element, adjustable thermostat, and an oscillation function for wider heat distribution.

ምስል 2.1: የፊት view of the Alera Mini Tower Ceramic Heater, showing the sleek black design and control panel at the top.

አካላት፡-

• የቁጥጥር ፓነል Located on the top of the unit, featuring a thermostat knob and a function knob.
• የአየር መውጫ ግሪል; ሞቃት አየር የሚወጣበት የፊት ፍርግርግ።
• የአየር ማስገቢያ; Rear grille for air circulation.
• የኃይል ገመድ; ከኤሌክትሪክ ሶኬት ጋር ለመገናኘት.
• መሰረት፡ መረጋጋትን ይሰጣል እና የመወዛወዝ ዘዴን ይይዛል።

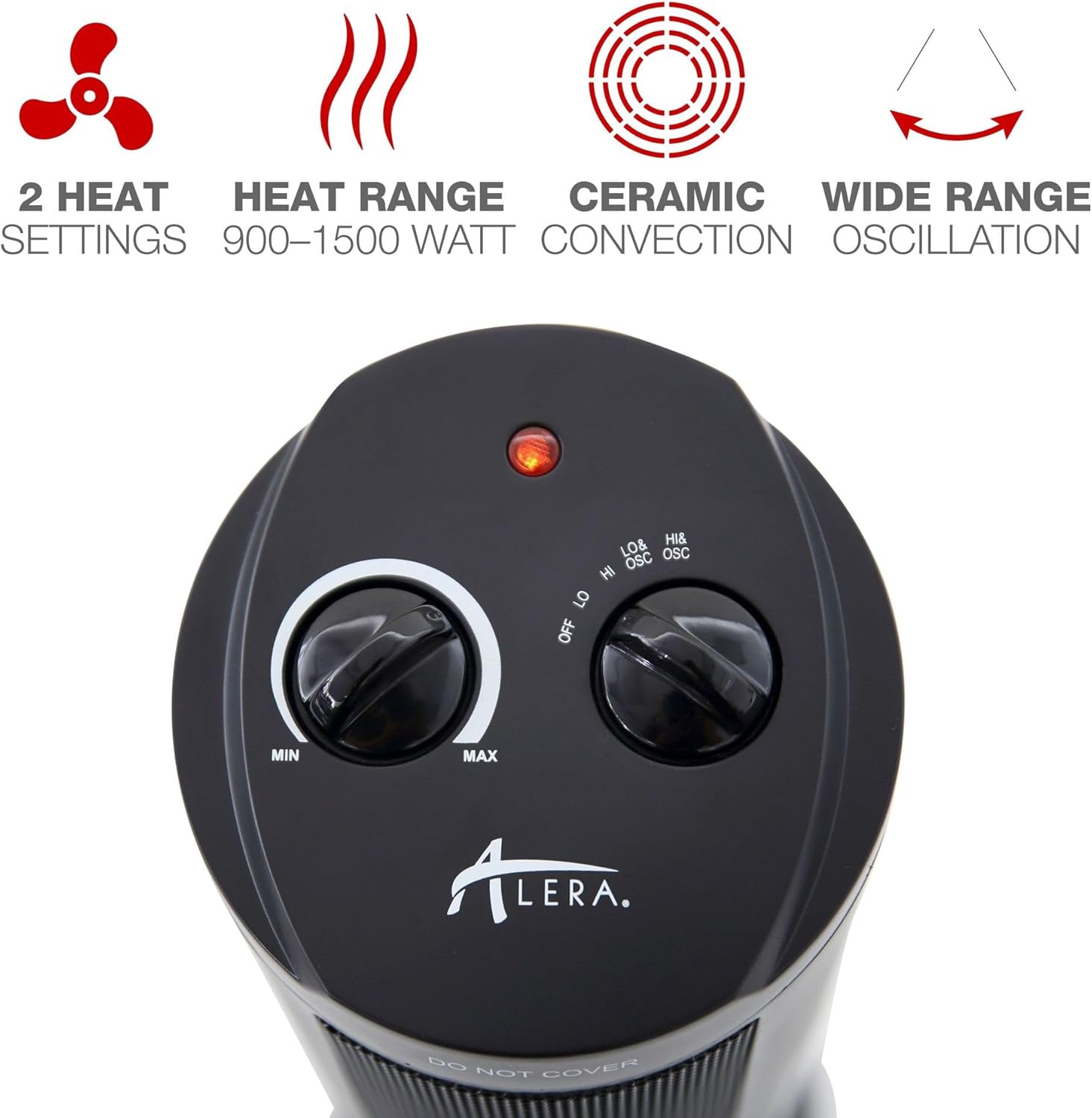

ምስል 2.2: ዝርዝር view of the control panel, showing the thermostat knob (MIN to MAX) and the function knob (OFF, LO, HI, LO&OSC, HI&OSC).

3. ማዋቀር

1. ማሸግ ፦ ማሞቂያውን ከማሸጊያው በጥንቃቄ ያስወግዱት. ወቅቱን ያልጠበቀ ማከማቻ ማሸጊያዎችን ያቆዩ።
2. መርምር፡ ለማንኛውም የጉዳት ምልክቶች ማሞቂያውን ያረጋግጡ. ጉዳት ከደረሰብዎ ቀዶ ጥገና አያድርጉ.
3. አቀማመጥ፡- Place the heater upright on a stable, level, and heat-resistant surface. Ensure there is at least 3 feet (0.9 meters) of clear space around the heater from all sides, including the top. Avoid placing it on thick carpets that might block the air intake.
4. የኃይል ግንኙነት; Plug the power cord directly into a standard 120V AC, 60Hz electrical outlet. Ensure the outlet is in good condition and not shared with other high-wattagሠ መሣሪያዎች።

Figure 3.1: The heater positioned in a room, demonstrating appropriate clearance from walls and furniture.

4. የአሠራር መመሪያዎች

ከመቆጣጠሪያ ፓነሉ ጋር ከመሥራትዎ በፊት እራስዎን ያስተዋውቁ።

የቁጥጥር ፓነል ተግባራት፡-

• Thermostat Knob (Left): Adjusts the desired room temperature. Turn clockwise from MIN to MAX. The heater will cycle on and off to maintain the set temperature.
• Function Knob (Right): የክወና ሁነታን ይመርጣል.

የአሠራር ደረጃዎች፡-

1. አብራ፡ Turn the Function Knob to your desired setting:
   • ሎ፡ Low heat setting (approximately 900W).
   • ሃይ፥ High heat setting (approximately 1500W).
   • LO & OSC: Low heat with oscillation.
   • HI & OSC: High heat with oscillation.
2. ቴርሞስታት አዘጋጅ፡ Turn the Thermostat Knob clockwise to the MAX position. Once the room reaches a comfortable temperature, slowly turn the Thermostat Knob counter-clockwise until the heater turns off. The heater will now cycle on and off to maintain this temperature.
3. መፍሰስ If you select a setting with 'OSC', the heater will slowly rotate from side to side to distribute heat more evenly across the room.
4. ኃይል ዝጋ: To turn off the heater, turn the Function Knob to the 'OFF' position. Unplug the heater from the wall outlet when not in use for extended periods.

5. ጥገና

አዘውትሮ ማጽዳትና በአግባቡ ማከማቸት የማሞቂያዎን ረጅም ጊዜ እና ቀልጣፋ አሠራር ለማረጋገጥ ይረዳል።

ማጽዳት፡

1. ኃይልን አቋርጥ፡ ሁልጊዜ ማሞቂያውን ይንቀሉት እና ከማጽዳትዎ በፊት ሙሉ በሙሉ እንዲቀዘቅዝ ያድርጉት.
2. የውጭ ጽዳት; የማሞቂያውን ውጫዊ ገጽታዎች ለስላሳ, መamp ጨርቅ. ማጽጃዎችን ወይም ፈሳሾችን አይጠቀሙ, ምክንያቱም እነዚህ መጨረሻውን ሊጎዱ ይችላሉ.
3. የአየር ማስገቢያ / መውጫ; Use a vacuum cleaner with a brush attachment to gently remove dust and lint from the air intake and outlet grilles. Do not insert any objects into the grilles.
4. ማድረቅ፡ Ensure the heater is completely dry before plugging it back in and operating.

ማከማቻ፡

When storing the heater, keep it in its original packaging in a cool, dry place, away from direct sunlight and extreme temperatures.

6. መላ መፈለግ

If your heater is not operating correctly, consult the following troubleshooting guide. Do not attempt to repair the heater yourself.

7. ዝርዝሮች

• ሞዴል፡ ALE-HECT17
• የምርት ስም፡ አሌራ
• ዓይነት፡- Mini Tower Ceramic Heater
• የኃይል ውፅዓት፡- 900 ዋ (ዝቅተኛ)፣ 1500 ዋ (ከፍተኛ)
• ጥራዝtage: 120 ቪ ኤሲ ፣ 60Hz
• ልኬቶች (D x W x H)፦ 7.37" x 7.37" x 17.37" (18.72 ሴሜ x 18.72 ሴሜ x 44.12 ሴሜ)
• ክብደት፡ 5.38 ፓውንድ (2.44 ኪ.ግ)
• ባህሪያት፡ Adjustable Thermostat, Oscillation Function, Ceramic Heating Element, Cool-Touch Housing, Tip-Over Safety Switch, Overheat Auto-Shut Off Protection.
• የቤት ውስጥ/የውጭ አጠቃቀም፡- የቤት ውስጥ ብቻ
• ቀለም፡ ጥቁር

Figure 7.1: Diagram showing the dimensions of the Alera Mini Tower Ceramic Heater.

8. ዋስትና እና የደንበኛ ድጋፍ

For information regarding the product warranty, please refer to the warranty card included with your purchase or visit the official Alera website. If you have any questions, require technical assistance, or need to report an issue, please contact Alera customer support through their official channels.

Please have your model number (ALE-HECT17) and purchase date available when contacting support.
