Antec Dark Phantom DP501 ATX Mid Tower Gaming Case User Manual

መግቢያ

This manual provides detailed instructions for the installation, operation, and maintenance of your Antec Dark Phantom DP501 ATX Mid Tower Gaming Case. Please read this manual thoroughly before beginning installation to ensure proper setup and optimal performance.

ምስል: የፊት-ጎን view of the Antec Dark Phantom DP501 case, showcasing its sleek design and ARGB lighting elements.

የጥቅል ይዘቶች

ሁሉም ክፍሎች በጥቅሉ ውስጥ መገኘታቸውን ያረጋግጡ፡-

• Antec Dark Phantom DP501 ATX Mid Tower Gaming Case
• የመለዋወጫ ሣጥን (ዊንጮች፣ የኬብል ማያያዣዎች፣ ማቆሚያዎች)
• የተጠቃሚ መመሪያ (ይህ ሰነድ)

ማዋቀር

1. ማሸግ እና መፈተሽ

Carefully remove the case from its packaging. Inspect for any signs of damage during transit. Remove the tempered glass side panel by unscrewing the thumb screws at the rear of the case.

ምስል: የውስጥ view of the Antec DP501 case, highlighting the spacious motherboard tray and cable management cutouts.

2. Motherboard መጫን

Install the necessary standoffs onto the motherboard tray according to your motherboard's form factor (ATX, Micro-ATX, Mini-ITX). Carefully place your motherboard onto the standoffs and secure it with screws.

3. የኃይል አቅርቦት ክፍል (PSU) መጫን

The DP501 supports standard ATX power supplies. Install the PSU into the dedicated compartment at the bottom rear of the case. It is recommended to install modular PSU cables before securing the PSU if space is limited, especially for larger units like the Corsair RM1000i mentioned in user feedback.

4. የማከማቻ ድራይቭ መጫኛ

The case includes bays for 2.5-inch SSDs and 3.5-inch HDDs. Locate the drive cages and trays, install your storage devices, and secure them. The HDD bay may need to be temporarily removed for easier PSU installation.

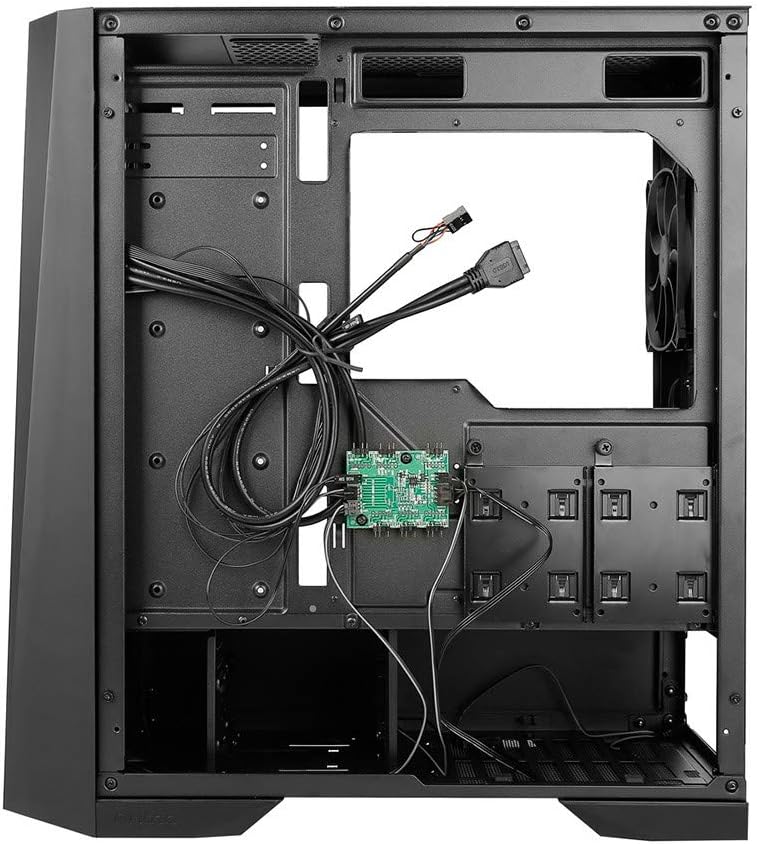

ምስል፡ የኋላ የውስጥ ክፍል view of the Antec DP501 case, illustrating the cable management area and accessible drive bays.

5. የግራፊክስ ካርድ እና የማስፋፊያ ካርድ መጫኛ

Install your graphics card and any other expansion cards into the appropriate PCIe slots on your motherboard. Secure them with screws at the rear of the case.

6. የማቀዝቀዣ ስርዓት መጫኛ

The DP501 supports various cooling configurations:

• ደጋፊዎች፡- Up to six LED case fans can be installed for optimal thermal performance.
• ፈሳሽ ማቀዝቀዝ; Ample room is provided for both All-In-One (AIO) and custom loop liquid cooling systems. Note that installing a 3-fan liquid cooler at the front may limit space for longer graphics cards. Consider top mounting for radiators where possible.

7. የኬብል አስተዳደር

ኬብሎችን ለማደራጀት የኬብል ማስተላለፊያ መቁረጫዎችን እና ከእናትቦርዱ ትሪ ጀርባ ያሉትን የማቆሚያ ነጥቦችን ይጠቀሙ። ይህ የአየር ፍሰትን እና ውበትን ያሻሽላል።

በመስራት ላይ

1. ማብራት / ማጥፋት

Connect the power cable to your PSU and a wall outlet. Press the power button located on the top front panel of the case to turn on your system. Press again to turn off, or hold for a forced shutdown.

2. ARGB የመብራት መቆጣጠሪያ

The DP501 features an inbuilt LED controller for its ARGB lighting elements. You can control the colors and modes using the dedicated LED mode I/O button on the top panel. For 16.8 million custom colors and advanced synchronization, connect the 3-pin ARGB module to a compatible motherboard header and use the motherboard's software (e.g., ASUS Aura Sync, MSI Mystic Light, Gigabyte RGB Fusion).

ምስል፡ ፊት ለፊት view of the Antec DP501 case, demonstrating the active ARGB lighting on the front panel.

ጥገና

1. የአቧራ ማጣሪያ ማጽዳት

The DP501 includes dust filters to prevent dust buildup. Regularly clean the removable dust filters located on the top and bottom of the case. Gently slide them out, clean with water or a soft brush, and ensure they are dry before reinserting.

ምስል፡ ከታች view of the Antec DP501 case, showing the removable dust filter for the power supply intake.

2. አጠቃላይ ጽዳት

ለስላሳ ይጠቀሙ, መamp cloth to clean the exterior surfaces of the case. For the tempered glass panel, use a glass cleaner and a microfiber cloth to avoid streaks. Avoid abrasive cleaners or solvents.

መላ መፈለግ

• ስርዓቱ አይበራም;
  Check all power connections, including the PSU to the wall, PSU to motherboard, and front panel power switch header to the motherboard. Ensure the PSU switch is in the 'ON' position.
• ARGB Lighting Not Working/Syncing:
  Verify that the ARGB controller is properly connected to the PSU and, if using motherboard sync, that the 3-pin ARGB cable is connected to the correct motherboard header. Ensure motherboard ARGB software is installed and configured correctly.
• ከመጠን በላይ ሙቀት ችግሮች;
  Ensure all case fans are spinning correctly and oriented for proper airflow (intake/exhaust). Clean dust filters regularly. Verify CPU cooler and GPU cooler are properly seated and functioning.
• የማይገጣጠሙ ክፍሎች፡-
  The DP501 is a mid-tower case. While spacious, some oversized components (e.g., very long graphics cards, large 3-fan liquid coolers) may have fitment challenges, especially when front-mounted. Always check component dimensions against case specifications before purchase.

ዝርዝሮች

ዋስትና እና ድጋፍ

For warranty information and technical support, please refer to the official Antec website or contact Antec customer service directly. Keep your proof of purchase for warranty claims.
