Ford 18V Cordless Impact Drill User Manual

መግቢያ

Thank you for choosing the Ford 18V Cordless Impact Drill. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new tool. Please read this manual thoroughly before first use and keep it for future reference. This drill is designed for various drilling and fastening tasks, offering versatility and power in a compact design.

Image: The Ford 18V Cordless Impact Drill, showcasing its blue and black design with an 18V Lithium-Ion battery attached.

የደህንነት መመሪያዎች

የእሳት፣ የኤሌክትሪክ ንዝረት እና የግል ጉዳት አደጋን ለመቀነስ ሁልጊዜ መሰረታዊ የደህንነት ጥንቃቄዎችን ይከተሉ። ይህንን መመሪያ ለወደፊት ጥቅም ላይ እንዲውል ያስቀምጡት።

• የሥራ አካባቢ ደህንነት; የስራ ቦታዎን ንፁህ እና በደንብ ያብሩት። የተዝረከረኩ ወይም ጨለማ ቦታዎች አደጋዎችን ይጋብዛሉ። እንደ ተቀጣጣይ ፈሳሾች፣ ጋዞች ወይም አቧራ ባሉ ፈንጂዎች ውስጥ የኃይል መሳሪያዎችን አይጠቀሙ።
• የኤሌክትሪክ ደህንነት; ከመሬት ወይም ከመሬት ወለል ጋር የሰውነት ንክኪ ያስወግዱ። የኤሌክትሪክ መሳሪያዎችን ለዝናብ ወይም እርጥብ ሁኔታዎች አያጋልጡ። ወደ ኃይል መሳሪያ የሚገባ ውሃ የኤሌክትሪክ ንዝረት አደጋን ይጨምራል።
• የግል ደህንነት; ሁልጊዜ የዓይን መከላከያ ይልበሱ። ለረጅም ጊዜ ሲሰሩ የመስሚያ መከላከያ ይጠቀሙ። በአግባቡ ይለብሱ፤ ልቅ የሆኑ ልብሶችን ወይም ጌጣጌጦችን ያስወግዱ። ፀጉርን፣ ልብስን እና ጓንቶችን ከሚንቀሳቀሱ ክፍሎች ያርቁ።
• የኃይል መሣሪያ አጠቃቀም እና እንክብካቤ; የኃይል መሣሪያውን አያስገድዱ. ለትግበራዎ ትክክለኛውን የኃይል መሣሪያ ይጠቀሙ። ማናቸውንም ማስተካከያዎችን ከማድረግዎ, መለዋወጫዎችን ከመቀየርዎ ወይም የኃይል መሳሪያዎችን ከማጠራቀምዎ በፊት የባትሪውን መያዣ ከኃይል መሳሪያው ያላቅቁት.
• የባትሪ ጥቅል አጠቃቀም እና እንክብካቤ፡- Recharge only with the charger specified by the manufacturer. Do not use battery packs with any other power tools. When the battery pack is not in use, keep it away from other metal objects.

የጥቅል ይዘቶች

Carefully unpack your Ford 18V Cordless Impact Drill and check that all items are present and in good condition. If any items are missing or damaged, please contact your retailer.

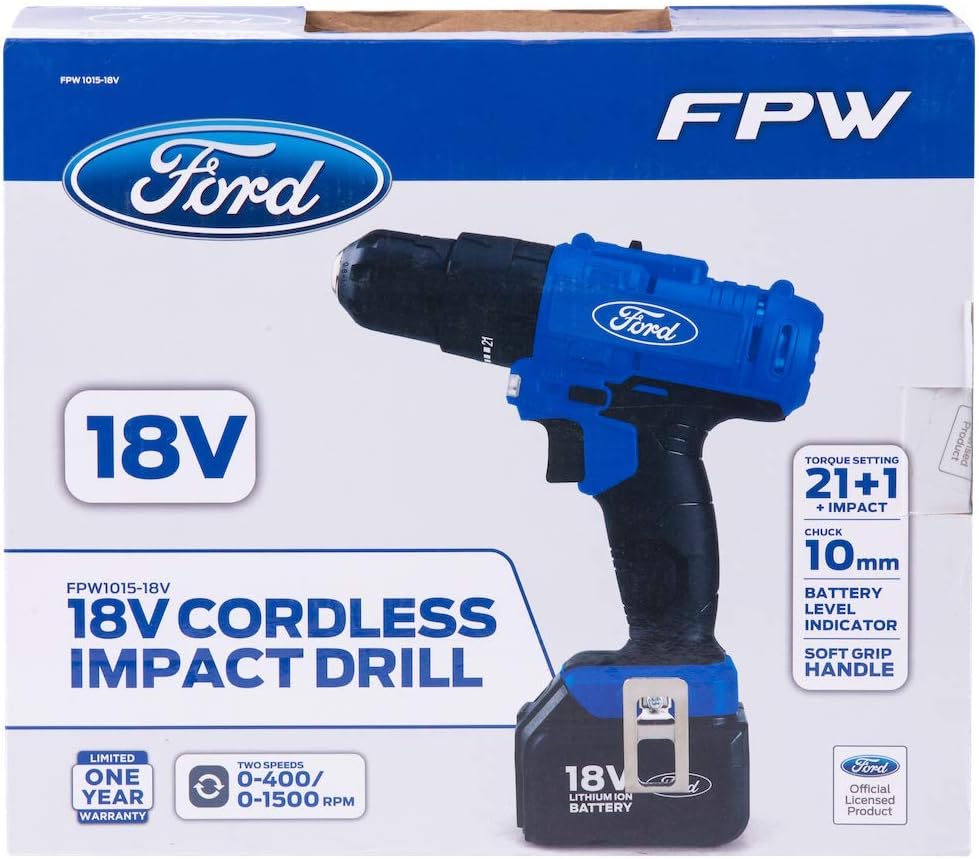

Image: The retail packaging for the Ford 18V Cordless Impact Drill, showing the drill, battery, and charger.

• 1 x Ford 18V Cordless Impact Drill
• 2 x 18V Lithium-Ion Battery Packs
• 1 x የባትሪ መሙያ
• 1 x ቀበቶ ቅንጥብ
• 1 x Magnetic Bit Holder
• 1 x መመሪያ መመሪያ
• 1 x BMC (Blow Molded Case) Box

የምርት ባህሪያት

The Ford 18V Cordless Impact Drill is engineered for performance and user comfort:

• ቀላል ክብደት ንድፍ; Allows for easy handling and access in confined spaces.
• ምቹ መያዣ; Ergonomically designed handle for reduced fatigue during prolonged use.
• ተለዋዋጭ የፍጥነት መቀስቀሻ; Provides enhanced control for various drilling and fastening applications.
• የተቀናጀ የ LED የስራ ብርሃን; Illuminates the work area for improved visibility in dark conditions.
• ከፍተኛ አፈጻጸም ያለው ሞተር; Equipped with a powerful motor for fast drilling and strong torque control.
• 21+1 የማሽከርከር ቅንጅቶች Offers precise torque adjustment for screwdriving, plus dedicated drill and hammer drill modes.
• 10mm Chuck Capacity: Keyless chuck for quick and easy bit changes.
• ሊቲየም-አዮን ባትሪ Provides consistent power and longer run-time.
• ራስ-ሰር የስፒንድል መቆለፊያ፦ For single-hand bit changes.
• Belt Clip & Magnetic Bit Holder: For convenient storage and accessibility of bits and the tool.

ማዋቀር

1. ባትሪውን በመሙላት ላይ

Before first use, fully charge the battery pack. The battery can be charged independently or while attached to the drill.

1. Connect the charger to a standard power outlet (220-240V ~ 50-60Hz).
2. Insert the charger plug into the charging port on the battery pack.
3. Allow 5-7 hours for a full charge. The charging indicator light on the charger will show the charging status.
4. ሙሉ በሙሉ ከተሞላ በኋላ ቻርጀሩን ከባትሪው እና ከኃይል መውጫው ያላቅቁት።

2. Attaching and Removing the Battery Pack

To attach the battery, align the battery pack with the base of the drill handle and slide it in until it clicks securely into place. To remove, press the battery release buttons on the sides of the battery pack and slide it out.

3. የመርከብ ቢትስ ማስገባት እና ማስወገድ

The drill features a 10mm keyless chuck for easy bit changes.

1. To open the chuck, rotate the front collar of the chuck counter-clockwise until the jaws are wide enough to accept the bit.
2. Insert the drill bit or screwdriver bit into the chuck. Ensure the bit is centered.
3. To secure the bit, rotate the front collar clockwise until the chuck jaws firmly grip the bit. Hand-tighten for best results.
4. To remove the bit, rotate the front collar counter-clockwise.

የአሠራር መመሪያዎች

1. Power On/Off and Variable Speed Control

The drill is activated by pressing the trigger switch. The speed is variable; the further the trigger is pressed, the faster the drill operates.

2. ወደ ፊት / የተገላቢጦሽ ሽክርክሪት

A switch located above the trigger controls the direction of rotation. Push the switch to the left for forward rotation (drilling/tightening) and to the right for reverse rotation (removing screws). Ensure the switch is in the center position to lock the trigger and prevent accidental starting.

3. Torque Settings and Mode Selection

The torque collar allows you to select from 21 torque settings for screwdriving, plus a drill mode and an impact drill mode.

• የማሽከርከር ቅንጅቶች (1-21) Use lower settings for smaller screws and softer materials, and higher settings for larger screws and harder materials. The clutch will disengage when the set torque is reached, preventing overtightening or stripping.
• የመቆፈሪያ ሁነታ (የመቆፈሪያ አዶ)፦ For general drilling tasks without impact.
• የኢምፓክት ድሪል ሁነታ (የመዶሻ አዶ)፦ For drilling into masonry or harder materials where impact action is required.

Rotate the torque collar to the desired setting or mode before operating the drill.

4. የማርሽ ምርጫ

A two-speed gear selector is located on top of the drill. Use '1' for lower speed and higher torque (e.g., screwdriving or large diameter drilling) and '2' for higher speed and lower torque (e.g., small diameter drilling).

ጥገና

መደበኛ ጥገና ጥሩ አፈፃፀምን ያረጋግጣል እና የመሳሪያዎን ዕድሜ ያራዝመዋል።

• ማጽዳት፡ ከመጠን በላይ ሙቀትን ለመከላከል የአየር ማናፈሻ ክፍተቶችን ንጹህ ያድርጉት። ለስላሳ፣ ዲ ይጠቀሙ።amp መሣሪያውን ለማጽዳት ጨርቅ ሐasinሰ. ጠጣር ኬሚካሎችን ወይም ሻካራ ማጽጃዎችን አይጠቀሙ።
• የባትሪ እንክብካቤ ባትሪዎቹን ከፀሐይ ብርሃን ራቅ አድርገው ቀዝቃዛና ደረቅ ቦታ ያስቀምጡ። ሙሉ በሙሉ የተሟሉ ባትሪዎችን ለረጅም ጊዜ አያስቀምጡ። ጥቅም ላይ የማይውሉ ከሆነ በየጊዜው ባትሪ ይሙሉ።
• የቻክ ጥገና; ትክክለኛውን የቢት መያዙን ለማረጋገጥ በየጊዜው የቺክ መንገጭላዎችን ያፅዱ።
• ማከማቻ፡ When not in use, store the drill and its accessories in the BMC box in a dry, secure location out of reach of children.

መላ መፈለግ

በስልጠናዎ ላይ ችግሮች ካጋጠሙዎት የሚከተሉትን የተለመዱ ችግሮች እና መፍትሄዎች ይመልከቱ፡

ዝርዝሮች

Technical data for the Ford 18V Cordless Impact Drill FPW1015-18V:

ዋስትና እና ድጋፍ

Your Ford 18V Cordless Impact Drill comes with a manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions. For technical support, spare parts, or warranty claims, please contact your retailer or the official Ford tools service center.

Always ensure you have your model number (FPW1015-18V) and proof of purchase available when contacting support.
