1. ምርት አብቅቷልview
The Elitech RC-4HC is a USB temperature and humidity data logger designed for monitoring and recording environmental conditions. It features an internal temperature and humidity sensor, with an option for an external temperature sensor. The device has a large storage capacity and allows for data export via USB.
Image 1: Elitech RC-4HC USB Temperature and Humidity Data Logger with its packaging, showing the device and the '50 PACK' label.
2. የጥቅል ይዘቶች
ሁሉም እቃዎች በጥቅሉ ውስጥ መኖራቸውን ያረጋግጡ፡-
- 1 x RC-4HC Data Logger
- 1 x የውጭ ሙቀት ዳሳሽ
- 1 x የዩኤስቢ ገመድ
- 1 x የተጠቃሚ መመሪያ
- 1 x Validation Certificate
- 1 x Lithium Metal Battery

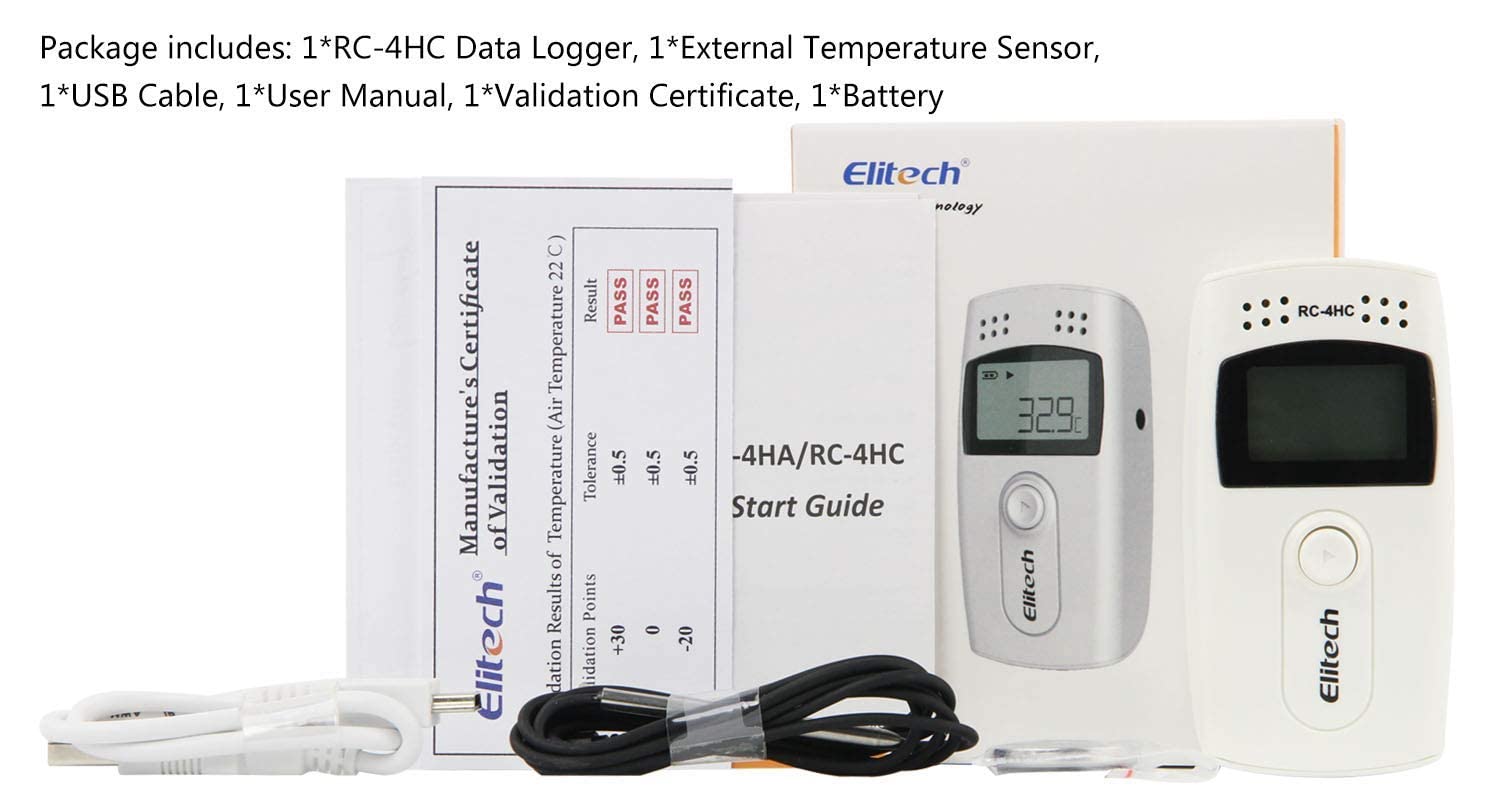

Image 2: Contents of the Elitech RC-4HC package, including the data logger, external sensor, USB cable, user manual, certificate, and battery.
3. ማዋቀር እና መጫን
3.1 የባትሪ ጭነት
Before initial use, install the included Lithium Metal battery.
- Locate the battery compartment on the back of the data logger.
- Use a coin or similar tool to twist the battery cover counter-clockwise to open.
- Place the battery under the small metal clip with the positive pole (+) facing you.
- Replace the battery cover and twist clockwise to secure it.
Image 3: A four-step visual guide demonstrating how to correctly install the battery into the Elitech RC-4HC data logger, showing the positive terminal placement.
3.2 External Sensor Connection (Optional)
If external temperature monitoring is required, connect the external temperature sensor to the designated port on the data logger.
Image 4: The Elitech RC-4HC data logger connected to a computer via USB and also showing the external temperature sensor connected.
3.3 Software Installation and Initial Parameter Setup
To configure the data logger and retrieve data, install the ElitechLog software on your computer (compatible with MAC/WIN). The software allows you to set logging parameters such as interval (e.g., 10 seconds), alarm limits, and temperature units (e.g., ℃ or ℉).
Image 5: A flowchart illustrating the workflow for setting up the data logger using ElitechLog software on both Windows and Mac operating systems, from connecting the device to saving parameters and starting recording.
Video: Elitech RC-4HC USB Temperature and Humidity Data Logger How to Use
4. የአሠራር መመሪያዎች
4.1 Starting Data Logging
After setting parameters via the software, disconnect the logger from the computer. To start logging, press and hold the button on the logger for more than 4 seconds. A triangle sign firmly lit up on the screen indicates that logging has started.
4.2 Viewing Current Data
Press the button once to light up the screen and view the current temperature. Press again to cycle through humidity, total logged points, time, date, maximum temperature, minimum temperature, and upper/lower temperature limits.
4.3 Data Retrieval and Export
Connect the data logger to your computer using the USB cable. Open the ElitechLog software. The software will automatically read the recorded data. You can then view the data in graph or list format and export it to PDF or Excel files. The software also supports managing and comparing multiple historical data sets.
Image 6: An illustration showing the Elitech RC-4HC data logger connected to a computer, with data being exported to various formats like PDF, Word, Excel, and TXT via ElitechLog software.
5. ባህሪያት እና ዝርዝሮች
- ዳሳሾች፡- Internal 1 temperature sensor and 1 humidity sensor, 1 optional external temperature sensor.
- የሙቀት መጠን: -40℃ to +85℃ (-22℉ to 185℉).
- የእርጥበት ክልል ከ 10% እስከ 99% RH.
- የሙቀት ትክክለኛነት; ±0.5℃/±0.9℉ (-20℃ to +40℃); ±1℃/±1.8℉ (others).
- ጥራት፡ 0.1℃/℉.
- የውሂብ ነጥቦች፡- 16,000.
- የምዝግብ ማስታወሻ ክፍተት፡- ከ 10 ሰከንዶች እስከ 24 ሰዓታት ማስተካከል የሚችል።
- የሙቀት መለኪያ; Selectable between ℉ and ℃.
- ማንቂያ፡- LCD alarm indication, buzzer alarm.
- ግንኙነት፡ USB for PC connection.
- ውሂብ ወደ ውጭ መላክ PDF/EXCEL via data management software.
- ባትሪ፡ 1 Lithium Metal battery (included).
- መጠኖች፡- Width: 44mm, Height: 84mm, Thickness: 20mm.
Image 7: A visual representation of the Elitech RC-4HC data logger's key specifications, including temperature and humidity measurement ranges, accuracy, resolution, and data capacity.
Image 8: The Elitech RC-4HC data logger showing its dimensions (width 44mm, height 84mm, thickness 20mm) and highlighting the buzzer alarm feature.
6. ጥገና
To ensure optimal performance and longevity of your Elitech RC-4HC data logger:
- ማጽዳት፡ Wipe the device clean with a soft, dry cloth. Avoid using abrasive cleaners or solvents.
- የባትሪ መተካት፡ Replace the Lithium Metal battery when the low battery indicator appears on the display.
- ማከማቻ፡ ለረጅም ጊዜ ጥቅም ላይ በማይውልበት ጊዜ መሳሪያውን በቀጥታ ከፀሀይ ብርሀን እና ከከፍተኛ ሙቀት ርቆ በቀዝቃዛና ደረቅ ቦታ ያከማቹ።
7. መላ መፈለግ
If you encounter issues with your Elitech RC-4HC data logger, consider the following:
- Device Not Starting: Ensure the battery is correctly installed with the positive pole facing up and is not depleted.
- No Data on Software: Verify the USB connection to the computer. Ensure the ElitechLog software is running and the device is recognized.
- የተሳሳቱ ንባቦች፡- Check if the external sensor is properly connected (if used). Ensure the device is placed in an environment suitable for its operating range.
- የሶፍትዌር ጉዳዮች፡- Ensure you have the latest version of ElitechLog software installed. Refer to the software's help documentation for specific error messages.
8. ዋስትና እና ድጋፍ
For warranty information, technical support, or service inquiries, please contact Elitech Technology Inc. using the details below:
- ስልክ፡- (+1)408-844-4070
- ኢሜይል፡- ድጋፍ@elitechus.com
- Webጣቢያ፡ www.elitechustore.com
