UpStart Components 8194001 Dishwasher Door Balance Kit Instruction Manual

መግቢያ

This manual provides instructions for the installation, operation, and maintenance of the UpStart Components 8194001 Dishwasher Door Balance Kit. This kit is designed to replace worn or broken door balance links, ensuring the dishwasher door opens and closes smoothly and stays in position when partially open. Proper door balance is essential for safe and efficient dishwasher operation.

የደህንነት መረጃ

• ሁልጊዜ ኃይልን ያላቅቁ to the dishwasher before attempting any repairs or installations. Failure to do so can result in electric shock or injury.
• ጉዳትን ለመከላከል ተገቢውን የግል መከላከያ መሳሪያዎችን እንደ ጓንት ይልበሱ።
• ስለማንኛውም እርምጃ እርግጠኛ ካልሆኑ ብቃት ያለው የመሳሪያ ቴክኒሻን ያማክሩ።
• ትናንሽ ክፍሎችን ከልጆች ያርቁ.

የጥቅል ይዘቶች

The UpStart Components 8194001 Dishwasher Door Balance Kit includes the following components:

• Two (2) Dishwasher Door Balance Links with Cords

Image: Two white dishwasher door balance links with attached cords. These components are crucial for maintaining the door's balance.

ተኳኋኝነት

This door balance kit is a replacement part compatible with various dishwasher models, including KitchenAid KUDI01FLSS6. It is also compatible with the following part numbers:

• 8194001
• ኤፒ3775412
• 1059756
• 8194001 ቪፒ
• 8270018
• 8270022
• 8535568
• AH972325
• ኢአ972325
• ERW10158291
• PS972325
• ወ10158291

ማዋቀር እና መጫን

Follow these steps to install the dishwasher door balance kit:

1. ኃይልን አቋርጥ፡ Locate the circuit breaker for your dishwasher and turn off the power. Verify that the power is off before proceeding.
2. Access the Lower Panel: Open the dishwasher door. Locate and remove the screws securing the lower access panel (kick plate) at the bottom front of the dishwasher. Carefully remove the panel.
3. Locate Old Balance Links: Inside the dishwasher's base, you will find the door balance springs and the existing balance links/cords. Note how they are attached.
4. Remove Old Links: Carefully detach the old balance links from both the door hinge mechanism and the balance springs. It may be helpful to take a picture before removal for reference.
5. Install New Links: Attach the new balance links. Ensure the cords are properly routed and securely connected to both the door hinge and the balance springs. The links should be installed in the same orientation as the original parts.
6. Test Door Balance: Before reattaching the access panel, gently open and close the dishwasher door to ensure it operates smoothly and stays in position when partially open. Adjust if necessary.
7. እንደገና ሰብስብ፡ Reattach the lower access panel and secure it with its screws.
8. ኃይልን ወደነበረበት መልስ በወረዳው ተላላፊው ላይ ኃይሉን መልሰው ያብሩት።

ምስል: ከፍተኛ view of the balance links, illustrating the bolt and cord attachment points. These points connect to the dishwasher door and balance springs.

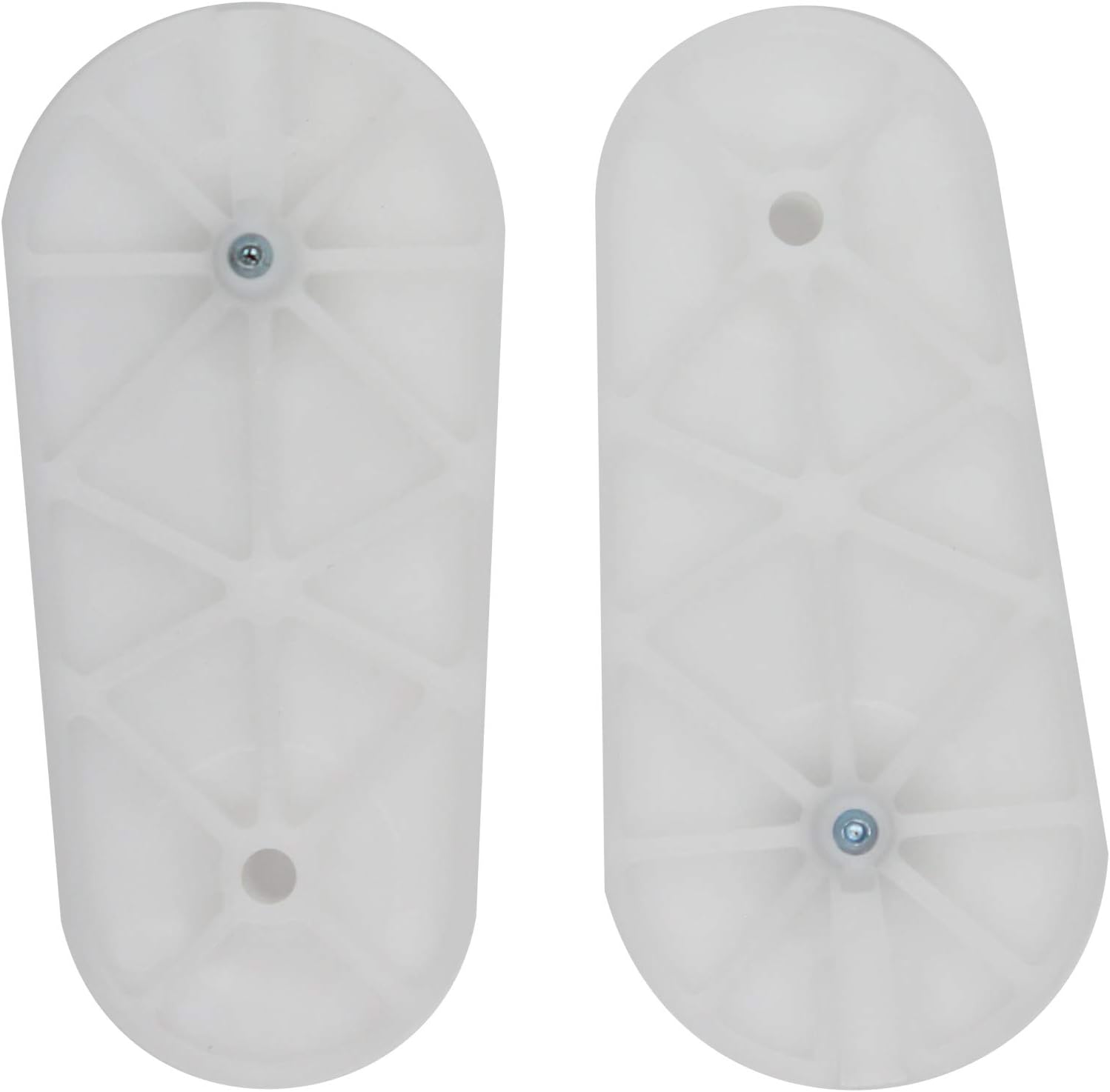

ምስል: ከስር view of the balance links, showing the internal structure and connection points. This side typically faces inwards towards the dishwasher mechanism.

በመስራት ላይ

Once installed, the door balance kit ensures that your dishwasher door operates correctly. The door should open smoothly and remain in any partially open position without dropping suddenly or springing shut. This proper balance prevents stress on the door hinges and allows for easier loading and unloading of dishes.

ጥገና

Periodically inspect the door balance links and cords for signs of wear, fraying, or damage. If any issues are observed, consider replacing the kit to maintain optimal door function and prevent further damage to the dishwasher.

መላ መፈለግ

• Door drops suddenly: This indicates that the balance links or springs are likely broken or detached. Re-check the installation of the new links.
• Door does not stay open: Similar to the above, this suggests an issue with the balance mechanism. Ensure the links are correctly installed and not obstructed.
• Difficulty opening/closing door: Verify that the links are not binding and that all connections are secure.

ዝርዝሮች

ዋስትና እና ድጋፍ

This product is an UpStart Components Brand replacement part. Any warranties for this product are offered solely by UpStart Components. For support or warranty inquiries, please contact UpStart Components directly through their official channels. This product is not affiliated with any original equipment manufacturers (OEMs) and is not covered under any warranties offered by the original manufacturers.
