This manual provides instructions for the installation, operation, and maintenance of your UpStart Components Replacement Refrigerator Ice Maker. This product is designed as a compatible replacement for specific Kenmore/Sears refrigerator models, including 106.72152111, and is compatible with W10190952 icemakers. Please read these instructions carefully before proceeding with installation or use.
This is an UpStart Components brand replacement part and is not an OEM (Original Equipment Manufacturer) product. All mentions of brand names or model descriptions are made strictly to illustrate compatibility. All brand names and logos are registered trademarks of their respective owners. This product is not affiliated with any brands and is not covered under any warranties offered by the original manufacturers. Any warranties for this product are offered solely by UpStart Components.
የደህንነት መረጃ
- ኃይልን አቋርጥ፡ Always disconnect power to the refrigerator before attempting any installation, maintenance, or repair. Failure to do so can result in serious injury or electrical shock.
- የውሃ አቅርቦት; Turn off the water supply to the refrigerator before beginning installation to prevent water leaks.
- የባለሙያ ጭነት; If you are unsure about any step of the installation process, it is recommended to consult a qualified appliance technician.
- ሹል ጫፎች፡ Be aware of potential sharp edges inside the refrigerator or on the ice maker components during handling.
የጥቅል ይዘቶች
መጫኑን ከመጀመርዎ በፊት ሁሉም አካላት መኖራቸውን እና ያልተበላሹ መሆናቸውን ያረጋግጡ።
- የበረዶ ሰሪ ስብሰባ
- የመጫኛ ሳህን
- የመገጣጠም ቅንፍ
- Various Wiring Harnesses/Adapters
- ማፈናጠጥ ብሎኖች

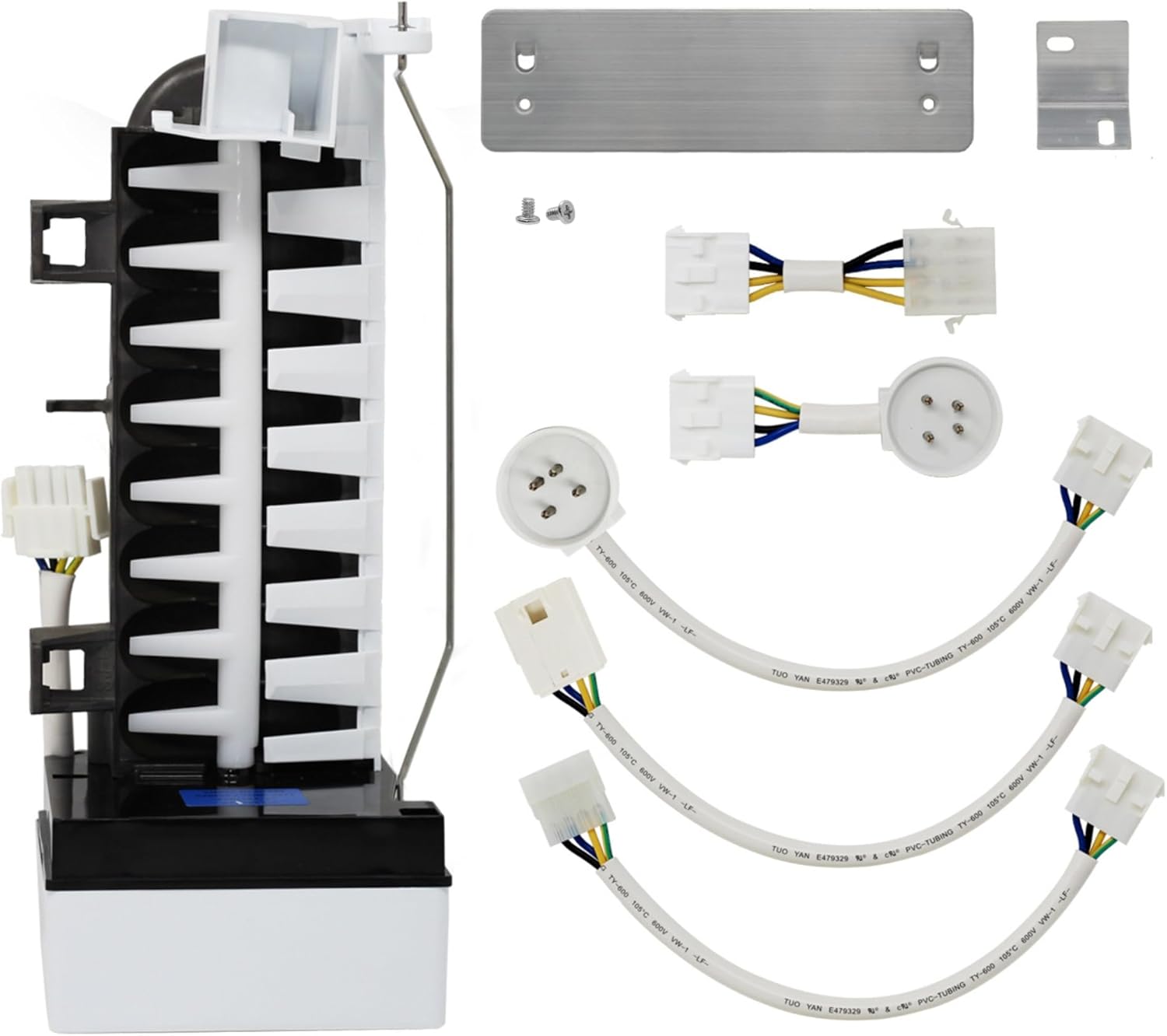

Image: Complete UpStart Components Refrigerator Ice Maker replacement kit, including the ice maker unit, mounting hardware, and various wiring harnesses.
ምስል፡ መቀራረብ view of the included wiring harnesses/adapters, mounting plate, and bracket for the UpStart Components ice maker.
ማዋቀር እና መጫን
The installation process typically involves replacing the existing ice maker unit. Refer to your refrigerator's specific service manual for detailed instructions, as procedures may vary by model. The following are general steps:
- ዝግጅት: Disconnect the refrigerator from the power supply and turn off the water supply valve to the refrigerator.
- መዳረሻ፡ Locate the existing ice maker inside the freezer compartment. You may need to remove the ice bucket and any shelves or covers obstructing access.
- የድሮውን የበረዶ ሰሪ ያላቅቁ፦ Carefully disconnect the wiring harness from the old ice maker. Remove any mounting screws or clips securing the old unit.
- የድሮውን የበረዶ ሰሪ ያስወግዱ; Gently slide or lift the old ice maker out of its position.
- አዲስ የበረዶ ሰሪ ጫን Position the new UpStart Components ice maker assembly in the same location. Secure it using the provided mounting plate, bracket, and screws, ensuring it is firmly in place.
- ሽቦ ማገናኘት; Connect the appropriate wiring harness from the new ice maker to the refrigerator's electrical connection. Use the provided adapters if necessary to ensure a secure and correct connection.
- ኃይልን ወደነበረበት መልስ Once the ice maker is securely installed and wired, restore the water supply and plug the refrigerator back into the power outlet.
- ልቅነትን ያረጋግጡ፡ After restoring water, visually inspect the water line connection to the ice maker for any leaks.
ምስል: ጎን view of the UpStart Components Refrigerator Ice Maker unit, showing the ice mold and bail arm mechanism.
የአሠራር መመሪያዎች
After installation, the ice maker will begin its cycle automatically once the freezer reaches the correct temperature and the water supply is connected.
- የመጀመሪያ ተግባር፡- It may take 12 to 24 hours for the ice maker to produce its first batch of ice after installation or after being turned off. Discard the first few batches of ice to ensure cleanliness.
- የበረዶ ምርት; The ice maker will automatically fill with water, freeze it, and then eject the ice cubes into the ice bucket.
- የዋስትና ክንድ፡ The metal bail arm (or shut-off arm) controls ice production. When the ice bucket is full, the bail arm will be pushed up by the ice, stopping further production. Lowering the bail arm will resume ice production. Ensure the bail arm is in the down position for the ice maker to operate.
- የፍሪዘር ሙቀት፡ For optimal ice production, ensure your freezer temperature is set between 0°F and 5°F (-18°C and -15°C).
ጥገና
Regular maintenance helps ensure efficient operation and longevity of your ice maker.
- ማጽዳት፡ Periodically empty and clean the ice bucket with mild soap and warm water. Rinse thoroughly and dry before returning it to the freezer.
- የውሃ መስመር; Inspect the water supply line to the ice maker for any kinks, leaks, or blockages.
- የውሃ ማጣሪያ; If your refrigerator has a water filter, ensure it is replaced regularly according to the refrigerator manufacturer's recommendations. A clogged filter can reduce water flow to the ice maker.
- የበረዶ ክምችት፦ If excessive frost builds up around the ice maker, it may indicate an issue with the freezer door seal or temperature. Defrosting the freezer may be necessary.
መላ መፈለግ
If your ice maker is not functioning correctly, review የሚከተሉት የተለመዱ ጉዳዮች እና መፍትሄዎች:
| ችግር | ሊሆን የሚችል ምክንያት | መፍትሄ |
|---|---|---|
| ምንም የበረዶ ምርት የለም |
|
|
| ትናንሽ ወይም ባዶ የበረዶ ኩቦች |
|
|
| በረዶ መጥፎ ጣዕም አለው ወይም ሽታ አለው |
|
|
| የበረዶ ሰሪ ጫጫታ አለው |
|
|
ዝርዝሮች
- የምርት ስም፡ UpStart Components
- የሞዴል ቁጥር፡- AP-4317943-DL6547
- ተኳኋኝ ክፍል ቁጥሮች፡- 4317943, AP2984633, 4317943R, 4317943VP, 46000978556, 46004211173, AH358591, EA358591, ER4317943, J21791, J22241, M626687, PS358591, RIM943, TJ90RIM943, W10122496, W10190952, W10281545, W10632400
- ተስማሚ የማቀዝቀዣ ሞዴሎች; Kenmore/Sears 106.72152111 (and others compatible with W10190952)
- ቁሳቁስ፡ Ultra durable, high quality material
ዋስትና እና ድጋፍ
This UpStart Components replacement ice maker is covered by a warranty provided solely by UpStart Components. It is not covered under any warranties offered by the original manufacturers of the refrigerator.
For warranty claims, technical assistance, or any questions regarding your product, please contact UpStart Components directly through their official support channels. Refer to your purchase documentation or the UpStart Components webለተለየ የእውቂያ መረጃ ጣቢያ።
