1. መግቢያ
Thank you for choosing the Radwag WTC 15/C1/K Load Cell Scale. This precision balance is designed for accurate weighing, counting, and checkweighing applications in various industrial and scientific environments. This manual provides essential information for the correct installation, operation, and maintenance of your device. Please read it thoroughly before use to ensure optimal performance and safety.

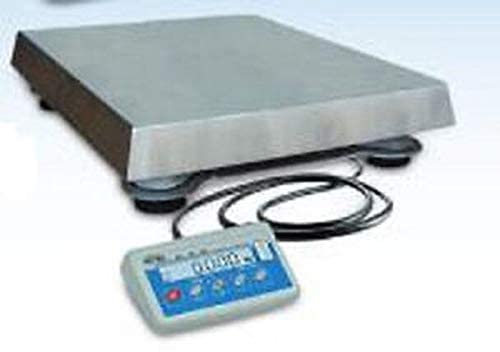

Figure 1: Radwag WTC 15/C1/K Load Cell Scale. This image displays the complete scale unit, including the weighing platform and the integrated display panel.
2. የደህንነት መመሪያዎች
በመሳሪያው ላይ ጉዳት እንዳይደርስ ለመከላከል የሚከተሉትን የደህንነት ጥንቃቄዎች ያክብሩ:
- Operate the scale only in a stable, level environment free from excessive vibrations, drafts, and extreme temperature fluctuations.
- Do not exceed the maximum capacity of 15 kg. Overloading can damage the weighing mechanism.
- መለኪያውን ከጠንካራ የኤሌክትሮማግኔቲክ መስኮች ያርቁ።
- ከመሳሪያው ጋር የቀረበውን የኃይል አስማሚ ብቻ ይጠቀሙ።
- Do not attempt to open or repair the scale yourself. Refer all servicing to qualified personnel.
- Ensure the weighing platform is clean and free of debris before each use.
3. አካላት በላይview
The Radwag WTC 15/C1/K Load Cell Scale typically includes the following components:
- ልኬት ክፍል፡ The main body housing the weighing mechanism and electronics.
- የክብደት መድረክ፡ A removable stainless steel platform (14.1 x 11.4 inches) for placing items to be weighed.
- LCD ማሳያ፡- A backlit LCD display for showing weight readings, function modes, and other information.
- የቁጥጥር ፓነል Buttons for operating various functions (e.g., ON/OFF, TARE, MODE).
- የኃይል አስማሚ፡- For connecting the scale to a power source.
4. የመጀመሪያ ደረጃ ማዋቀር
4.1 ማሸግ
ሁሉንም ክፍሎች ከማሸጊያው በጥንቃቄ ያስወግዱ። ማሸጊያውን ለወደፊት ለማጓጓዝ ወይም ለማከማቸት ያስቀምጡት።
4.2 አቀማመጥ
Place the scale on a firm, level, and stable surface. Avoid locations near air conditioning vents, open windows, or vibrating machinery that could affect measurement accuracy.
4.3 ደረጃ መስጠት
Use the adjustable feet at the bottom of the scale to ensure it is perfectly level. Check the bubble level indicator (if present) to confirm proper leveling.
4.4 የኃይል ግንኙነት
Connect the power adapter to the scale's power input port and then plug it into a suitable electrical outlet. Allow the scale to warm up for at least 30 minutes after connecting power for optimal stability.
5. የአሠራር መመሪያዎች
5.1 ማብራት / ማጥፋት
የሚለውን ይጫኑ አብራ/አጥፋ button to turn the scale on. Press and hold the አብራ/አጥፋ መለኪያውን ለማጥፋት አዝራር።
5.2 መሠረታዊ ክብደት
- Turn on the scale. Wait for the display to show '0.000g' or '0.00g'.
- Place the item to be weighed directly onto the center of the stainless steel weighing platform.
- Read the stable weight value displayed on the LCD.
5.3 Tare ተግባር
To weigh an item in a container, use the Tare function:
- ባዶውን መያዣ በክብደት መመዝገቢያ መድረክ ላይ ያስቀምጡ።
- የሚለውን ይጫኑ ይንከባከቡ button. The display will reset to '0.000g'.
- የሚመዘነውን እቃ ወደ መያዣው ውስጥ ይጨምሩ። ማሳያው የእቃውን የተጣራ ክብደት ያሳያል።
5.4 የመቁጠር ተግባር
The scale supports parts counting. Refer to the on-screen menu or specific button for activating and configuring the counting mode. Typically, you will place a known quantity of items (e.g., 10, 20, 50 pieces) to establish a sample weight, then the scale can count larger quantities of identical items.
5.5 Checkweighing Function
The checkweighing function allows you to determine if a weighed item falls within a predefined weight range (e.g., too light, acceptable, too heavy). Consult the scale's menu or dedicated button to set the upper and lower weight limits for checkweighing.
6. ጥገና እና እንክብካቤ
6.1 ጽዳት
ሚዛንን በመደበኛነት ለስላሳ, መamp cloth. For stubborn dirt, use a mild detergent. Do not use abrasive cleaners, solvents, or immerse the scale in water. Ensure no liquids enter the scale's internal components.
6.2 ማከማቻ
When not in use for extended periods, store the scale in a dry, dust-free environment at room temperature. If possible, use the original packaging for protection.
6.3 ልኬት
Regular calibration ensures the accuracy of your scale. The WTC 15/C1/K may feature internal or external calibration options. Refer to the on-screen menu for calibration procedures. External calibration typically requires certified calibration weights.
7. መላ መፈለግ
| ችግር | ሊሆን የሚችል ምክንያት | መፍትሄ |
|---|---|---|
| ያልተረጋጋ ንባቦች | Vibrations, drafts, unstable surface, temperature changes. | Relocate the scale to a stable environment. Close windows/doors. Allow scale to acclimatize. |
| ማሳያው 'OVERLOAD' ያሳያል | ክብደት ከከፍተኛው አቅም በላይ ነው። | Remove excess weight immediately. Do not exceed 15 kg. |
| ልኬት አይበራም። | ምንም ኃይል የለም፣ የተሳሳተ አስማሚ፣ ልቅ ግንኙነት። | Check power cable connection. Ensure outlet is functional. Try a different power adapter if available and compatible. |
| ትክክለኛ ያልሆኑ ንባቦች | Needs calibration, dirty platform, scale not level. | Perform calibration. Clean the weighing platform. Level the scale. |
8. ቴክኒካዊ ዝርዝሮች
- ከፍተኛ አቅም፡ 15 ኪ.ግ
- ተነባቢነት፡ 5 ግ
- የክብደት መድረክ፡ Stainless Steel (14.1 x 11.4 inches)
- ማሳያ፡- የኋላ ብርሃን LCD
- ተግባራት፡- Weighing, Counting, Checkweighing
- ቁሳቁስ፡ አይዝጌ ብረት (ፕላትፎርም)
- አምራች፡ ራድዋግ
- ዩፒሲ፡ 810000396818
9. ዋስትና እና ድጋፍ
For warranty information, please refer to the documentation provided with your purchase or contact Radwag customer support directly. If you encounter any issues not covered in this manual or require technical assistance, please visit the Radwag Store on Amazon ወይም የአካባቢዎን አከፋፋይ ያነጋግሩ።
