1. መግቢያ
This manual provides instructions for the proper installation, operation, and maintenance of your UpStart Components replacement bobbin case. This component is designed to restore optimal bobbin function to compatible sewing machines.
2. ተኳሃኝነት
This replacement bobbin case is specifically designed for use with the ዘፋኝ 6012 የልብስ ስፌት ማሽን. It is compatible with the original Singer part number #421326.
Please ensure your sewing machine model matches the specified compatibility before proceeding with installation.
3. መጫን
Follow these steps to replace the bobbin case in your sewing machine. Always ensure the machine is turned off and unplugged before performing any maintenance or part replacement.
- ማሽኑን ያዘጋጁ; Turn off and unplug your Singer 6012 sewing machine. Open the bobbin compartment cover, typically located beneath the needle plate.
- Remove Old Bobbin Case: Carefully remove the existing bobbin case. Depending on your machine's design, this may involve unlatching a small lever or simply lifting it out. Note its orientation for reference.
- Inspect New Bobbin Case: Examine the new UpStart Components bobbin case for any visible defects or damage.
- Insert New Bobbin Case: Hold the new bobbin case in the same orientation as the one you removed. Gently slide it into its designated position within the bobbin compartment. Ensure it seats correctly and any latches engage securely.
- ክፍል ዝጋ፡ የቦቢን ክፍል ሽፋኑን ይዝጉ።
- የሙከራ ተግባር Plug in and turn on your sewing machine. Perform a test stitch on a scrap piece of fabric to ensure proper operation and thread tension.
ምስል 1: ከፍተኛ view of the UpStart Components replacement bobbin case.

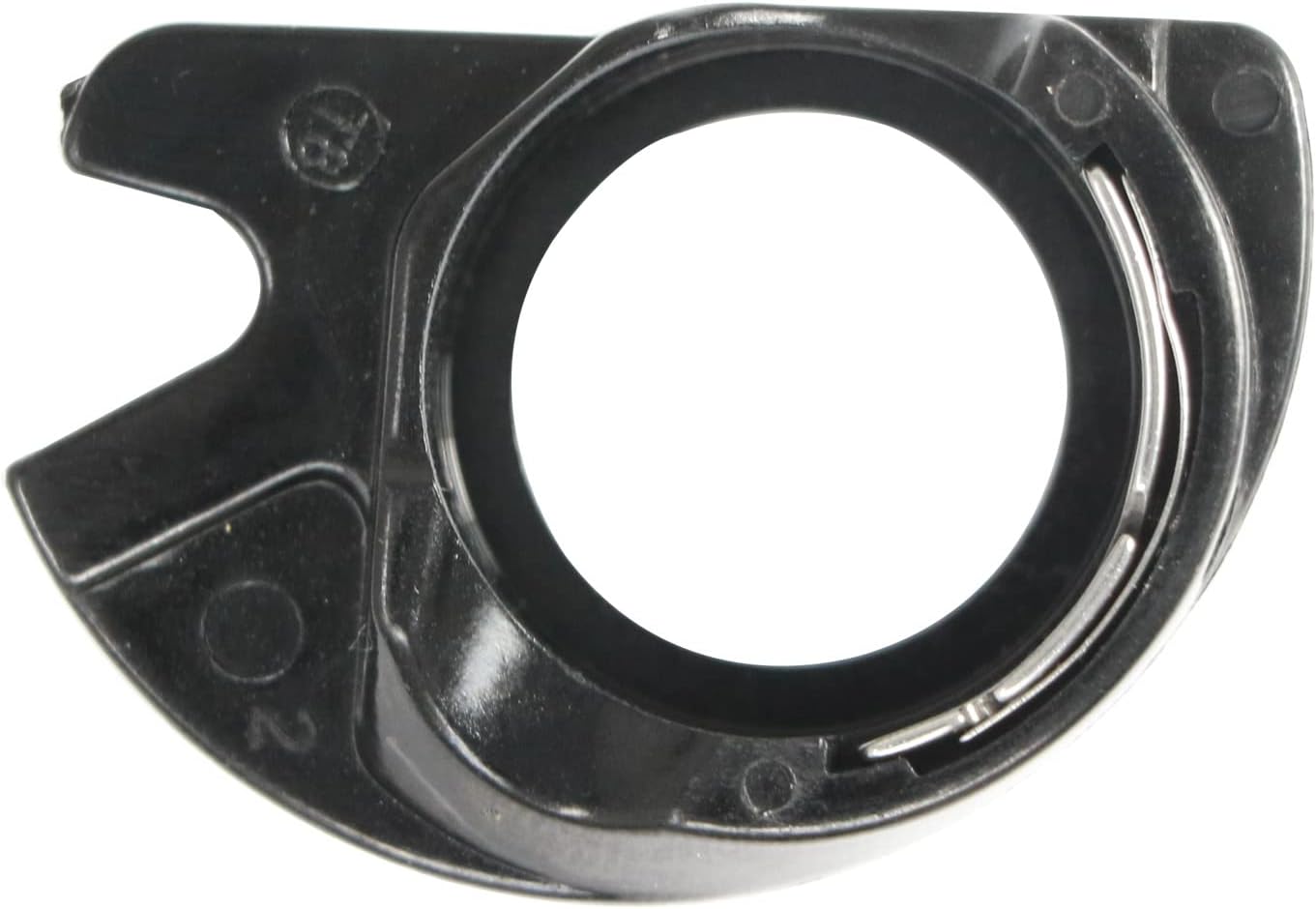

ምስል 2: ማዕዘን view of the bobbin case, illustrating its internal structure.
4. Operating the Bobbin Case
Once installed, the bobbin case functions as the original. Proper bobbin winding and insertion are crucial for smooth sewing.
- Wind the Bobbin: Wind your thread onto an empty bobbin according to your sewing machine's specific instructions. Ensure the bobbin is evenly wound.
- Insert Bobbin into Case: Place the wound bobbin into the bobbin case. The thread should unwind in the correct direction (usually counter-clockwise when viewed from the top, but refer to your sewing machine manual).
- Thread the Bobbin Case: Guide the bobbin thread through the tension spring slot on the bobbin case. You should feel a slight tension as the thread passes through.
- Insert Bobbin Case into Machine: Open the bobbin compartment and insert the loaded bobbin case into its position. Ensure it clicks or latches securely.
- Draw Up Bobbin Thread: Hold the needle thread, turn the handwheel towards you to lower and raise the needle, catching the bobbin thread. Pull both threads under the presser foot and towards the back of the machine.
ምስል 3: ጎን view of the bobbin case, showing its overall form.
5. ጥገና
Regular maintenance of your bobbin case helps ensure consistent stitch quality and extends its lifespan.
- አዘውትሮ ማጽዳት; Periodically remove the bobbin case and use a small brush or lint remover to clear any lint, dust, or broken thread accumulated around the case and within the bobbin compartment.
- ጉዳት መኖሩን ያረጋግጡ፡ Inspect the bobbin case for any nicks, burrs, or deformities, especially around the thread path and tension spring. Such damage can cause thread breakage or tension issues.
- Avoid Oiling: The bobbin case itself typically does not require oiling. Refer to your sewing machine's manual for specific lubrication points within the bobbin area.
6. መላ መፈለግ
If you encounter issues after installing the new bobbin case, consider the following common problems and solutions:
| ችግር | ሊሆን የሚችል ምክንያት | መፍትሄ |
|---|---|---|
| Thread tangles or jams in bobbin area | Incorrect bobbin insertion, lint buildup, damaged bobbin case. | Ensure bobbin is inserted correctly and thread is through the tension spring. Clean the bobbin area thoroughly. Inspect bobbin case for damage. |
| የተዘለሉ ስፌቶች | Incorrect needle, improper threading, bobbin case not seated correctly. | Verify needle type and size for fabric. Re-thread the entire machine. Ensure bobbin case is fully engaged. |
| Uneven stitches or poor tension | Bobbin thread not correctly tensioned, upper tension issues. | Ensure bobbin thread is properly routed through the bobbin case tension spring. Adjust upper thread tension as needed. |
7. ዝርዝሮች
- የምርት ዓይነት፡- Replacement Bobbin Case
- የምርት ስም፡ UpStart Components
- የሞዴል ቁጥር፡- SM-421326-DL158
- ጋር ተኳሃኝ፡ Singer 6012 Sewing Machine, Singer Part #421326
8. ዋስትና እና ድጋፍ
This UpStart Components replacement part is not affiliated with the original equipment manufacturer (OEM) and is not covered under any warranties offered by the original manufacturers. Any warranties for this product are offered solely by UpStart Battery.
For support or warranty inquiries regarding this UpStart Components product, please contact the seller or UpStart Battery directly.
