Baseus Super Mini Inflator Tyre Pump CRCQ000001 User Manual

1. መግቢያ

This manual provides detailed instructions for the safe and efficient operation of your Baseus Super Mini Inflator Tyre Pump, model CRCQ000001. Please read this manual thoroughly before using the device to ensure proper function and to prevent damage or injury. Keep this manual for future reference.

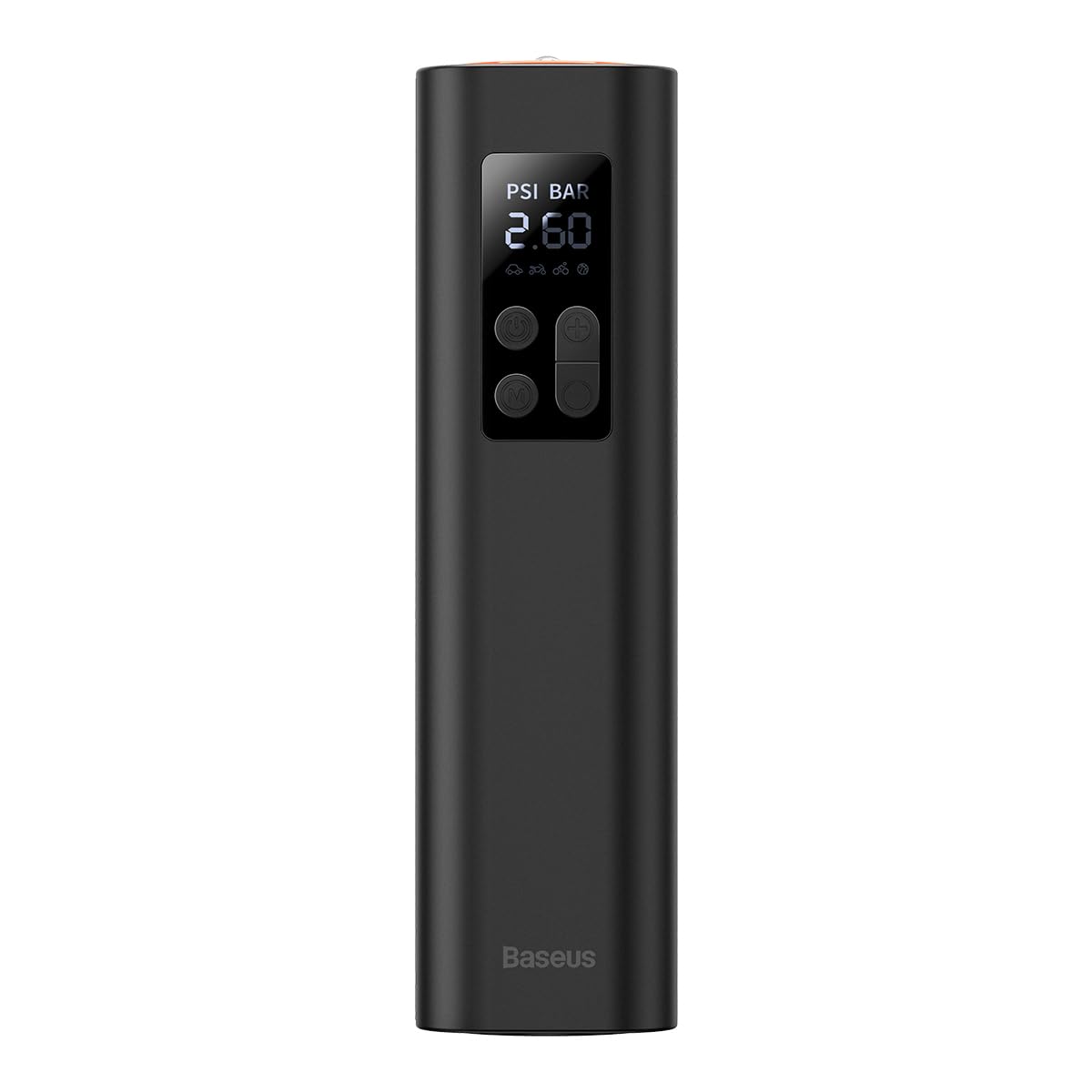

ምስል 1: የፊት view of the Baseus Super Mini Inflator Tyre Pump, showing the digital display and control buttons.

2. የምርት ባህሪዎች

• የታመቀ እና ተንቀሳቃሽ ንድፍ; Weighing approximately 480 grams with dimensions of 220x46x48mm, this inflator is designed for easy storage and transport.
• ፈጣን የዋጋ ግሽበት፡- Capable of inflating at 30 liters per minute, allowing for quick tire inflation. For example, a 175/65 R15 tire can be inflated from 2.3 bar to 2.5 bar in approximately 15 seconds.
• አስቀድሞ የተዘጋጀ የጎማ ግፊት፡- Allows users to set a desired pressure value, and the inflator will automatically stop once the target pressure is reached.
• Accurate Digital Display: Provides real-time pressure readings and allows for precise pressure setting.
• ሁለገብ አጠቃቀም፡- Equipped with various modes for different inflation needs, including car tires, motorcycle tires, bicycle tires, and sports balls.
• የተቀናጀ የግፊት መለኪያ; Functions as both an inflator and a tire pressure gauge.

ምስል 2 - ተጠናቀቀview of the inflator's key features, emphasizing its compact size, fast inflation capability, preset tire pressure function, and accurate digital display.

Figure 3: The inflator shown in hand, illustrating its compact and portable design for emergency use.

3. የደህንነት መመሪያዎች

Observe the following safety precautions to prevent electric shock, explosion, fire, and/or property damage:

• በሚሠራበት ጊዜ አየር ማስገቢያውን ያለ ክትትል አይተዉት.
• ልጆች በማይደርሱበት ቦታ ያስቀምጡ.
• ኢንፍላተሩን እርጥብ በሆኑ ሁኔታዎች ውስጥ ወይም ተቀጣጣይ ፈሳሾች ወይም ጋዞች አጠገብ አያንቀሳቅሱ።
• የዋጋ ግሽበትን ከመጀመርዎ በፊት የኢንፍሉዌንዛ ቱቦው ከቫልቭ ጋር ደህንነቱ በተጠበቀ ሁኔታ መገናኘቱን ያረጋግጡ።
• Avoid over-inflating tires. Always refer to the recommended pressure for your specific item (vehicle, bicycle, ball).
• ከመጠን በላይ ሙቀትን ለመከላከል በሚሰሩበት ጊዜ የአየር ማስገቢያ ቀዳዳዎችን አይዝጉ።
• If the device makes unusual noises or becomes excessively hot, turn it off immediately and disconnect it.
• ጥቅም ላይ በማይውልበት ጊዜ መሳሪያውን በቀዝቃዛና ደረቅ ቦታ ያከማቹ.
• Use only the charging cable provided or recommended by the manufacturer.

4. ማዋቀር

1. የመጀመሪያ ክፍያ Before first use, fully charge the inflator. Connect the charging cable to the device's charging port and to a suitable USB power adapter. The battery indicator on the display will show charging status.
2. የአየር ቧንቧን ያያይዙ; የአየር ቱቦውን በኢንፍላተሩ የአየር መውጫ ላይ ደህንነቱ በተጠበቀ ሁኔታ ይከርክሙት።
3. ኖዝል ይምረጡ፡ Choose the appropriate nozzle for the item you intend to inflate (e.g., Schrader valve for car tires, Presta valve adapter for some bicycles, needle for balls). Attach it to the end of the air hose.

5. የአሠራር መመሪያዎች

ምስል 4: ጎን view of the inflator, highlighting the control panel with power, mode, and pressure adjustment buttons.

1. አብራ፡ የኃይል ቁልፉን ተጭነው ይያዙ (U) for a few seconds to turn on the device. The digital display will illuminate.
2. ሁነታን ይምረጡ፡- ሁነታ ቁልፍን ተጫን (M) to cycle through different inflation modes: Car, Motorcycle, Bicycle, and Ball. Each mode has a default pressure range.
3. የዒላማ ግፊት ያዘጋጁ Use the '+' and '-' buttons to adjust the desired target pressure. The display will show the current pressure unit (PSI or BAR). Refer to your item's recommended pressure.
4. ከቫልቭ ጋር ይገናኙ፡ Securely attach the chosen nozzle and air hose to the item's valve. Ensure there are no air leaks. The display will show the current pressure of the item.
5. የዋጋ ግሽበት መጀመር፡- የኃይል አዝራሩን ይጫኑ (U) briefly to start inflation. The pump will begin to operate, and the display will show the increasinሰ ግፊት
6. ራስ-አቁም ተግባር፡- The inflator will automatically stop once the preset target pressure is reached.
7. በእጅ ማቆሚያ; To stop inflation manually at any time, press the power button (U) እንደገና።
8. ግንኙነት አቋርጥ፡ Carefully disconnect the air hose from the valve. Some air may escape during disconnection, which is normal.
9. ኃይል ዝጋ: የኃይል ቁልፉን ተጭነው ይያዙ (U) መሳሪያውን ለማጥፋት.

Figure 5: The inflator in use, demonstrating the one-key preset and auto-stop inflation feature when connected to a car tire.

Figure 6: Illustration of the inflator's various modes and their typical pressure ranges for different items, including car, motorcycle, bicycle, and ball inflation.

6. ጥገና

• ማጽዳት፡ Wipe the exterior of the inflator with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners. Ensure the air vents are clear of dust and debris.
• ማከማቻ፡ Store the inflator in a cool, dry place, away from direct sunlight and extreme temperatures. Keep the air hose and nozzles organized to prevent damage.
• የባትሪ እንክብካቤ የባትሪ ዕድሜን ለማራዘም በተደጋጋሚ ባትሪውን ሙሉ በሙሉ ከመሙላት ይቆጠቡ። ለረጅም ጊዜ አገልግሎት ላይ የማይውል ቢሆንም (ለምሳሌ በየ3 ወሩ አንድ ጊዜ) መሳሪያውን በመደበኛነት ኃይል ይሙሉ።
• የሆስ ምርመራ; Periodically check the air hose for cracks, kinks, or damage. Replace if necessary to ensure efficient and safe operation.

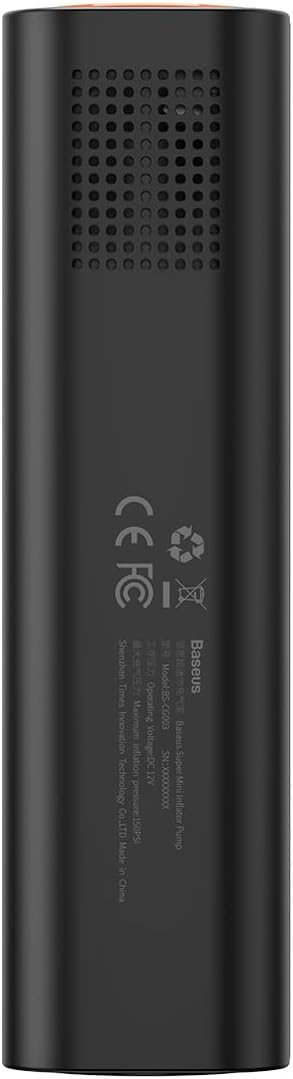

ምስል 7: የኋላ view of the inflator, showing the air vents which should be kept clear for proper operation and cooling.

7. መላ መፈለግ

• መሳሪያ አይበራም Ensure the battery is charged. Connect to a power source and try again. If the issue persists, contact customer support.
• Inflator not starting: Check if the target pressure is set correctly and is higher than the current pressure. Ensure the air hose is securely attached.
• Slow inflation or no air output: Verify that the nozzle is correctly attached to the valve and there are no leaks. Check if the air hose is kinked or blocked. Ensure the battery has sufficient charge.
• የተሳሳተ የግፊት ንባብ; Ensure the hose is fully connected to the valve without leaks. Calibrate the device if a calibration option is available (refer to specific product features if applicable).
• የመሣሪያው ሙቀት መጨመር; Stop operation immediately and allow the device to cool down. Ensure air vents are not blocked. Avoid continuous operation for excessively long periods.

8. ዝርዝሮች

9. ዋስትና እና ድጋፍ

For warranty information or technical support, please refer to the warranty card included with your product or visit the official Baseus webጣቢያ. የግዢ ደረሰኝህን እንደ ግዢ ማረጋገጫ አቆይ።
