Yaheetech 300 cm Manual Retractable Awning User Manual

መግቢያ

Thank you for choosing the Yaheetech 300 cm Manual Retractable Awning. This awning is designed to provide adjustable shade and privacy for your balcony, terrace, or garden. Constructed with durable metal and polyurethane-coated polyester fabric, it offers resistance to wear and sun protection. Please read this manual carefully before assembly and use to ensure safe and proper operation.

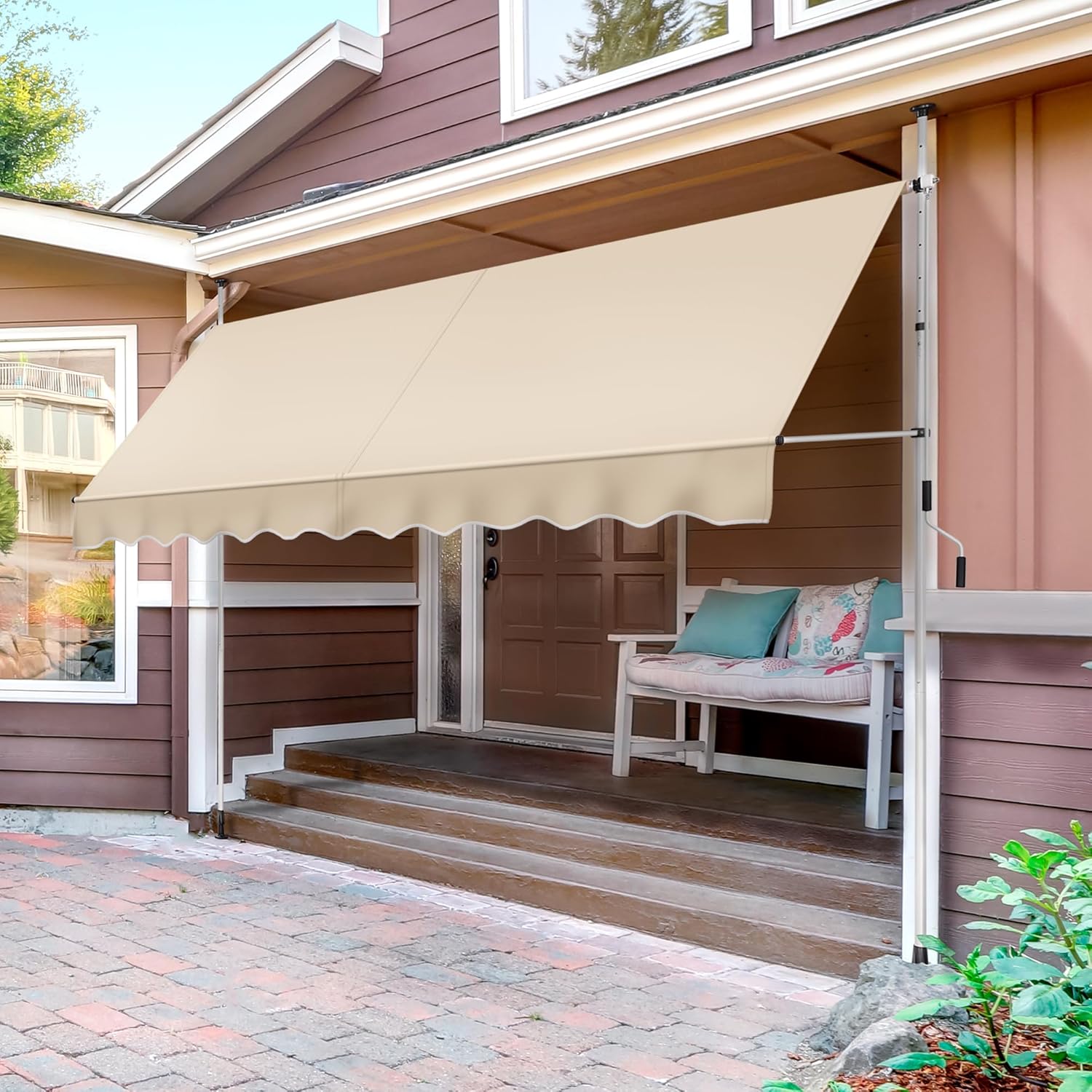

Image: Yaheetech 300 cm Manual Retractable Awning installed on a house porch.

የደህንነት መረጃ

• Keep out of reach of children during use and assembly.
• Do not use near heat sources or water.
• Ensure the installation surface is flat and stable.
• Close the awning during extreme weather conditions (strong winds, heavy rain, snow) to prevent damage and prolong its lifespan.
• ከመጠቀምዎ በፊት ሁሉም ግንኙነቶች ደህንነቱ በተጠበቀ ሁኔታ መያዛቸውን ያረጋግጡ።

Image: Awning fabric demonstrating water resistance and sun protection, with a warning for extreme weather.

የጥቅል ይዘቶች

ስብሰባ ከመጀመርዎ በፊት ሁሉም ክፍሎች መኖራቸውን ያረጋግጡ። የጎደሉ ወይም የተበላሹ ክፍሎች ካሉ፣ እባክዎ የደንበኞች አገልግሎትን ያነጋግሩ።

• Awning Fabric (Polyester with PU coating)
• የላይኛው ድጋፍ አሞሌ
• Lower Support Bar
• Vertical Support Poles (Adjustable height)
• አግድም ድጋፍ ክንዶች
• ክራንች እጀታ
• Mounting Hardware (Screws, pins, end caps, bases)

ምስል፡ ዝርዝር view of key components including the steel frame, waterproof fabric, and adjustable parts.

የመሰብሰቢያ መመሪያዎች

Assembly typically requires two people. Follow these steps carefully:

Step 1: Prepare the Fabric and Bars

1. Unroll the awning fabric completely on a clean, flat surface.
2. Insert the upper support bar into the top sleeve of the fabric. Secure it with the provided screws.
3. Insert the lower support bar into the bottom sleeve of the fabric. Secure it with the provided screws.

Step 2: Assemble the Vertical Support Poles

1. Connect the sections of the vertical support poles. Ensure the spring pins click into place.
2. Attach the top cap and bottom anti-slip base to each pole.
3. Adjust the height of the poles by extending the sections and securing them with the pins. The installation height should be adjusted according to your specific site.

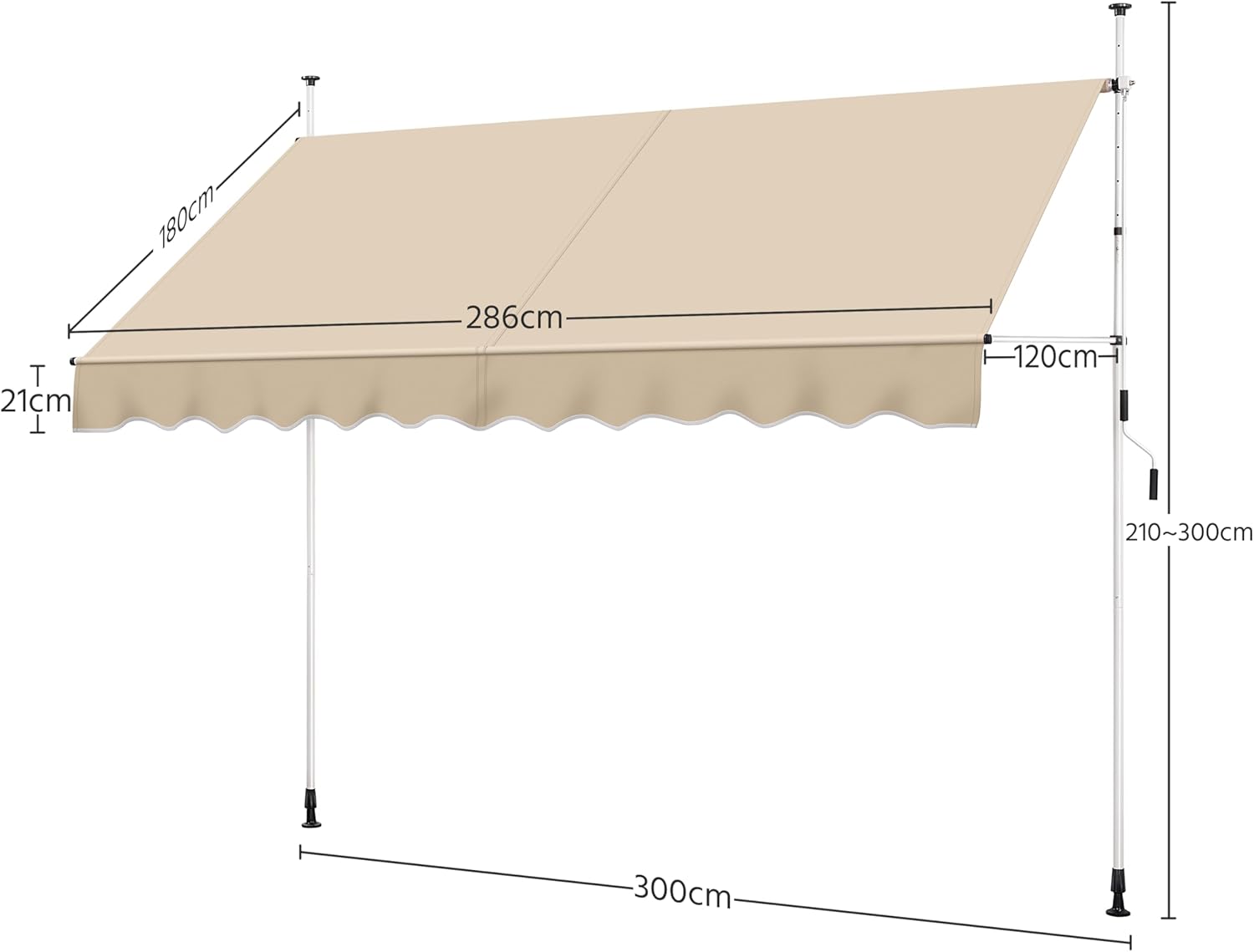

Image: Awning dimensions and adjustable pole height (210-300 cm).

Step 3: Attach Horizontal Support Arms and Crank Mechanism

1. Assemble the crank handle by connecting its sections.
2. Attach the crank mechanism to one end of the lower support bar.
3. Connect the horizontal support arms to the vertical poles using the provided clamps.
4. Attach the other end of the horizontal support arms to the upper support bar.

Image: Visual guide for installation, privacy screen transformation, and crank mechanism.

Step 4: Final Installation and Adjustment

1. Position the assembled awning in the desired location. Ensure the vertical poles are firmly pressed against the ceiling and floor.
2. Turn the bottom knob on each vertical pole to slightly adjust the pole height and create tension, ensuring stability. The adjustable height range is 0-3 cm for fine-tuning.
3. Ensure the awning is level and securely installed.

For a visual guide, please refer to the official product video below:

የአሠራር መመሪያዎች

ሽፋኑን ማራዘም እና መመለስ

• To extend the awning, insert the crank handle into the designated slot on the side and turn it clockwise.
• To retract the awning, turn the crank handle counter-clockwise.
• Adjust the extension as needed to achieve the desired shade.

Adjusting Height and Inclination

• The height of the awning can be adjusted by repositioning the horizontal support arms on the vertical poles. Loosen the clamps, slide the arms to the desired height, and re-tighten the clamps.
• The inclination of the awning is adjusted by the position of the horizontal support arms. Lowering the arms will increase the inclination, providing more vertical shade or privacy.

Image: Awning in two configurations: fully extended for shade and lowered to provide privacy.

Image: Hand operating the crank handle to adjust the awning's extension.

ጥገና

• ጨርቁን ማጽዳት; The polyester fabric with PU coating is resistant to wear. Clean the fabric with a soft cloth and mild soap solution. Rinse thoroughly with water and allow it to air dry completely before retracting. Do not use harsh chemicals or abrasive cleaners.
• የፍሬም እንክብካቤ Regularly inspect the metal frame for any signs of rust or damage. Clean metal parts with a damp ጨርቅ.
• ቅባት፡ Periodically apply a small amount of lithium grease or similar lubricant to the moving parts of the crank mechanism and support arm joints to ensure smooth operation and extend product life.
• ወቅታዊ ማከማቻ፡ For prolonged periods of non-use or during winter months, it is recommended to retract the awning fully and, if possible, store it in a dry, protected area to prevent wear from harsh weather conditions.

መላ መፈለግ

• Awning not stable: Ensure the vertical support poles are correctly adjusted to create sufficient tension between the floor and ceiling. Check that all screws and pins are securely fastened.
• የማራዘም/የማፈግፈግ ችግር፡ Check for any obstructions in the mechanism or fabric. Apply lubricant to the crank mechanism and moving joints if resistance is felt.
• የጨርቅ መበላሸት; Ensure the horizontal support arms are correctly positioned and secured, and the vertical poles are providing adequate tension.

ዝርዝሮች

Image: Product specifications table.

ዋስትና እና ድጋፍ

For warranty information or technical support, please refer to the product packaging or contact Yaheetech customer service directly. Keep your purchase receipt for any warranty claims.
