ጠቃሚ የደህንነት መረጃ
Please read these instructions carefully before installation. If you do not understand these instructions or have doubts about the safety of the installation, please contact a qualified installer. The manufacturer is not liable for damage or injury caused by incorrect assembly or use.
- የክብደት አቅም; Do not exceed the maximum weight capacity specified for your model. Overloading can result in serious injury or property damage.
- የግድግዳ መዋቅር; The wall mount must be securely attached to a suitable wall structure. Do not install on drywall alone. Ensure the mounting surface can safely support the combined weight of the mount and the television.
- VESA ተኳኋኝነት Verify your TV's VESA mounting pattern (hole spacing) is compatible with this mount.
- ልጆች፡- ልጆችን ከመጫኛ ቦታ ያርቁ. ትናንሽ ክፍሎች የመታፈን አደጋ ሊሆኑ ይችላሉ.
- መሳሪያዎች፡ ለመጫን ተስማሚ መሳሪያዎችን ይጠቀሙ.
የምርት ተኳኋኝነት
This instruction manual covers two models of PERLESMITH Full Motion TV Wall Mounts, PSMFK7 and PSMFK1. Please identify your model and confirm your television's specifications before proceeding with installation.
Model PSMFK7
- የማያ መጠን ተኳኋኝነት Most 26-55 inch TVs.
- የክብደት አቅም; እስከ 70 ፓውንድ (31.7 ኪ.ግ)።
- የVESA ቅጦች፡ 100x100mm to 400x400mm.
Figure 1: PSMFK7 Model Compatibility Overview. This image illustrates the supported screen sizes (26-55 inches), maximum weight capacity (70 lbs), and VESA mounting patterns (100x100mm to 400x400mm) for the PSMFK7 TV wall mount.
Model PSMFK1
- የማያ መጠን ተኳኋኝነት Most 26-60 inch TVs.
- የክብደት አቅም; እስከ 77 ፓውንድ (35 ኪ.ግ)።
- የVESA ቅጦች፡ Up to 400x400mm (16x16 inches).
Figure 2: PSMFK1 Model Compatibility and Wall Types. This image details the wide compatibility of the PSMFK1 model, supporting TVs up to 60 inches and various VESA patterns. It also indicates suitability for single wood stud, brick, and concrete walls.
Confirm Before Purchase
ከመግዛቱ በፊትasing or installing, ensure your TV meets the following criteria:
- የቲቪ ክብደት፡ Your TV's weight is within the mount's capacity (70 lbs for PSMFK7, 77 lbs for PSMFK1).
- የቲቪ መጠን፡ Your TV's screen size is within the recommended range (26-55" for PSMFK7, 26-60" for PSMFK1).
- የVESA ስርዓተ-ጥለት፡ Your TV's VESA mounting holes match one of the supported patterns.
- የግድግዳ ዓይነት: Your wall is suitable for installation (single wood stud, concrete, or brick).
- Cable Blockage: Ensure the mounting holes on your TV do not block any cables or inputs.
Figure 3: Pre-Purchase Confirmation Checklist. This image provides a visual summary of essential checks to perform before installing the TV mount, including TV weight, size, VESA, wall type, and potential cable interference.
ምን ይካተታል
Carefully unpack the box and ensure all parts are present and undamaged. If any parts are missing or damaged, do not attempt to install. Contact customer service for assistance.

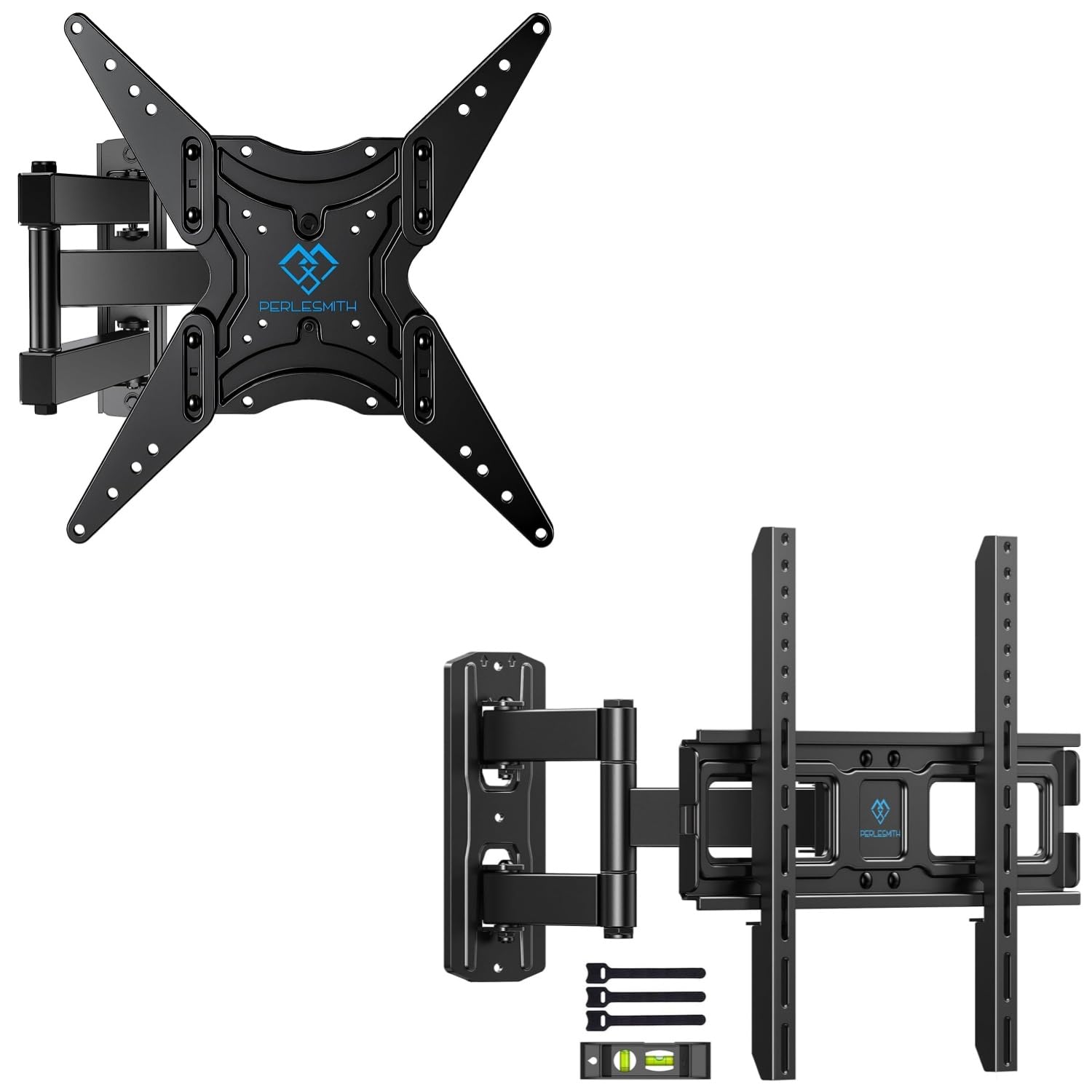

Figure 4: Package Contents. This image displays the main components of the PERLESMITH full motion TV wall mount kit, including the mount assembly, a bubble level for installation, and cable ties for cable management.
የተለመደው የጥቅል ይዘቶች፡
- Full Motion TV Wall Mount Assembly
- የቴሌቪዥን ቅንፎች (x2)
- የመጫኛ ሃርድዌር ኪት (የተለያዩ ዊንጮች፣ ማጠቢያዎች፣ ስፔሰርስ፣ መልሕቆች)
- የአረፋ ደረጃ
- የኬብል ማሰሪያዎች (x3)
- መመሪያ መመሪያ
ማዋቀር እና መጫን
ትክክለኛ ጭነት ለቴሌቪዥንዎ ደህንነት እና መረጋጋት ወሳኝ ነው። እነዚህን ደረጃዎች በጥንቃቄ ይከተሉ።
ከመጀመርዎ በፊት
- Gather all necessary tools (e.g., drill, stud finder, level, screwdriver, tape measure).
- Ensure you have a clear, safe workspace.
- Confirm your TV and wall meet the compatibility requirements.
Wall Type Considerations
This mount is designed for installation on:
- Single Wood Stud: Locate the center of the wood stud using a stud finder.
- Solid Concrete Wall: Requires a masonry drill bit and concrete anchors.
- የጡብ ግድግዳ; Requires a masonry drill bit and brick anchors.
ማስጠንቀቂያ፡- Do not install this TV mount on drywall alone. Drywall cannot support the weight of the mount and TV.
አጠቃላይ የመጫኛ ደረጃዎች
- የቴሌቪዥን ቅንፎችን ከቴሌቪዥን ጋር ያያይዙ፡ Secure the vertical TV brackets to the back of your television using the appropriate screws, washers, and spacers from the hardware kit. Ensure the brackets are centered and level.
- Determine Wall Plate Position: የግድግዳ ሰሌዳውን በፈለጉት መጠን ግድግዳው ላይ ይያዙት viewing height. Use the included bubble level to ensure it is perfectly horizontal. Mark the drilling locations.
- የፓይለት ጉድጓዶች ቁፋሮ; Drill pilot holes at the marked locations. For wood studs, drill directly. For concrete or brick, use a masonry bit and insert concrete/brick anchors.
- ደህንነቱ የተጠበቀ የግድግዳ ሰሌዳ፦ Attach the wall plate to the wall using the lag bolts and washers. Tighten securely, but do not overtighten.
- ቴሌቪዥን በግድግዳ ሰሌዳ ላይ ያንሱት፦ Carefully lift the TV (with brackets attached) and hook the brackets onto the wall plate. Ensure the TV is securely seated.
- ደህንነቱ የተጠበቀ ቴሌቪዥን ለመጫን፦ Use the safety screws or locking mechanisms on the TV brackets to secure the TV to the wall mount, preventing accidental dislodgement.
Figure 5: Centering Your TV. This image demonstrates a TV mounted centrally on a wall, providing a visual guide for optimal placement above a feature like a fireplace.
Figure 6: Corner Mounting Example. This image illustrates how the full motion design allows for effective TV placement in a room corner, maximizing viewing ማዕዘኖች.
የአሠራር ማስተካከያዎች
The full motion design allows for flexible viewing angles. Adjustments can be made after installation.
- ዘንበል The TV can be tilted +5° upwards to -15° downwards to reduce glare or optimize viewing from different heights. Loosen the tilt knobs on the TV brackets, adjust to the desired angle, and re-tighten.
- ማወዛወዝ፡ The articulating arm allows the TV to swivel up to +/-90° (180° total range) left or right, depending on TV size and wall distance. Gently push or pull the TV to the desired angle.
- ማራዘሚያ/ማፈግፈግ፡ The mount can extend the TV up to 19.17 inches (48.7 cm) from the wall for optimal viewing or retract it back to 3.2 inches (8.1 cm) for a low-profile ተመልከት.
- ደረጃ መስጠት፡ After installation, the TV can be leveled +/-3° to correct any minor misalignments. Loosen the leveling screws, adjust, and re-tighten.
Figure 7: Full Motion Adjustments. This image visually explains the tilt, extension, swivel, and leveling features of the TV mount, demonstrating the range of motion available for optimal viewing
ጥገና
መደበኛ ጥገና የቲቪዎ ግድግዳ ሰቀላ ረጅም ዕድሜ እና ደህንነቱ የተጠበቀ አሠራር ያረጋግጣል።
- ማጽዳት፡ አቧራ ለማስወገድ ማሰሪያውን ለስላሳና ደረቅ ጨርቅ ይጥረጉ። ሻካራ ማጽጃዎችን ወይም መሟሟቶችን ያስወግዱ።
- ግንኙነቶችን ይፈትሹ፡ ጥብቅ እና ደህንነታቸው የተጠበቀ መሆናቸውን ለማረጋገጥ ሁሉንም ብሎኖች እና ግንኙነቶች በየጊዜው ያረጋግጡ። አስፈላጊ ከሆነ እንደገና አጥብቀው ይያዙ.
- ለጉዳት ምርመራ; የመበስበስ፣ የዝገት ወይም የጉዳት ምልክቶች ካሉ በየጊዜው መገጣጠሚያውን ይመርምሩ። ማንኛውም ችግር ከተገኘ፣ መጠቀም ያቁሙ እና የደንበኞች ድጋፍን ያነጋግሩ።
መላ መፈለግ
በመጫን ጊዜ ወይም በኋላ ችግሮች ካጋጠሙዎት የሚከተሉትን የተለመዱ ችግሮች እና መፍትሄዎች ይመልከቱ።
| ችግር | ሊሆን የሚችል ምክንያት | መፍትሄ |
|---|---|---|
| ከተጫነ በኋላ ቲቪ ደረጃ አይደለም. | በመጫን ጊዜ አነስተኛ የሆነ የቦታ አቀማመጥ አለመመጣጠን። | Use the +/-3° leveling adjustment feature. Loosen leveling screws, adjust, and re-tighten. |
| ማውንት ልቅ ወይም ያልተረጋጋ ስሜት ይሰማዋል። | Screws not fully tightened; incorrect wall anchors used; wall structure insufficient. | Ensure all mounting screws are securely tightened. Verify correct anchors for your wall type. If the wall is insufficient, consult a professional. |
| ማዘንበል ወይም ማዞርን ማስተካከል አስቸጋሪ ነው። | Adjustment knobs/bolts are too tight. | Loosen the relevant adjustment knobs or bolts slightly, make the adjustment, then re-tighten to hold the position. |
| ቴሌቪዥን ከተራራው ጋር አይጣጣምም. | Incorrect TV size, weight, or VESA pattern for the mount model. | Verify your TV's specifications against the mount's compatibility (refer to Product Compatibility section). |
የምርት ዝርዝሮች
| ባህሪ | PSMFK7 Model | PSMFK1 Model |
|---|---|---|
| የመጫኛ አይነት | የግድግዳ ተራራ | |
| የእንቅስቃሴ አይነት | መገጣጠም፣ ማዞር፣ ማዘንበል | |
| ተስማሚ የማያ ገጽ መጠኖች | 26 - 55 ኢንች | 26 - 60 ኢንች |
| ከፍተኛው የክብደት አቅም | 70 ፓውንድ (31.7 ኪ.ግ) | 77 ፓውንድ (35 ኪ.ግ) |
| የ VESA ተኳኋኝነት | 100x100 ሚሜ እስከ 400x400 ሚሜ | እስከ 400x400 ሚ.ሜ |
| ዘንበል አንግል | +5° / -15° | |
| ሽክርክሪት አንግል | +/-90° (up to 180° total, depending on TV size) | |
| የደረጃ ማስተካከያ | +/-3° | |
| ቅጥያ ከግድግዳ | 3.2 ኢንች (የተመለሰ) ወደ 19.17 ኢንች (የተራዘመ) | |
| ቁሳቁስ | ቅይጥ ብረት | |
| ተስማሚ የግድግዳ ዓይነቶች | Single Wood Stud, Solid Concrete, Brick Wall | |
ዋስትና እና ድጋፍ
For warranty information or technical support, please refer to the product packaging or contact PERLESMITH customer service directly. Keep your purchase receipt for warranty claims.
If you have any questions or require assistance with installation or operation, please do not hesitate to reach out to our support team.
