5 CORE TW BLT 150 CH Car Audio Tweeters Instruction Manual

መግቢያ

Thank you for choosing the 5 CORE TW BLT 150 CH Car Audio Tweeters. This manual provides essential information for the proper installation, operation, and maintenance of your new tweeters. Please read this manual thoroughly before installation to ensure optimal performance and safety.

የደህንነት መረጃ

Always prioritize safety during installation and operation. Improper installation can lead to damage to the product, vehicle, or personal injury.

• ማንኛውንም የኤሌክትሪክ ሥራ ከመጀመርዎ በፊት የተሽከርካሪውን ባትሪ ያላቅቁ።
• ሁሉም ሽቦዎች በአግባቡ የተሸፈኑ እና አጭር ዑደት እንዳይኖርባቸው ደህንነቱ የተጠበቀ መሆኑን ያረጋግጡ።
• Do not mount speakers in locations that obstruct the driver's view ወይም በተሽከርካሪ ደህንነት ባህሪያት ላይ ጣልቃ መግባት.
• ስለ ማንኛውም የመጫን ሂደቱ ክፍል እርግጠኛ ካልሆኑ ባለሙያ የመኪና ድምጽ ጫኚን ያማክሩ።
• የመስማት ችግር ሊያስከትል ለሚችል ከፍተኛ መጠን ያለው ድምጽ ለረጅም ጊዜ ከመጋለጥ ይቆጠቡ።

የጥቅል ይዘቶች

ሁሉም እቃዎች በጥቅሉ ውስጥ መኖራቸውን ያረጋግጡ፡-

• 2x 5 CORE TW BLT 150 CH Tweeter Speakers

Note: Additional wiring or mounting hardware may be required and is sold separately.

ባህሪያት

The 5 CORE TW BLT 150 CH Tweeters are designed to enhance your car audio experience with clear and detailed high-frequency sound.

• ከፍተኛ አፈጻጸም፡ Combined 600W PMPO and 60W RMS power for clear sound without distortion.
• Built-in Crossover: Filters bass frequencies, ensuring the tweeter receives the correct frequency range.
• ሰፊ የድግግሞሽ ክልል፡ 2kHz-20kHz range for detailed and natural treble.
• ዝቅተኛ ግፊት; 4 Ohm impedance for compatibility with many car ampአነፍናፊዎች።
• ከፍተኛ ስሜታዊነት; 106dB sensitivity improves efficiency.
• ዘላቂ ግንባታ; Features a Titanium Diaphragm and Aluminum frame for longevity.

ማዋቀር እና መጫን

Follow these general steps for installing your 5 CORE tweeters. Specific vehicle requirements may vary.

1. እቅድ ማውጣት እና ዝግጅት

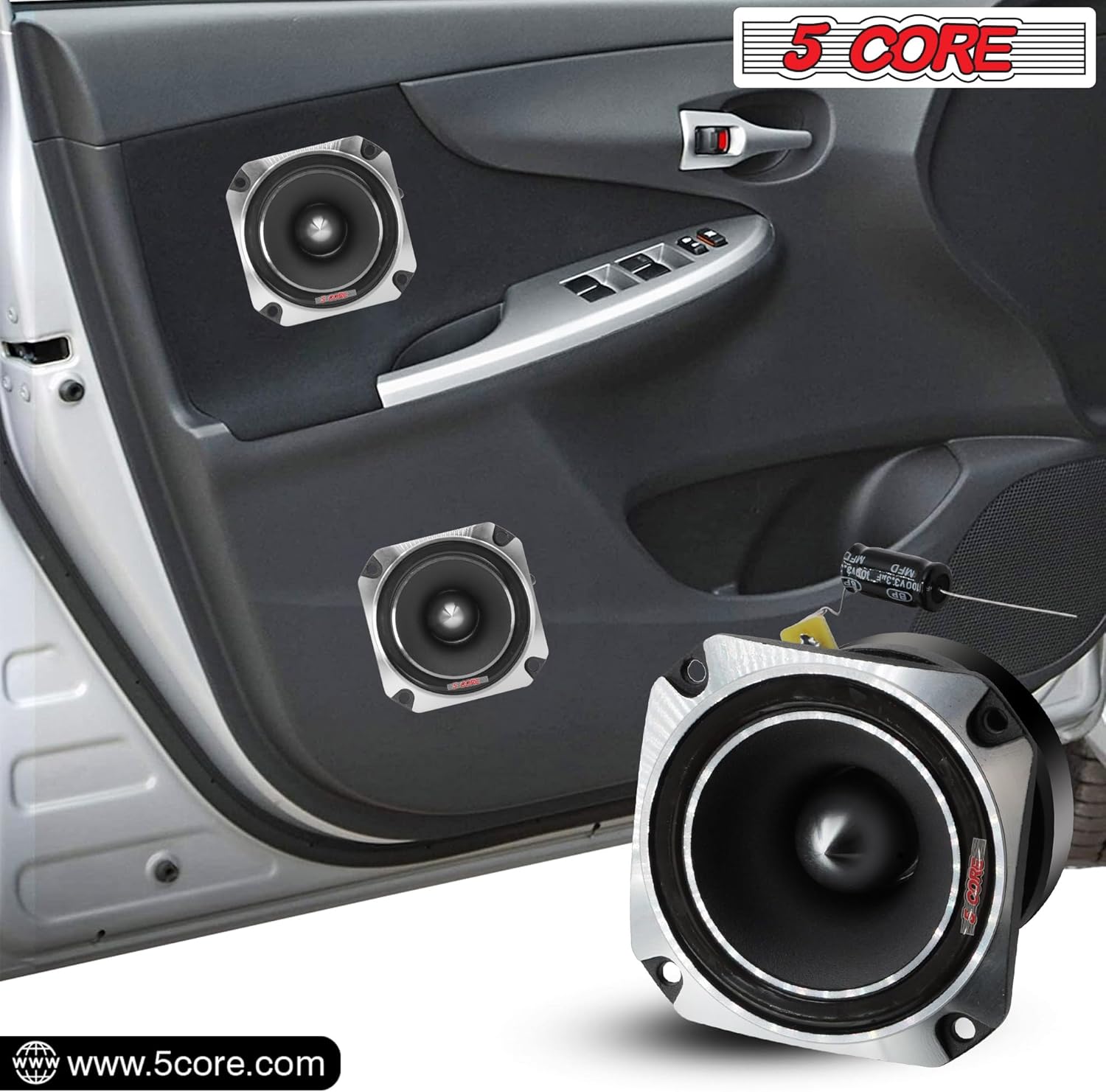

1. የመጫኛ ቦታን ይምረጡ፡- Select a location in your vehicle that allows for optimal sound dispersion and does not obstruct visibility or safety features. Common locations include dashboard corners, A-pillars, or door panels.
2. ማጽዳትን ያረጋግጡ፡ Ensure there is sufficient depth and width behind the mounting surface for the tweeter body.
3. የመሰብሰቢያ መሳሪያዎች፡- You will likely need wire strippers, crimpers, screwdrivers, a drill, and possibly a hole saw.
4. የባትሪውን ግንኙነት አቋርጥ፡ ማንኛውንም የኤሌክትሪክ ሥራ ከመጀመርዎ በፊት የተሽከርካሪዎን የባትሪ ኔጌቲቭ ተርሚናል ሁልጊዜ ያላቅቁ።

2. ሽቦ

The 5 CORE TW BLT 150 CH tweeters feature a built-in crossover (bass blocking capacitor) to protect them from low frequencies. Connect them directly to your amplifier's high-pass filtered output or to the high-frequency output of your existing car audio system.

1. ሽቦዎችን መለየት; Determine the positive (+) and negative (-) speaker wires from your ampሊፋይር ወይም የጭንቅላት ክፍል.
2. Connect Tweeter: Connect the positive terminal of the tweeter to the positive speaker wire and the negative terminal to the negative speaker wire. Ensure a secure connection, preferably by soldering or using crimp connectors.
3. ደህንነቱ የተጠበቀ ሽቦ; Route all wiring safely, away from moving parts, sharp edges, and heat sources. Use zip ties or electrical tape to secure the wires.

3. በመጫን ላይ

1. የመጫኛ ወለል ያዘጋጁ; If drilling new holes, use appropriate tools and ensure the hole size matches the tweeter's dimensions.
2. Secure Tweeter: Mount the tweeter securely using the provided screws or appropriate mounting hardware. Ensure it is firmly in place to prevent vibrations.

4. የመጨረሻ ደረጃዎች

1. ባትሪውን እንደገና ማገናኘት; Once all connections are secure and mounting is complete, reconnect the negative terminal of your vehicle's battery.
2. የሙከራ ስርዓት Turn on your car audio system and test the tweeters at a low volume. Gradually increase the volume to ensure proper operation and sound quality.

የአሠራር መመሪያዎች

The 5 CORE TW BLT 150 CH tweeters operate as part of your car's existing audio system. Once installed, they will automatically reproduce high-frequency sounds from your audio source.

• የድምጽ ምንጭ፡- Play audio from your car's head unit, radio, or connected devices.
• የድምጽ መቆጣጠሪያ፡- Adjust the overall system volume through your car's head unit.
• የድምፅ ቁጥጥር; Use your car audio system's equalizer or tone controls (treble, bass) to fine-tune the sound to your preference. Avoid excessive treble boost, which can lead to harsh sound or tweeter damage.

ጥገና

Proper care will ensure the longevity and performance of your tweeters.

• ማጽዳት፡ Gently wipe the tweeter's surface with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners.
• ምርመራ፡- Periodically check wiring connections for looseness or corrosion.
• ከመጠን በላይ መጨናነቅን ያስወግዱ; While these tweeters handle significant power, avoid continuously playing audio at extremely high, distorted volumes, which can damage the voice coil.

መላ መፈለግ

If you encounter issues with your tweeters, refer to the following common problems and solutions:

If the problem persists after trying these solutions, contact 5 CORE customer support or a qualified car audio technician.

ዝርዝሮች

ይፋዊ የምርት ቪዲዮ

Watch this official product video for an overview of the 5 CORE TW BLT 150 CH Tweeters and their features.

ዋስትና እና ድጋፍ

The 5 CORE TW BLT 150 CH Tweeters come with a የ 1 ወር ዋስትና ከተገዛበት ቀን ጀምሮ. ይህ ዋስትና በመደበኛ አጠቃቀም ላይ የምርት ጉድለቶችን ይሸፍናል.

For technical support, warranty claims, or further assistance, please contact 5 CORE customer service through their official webምርቱ የተገዛበት ጣቢያ ወይም ቸርቻሪ።

ን መጎብኘት ይችላሉ። 5 CORE Store on Amazon ለበለጠ መረጃ እና ምርቶች.
