መግቢያ
This manual provides essential instructions for the safe installation, operation, and maintenance of your VEVOR Dual Speed 1.5HP Above Ground Pool Pump, Model HAP1100A 2/4. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the product. Keep this manual for future reference.
The VEVOR Dual Speed Above Ground Pool Pump is designed for efficient water circulation.
የደህንነት መረጃ
የሚከተሉትን ጨምሮ የእሳት፣ የኤሌክትሪክ ንዝረት እና በሰዎች ላይ የሚደርሰውን ጉዳት ለመቀነስ መሰረታዊ የደህንነት ጥንቃቄዎችን ይከተሉ።
- የኤሌክትሪክ ደህንነት; Ensure the pump is connected to a properly grounded outlet. Do not operate the pump if the power cord or plug is damaged. Avoid using extension cords. All electrical connections should be performed by a qualified electrician and comply with local codes.
- Water and Chemical Safety: Do not operate the pump when people are in the pool. Always disconnect power before servicing. Avoid contact with moving parts. The pump is designed for use with chlorinated water; however, ensure proper chemical balance to prevent corrosion.
- አቀማመጥ፡- Install the pump on a solid, level surface, protected from direct sunlight and excessive moisture. Ensure adequate ventilation around the motor.
- የሙቀት መጠን፡ Do not exceed the maximum water temperature of 122°F (50°C).
ምርት አልቋልview

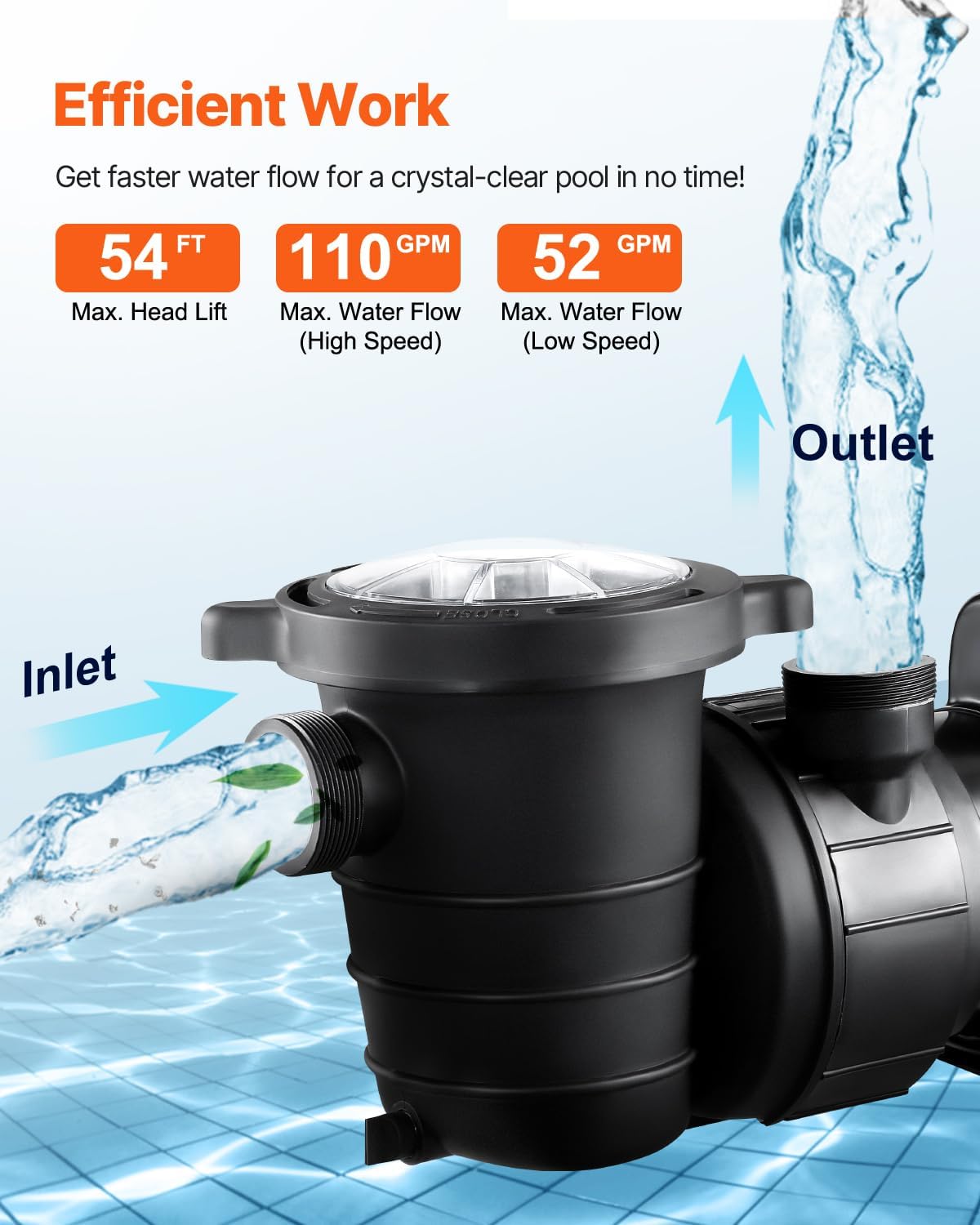

The VEVOR Dual Speed Pool Pump features a robust design for effective water filtration and circulation in above-ground pools, hot tubs, and spas. Key components include:
- 1.5 HP Premium Copper Motor: Provides efficient and stable operation with built-in thermal protection.
- Corrosion-Resistant PP Shell: Ensures durability and resistance to chlorinated water.
- ባለሁለት ፍጥነት አማራጮች፡- High speed (110 GPM, 54 ft lift) for rapid circulation and low speed (52 GPM, 14 ft lift) for energy-efficient maintenance.
- Extra-Large Strainer Basket: Detachable and transparent lid for easy monitoring and cleaning of debris.
- የመሬት ማረፊያ ተርሚናል; For enhanced electrical safety.
Key components of the VEVOR Dual Speed Pool Pump.

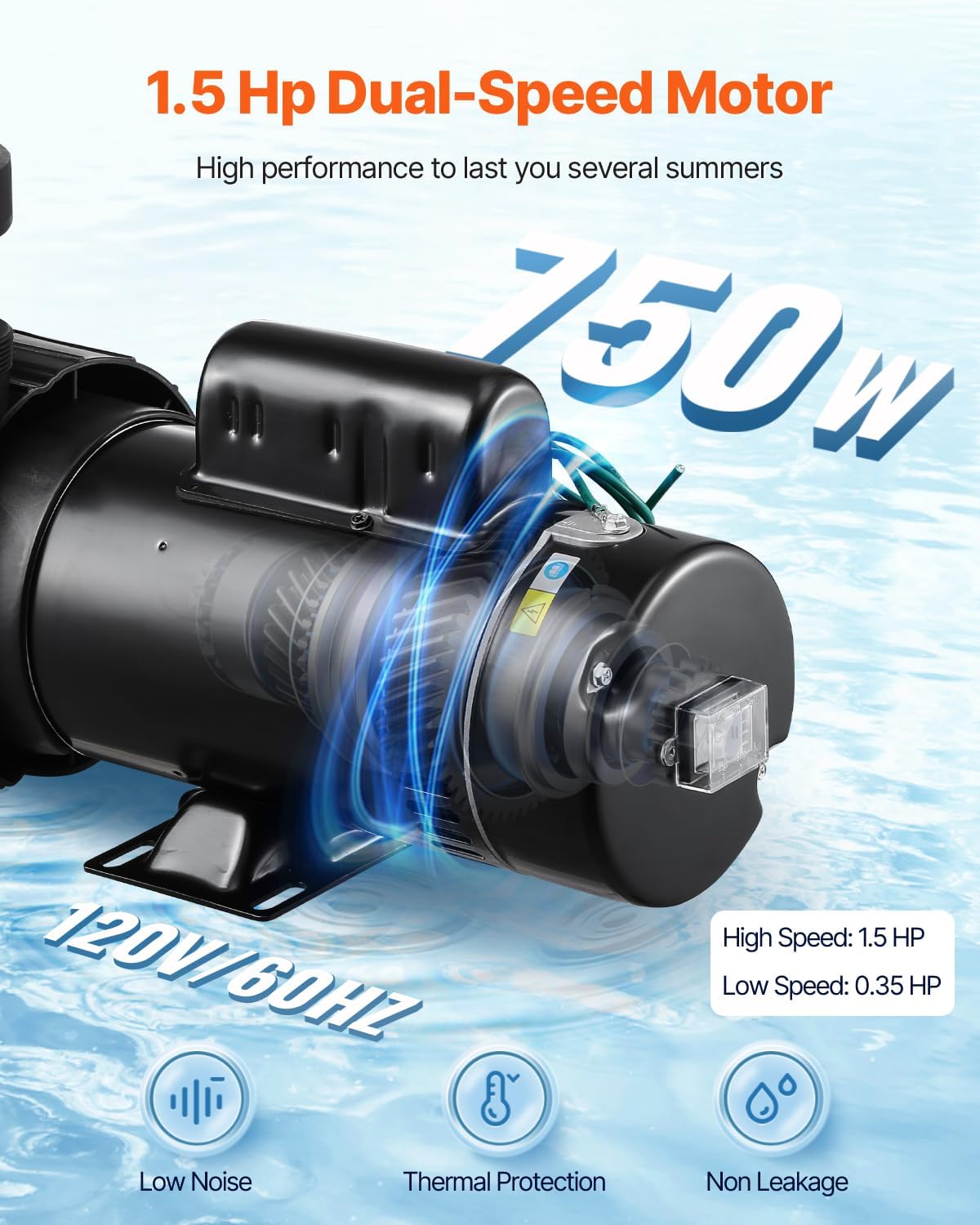

The 1.5 HP dual-speed motor provides efficient performance.
ዝርዝሮች
| ባህሪ | ዝርዝር መግለጫ |
|---|---|
| የሞዴል ቁጥር | HAP1100A 2/4 |
| ጥራዝtage | 110V-120V፣ 60 Hz |
| ኃይል | 1.5 HP (High Speed) / 0.35 HP (Low Speed) |
| የማሽከርከር ፍጥነት | 3450 ራፒኤም |
| ከፍተኛ. የጭንቅላት ማንሳት | 54 ft (High Speed) / 14 ft (Low Speed) |
| ከፍተኛ. የውሃ ፍሰት | 110 GPM (High Speed) / 52 GPM (Low Speed) |
| ከፍተኛ. የውሃ ሙቀት | 122°F (50°ሴ) |
| ቁሳቁስ | ፖሊፕሮፒሊን (PP) |
| የምርት ልኬቶች | 22.83 x 7.09 x 10.24 ኢንች (580 x 180 x 260 ሚሜ) |
| የእቃው ክብደት | 28.7 ፓውንድ (13 ኪ.ግ) |
| የገመድ ርዝመት | 35.83 ኢንች (0.91 ሜትር) |
| Compatible Sand Filter Size | 19-22 ኢንች |
| Max. Pool Gallons | 34,000 ጋሎን |
Detailed specifications and dimensions of the pump.
ማዋቀር እና መጫን
Proper installation is crucial for the pump's performance and safety. If you are unsure about any steps, consult a qualified professional.
1. የጣቢያ ምርጫ
- Choose a location that is level, dry, and well-ventilated.
- Ensure the pump is easily accessible for maintenance and servicing.
- Position the pump as close to the pool as possible to minimize friction loss in plumbing.
- Protect the pump from direct weather exposure.
2. የቧንቧ ግንኙነቶች
The pump is compatible with 1.5-inch and 2.0-inch NPT internal thread interfaces. Use appropriate fittings and sealants to ensure watertight connections.
- Connect the suction line (from the pool skimmer/main drain) to the pump's inlet.
- Connect the discharge line (to the pool return jets) to the pump's outlet.
- Ensure all connections are tight to prevent air leaks, which can affect priming and pump efficiency.
The pump supports both 1.5-inch and 2.0-inch NPT connections.
3. የኤሌክትሪክ ግንኙነት
- የኃይል አቅርቦቱ ከፓምፑ ጥራዝ ጋር እንደሚመሳሰል ያረጋግጡtage requirements (110V-120V, 60Hz).
- Connect the pump to a dedicated, grounded electrical circuit protected by a Ground Fault Circuit Interrupter (GFCI).
- Utilize the grounding terminal on the pump to connect a grounding wire, as per local electrical codes, for additional safety.
- የኃይል ገመዱን ወይም መሰኪያውን አያሻሽሉ.
የአሠራር መመሪያዎች
1. ፓምፑን መትከል
Before starting the pump for the first time, or after cleaning the strainer basket, it is essential to prime the pump:
- በመምጠጥ እና በመውጫ መስመሮች ውስጥ ያሉ ሁሉም ቫልቮች ክፍት መሆናቸውን ያረጋግጡ።
- Remove the transparent lid of the strainer basket.
- Fill the strainer basket with water until it reaches the suction pipe level.
- የአየር ፍሰትን ለመከላከል ክዳኑን በጥብቅ መያዙን ያረጋግጡ፣ ክዳኑን ይተኩት።
- Turn on the pump. The pump should begin to draw water and expel air from the discharge line. If the pump does not prime within 5 minutes, turn it off, re-check all connections for air leaks, and repeat the priming process.
2. Dual Speed Operation
This pump offers two speed settings:
- ከፍተኛ ፍጥነት፡ Provides maximum flow (110 GPM) and lift (54 ft) for initial cleaning, vacuuming, or when rapid water circulation is needed.
- ዝቅተኛ ፍጥነት; Offers reduced flow (52 GPM) and lift (14 ft) for continuous, energy-efficient filtration and daily maintenance. This setting is ideal for maintaining water clarity with lower power consumption.
Refer to the pump's control panel or switch for selecting between high and low speeds.
The pump offers high and low speed settings for varied circulation needs.
ጥገና
መደበኛ ጥገና የፓምፑን ህይወት ያራዝማል እና ጥሩ አፈፃፀም ያረጋግጣል።
1. Cleaning the Strainer Basket
The strainer basket collects debris and should be checked and cleaned regularly, especially when you notice reduced water flow.
- ፓምፑን ያጥፉ እና ኃይሉን ያላቅቁ።
- Close any necessary valves to prevent water from flowing back from the pool.
- Unscrew the transparent lid of the strainer basket.
- ቅርጫቱን አውጥተው የተሰበሰቡትን ቆሻሻዎች በሙሉ ባዶ ያድርጉ።
- ድስቱን በውሃ በደንብ ያጠቡ።
- Inspect the O-ring on the lid for cracks or wear; replace if necessary. Lubricate the O-ring with a silicone-based lubricant.
- Place the clean basket back into the pump housing.
- Securely replace the lid, ensuring a tight seal.
- Open valves and re-prime the pump as described in the Operating Instructions.

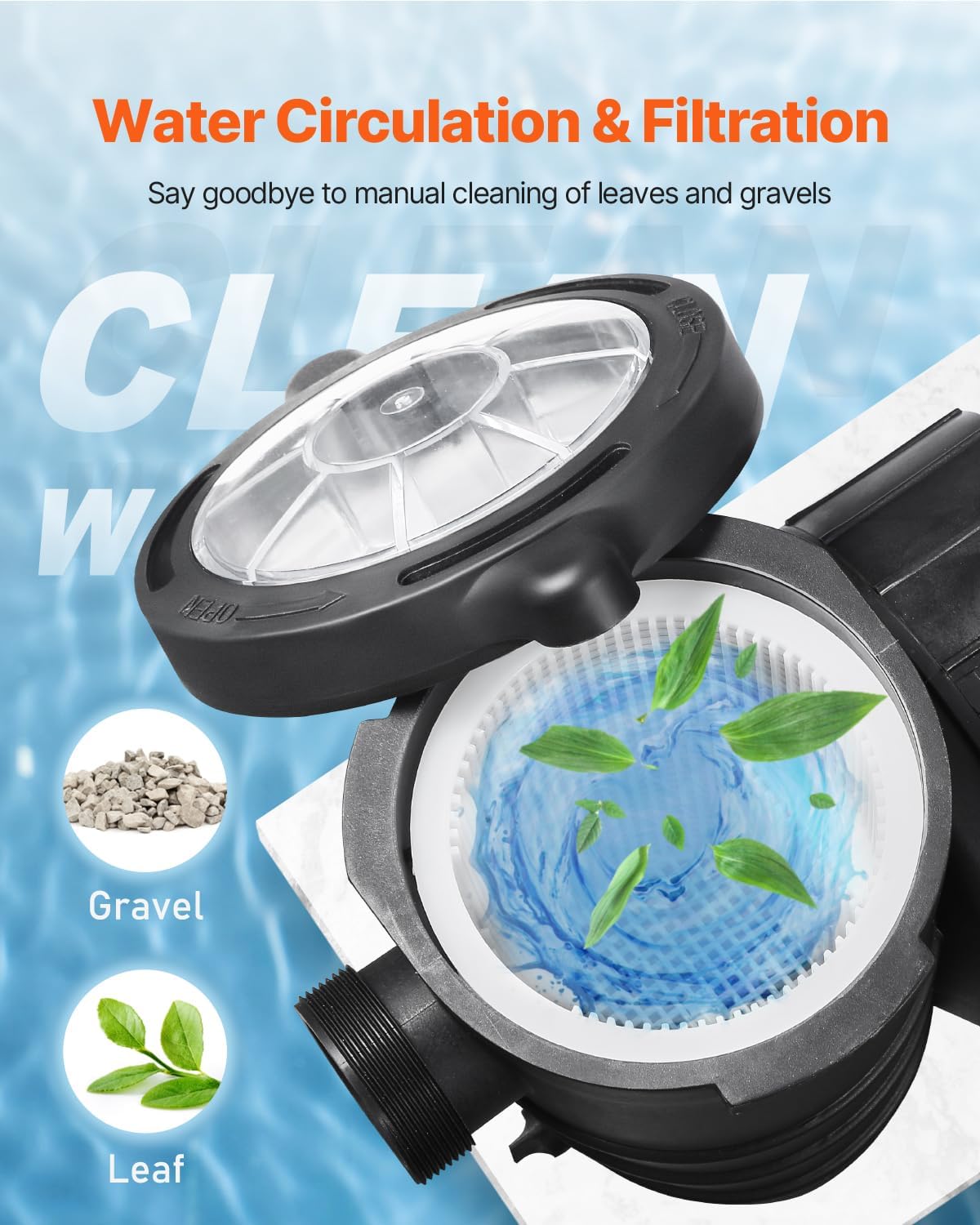

Regularly clean the strainer basket to remove debris.
2. ክረምት ማድረቅ
If you live in an area with freezing temperatures, proper winterization is essential to prevent damage to the pump.
- ፓምፑን ያጥፉ እና ኃይሉን ያላቅቁ።
- Drain all water from the pump by removing the drain plug.
- Disconnect plumbing lines.
- ፓምፑን ደረቅና ውርጭ በሌለበት ቦታ ያስቀምጡት።
መላ መፈለግ
ይህ ክፍል ከመዋኛ ገንዳ ፓምፕዎ ጋር ሊያጋጥሙዎት የሚችሉ የተለመዱ ችግሮችን ያብራራል።
| ችግር | ሊሆን የሚችል ምክንያት | መፍትሄ |
|---|---|---|
| ፓምፕ አይጀምርም | No power; tripped breaker/GFCI; motor overload. | Check power supply, reset breaker/GFCI. Allow motor to cool if overloaded. |
| Pump runs but does not prime or has low flow | Strainer basket clogged; air leak in suction line; low water level in pool; closed valves; impeller clogged. | Clean strainer basket. Check all plumbing connections for air leaks. Ensure adequate pool water level. Open all valves. Inspect impeller for debris (disconnect power first). Re-prime the pump. |
| ፓምፑ ከመጠን በላይ ጫጫታ ነው | Air leak in suction; cavitation (lack of water); motor bearing wear; pump not securely mounted. | Check for air leaks and ensure pump is primed. Verify adequate water supply to the pump. Ensure pump is mounted on a stable surface. If motor bearings are worn, professional service may be required. |
| ውሃ ከፓምፕ ይወጣል | Loose plumbing connections; worn O-rings/seals; cracked housing. | Tighten connections. Inspect and replace O-rings/seals. If housing is cracked, pump may need replacement. |
| Low speed setting not working | Internal wiring issue; faulty speed switch. | Verify the speed switch is correctly engaged. If the issue persists, contact VEVOR customer support or a qualified technician. |
ዋስትና እና ድጋፍ
For warranty information, technical support, or service inquiries regarding your VEVOR Dual Speed 1.5HP Above Ground Pool Pump (Model HAP1100A 2/4), please contact VEVOR customer service directly or refer to the warranty documentation included with your purchase. You can typically find contact information on the VEVOR official webጣቢያ ወይም በእርስዎ ቸርቻሪ በኩል.
When contacting support, please have your model number (HAP1100A 2/4) and purchase date available.
