Midea MDRB593FGD463 Inverse Frost Free Refrigerator 416L Inverter User Manual

1. መግቢያ

Thank you for choosing the Midea MDRB593FGD463 Inverse Frost Free Refrigerator. This manual provides important information regarding the installation, operation, maintenance, and troubleshooting of your appliance. Please read it thoroughly before using the refrigerator and keep it for future reference. Proper use and care will ensure optimal performance and longevity of your appliance.

2. የደህንነት መረጃ

ማቀዝቀዣዎን በሚጠቀሙበት ጊዜ የእሳት ፣ የኤሌክትሪክ ንዝረት ወይም የጉዳት አደጋን ለመቀነስ የሚከተሉትን መሰረታዊ የጥንቃቄ እርምጃዎች ይከተሉ ፡፡

• መሳሪያው በትክክል መሬት ላይ መሆኑን ያረጋግጡ.
• በአምራቹ ከሚመከሩት ዓይነት በስተቀር በምግብ ማከማቻ ክፍሎች ውስጥ የኤሌክትሪክ ዕቃዎችን አይጠቀሙ።
• ከማጽዳትዎ በፊት ወይም ማንኛውንም ጥገና ከማድረግዎ በፊት ማቀዝቀዣውን ይንቀሉ.
• የአየር ማናፈሻ ክፍተቶችን ከመስተጓጎል ያፅዱ።
• የማቀዝቀዣውን ዑደት አያበላሹ.
• ይህ መሳሪያ ለደህንነታቸው ኃላፊነት ባለው ሰው ቁጥጥር ወይም መመሪያ ካልተሰጣቸው በስተቀር የአካል፣ የስሜት ወይም የአዕምሮ ችሎታዎች ወይም የልምድ እና የእውቀት እጥረት ላላቸው ሰዎች (ልጆችን ጨምሮ) ለመጠቀም የታሰበ አይደለም።
• ልጆች ከመሳሪያው ጋር እንደማይጫወቱ ለማረጋገጥ ክትትል ሊደረግባቸው ይገባል.

3. ምርት አብቅቷልview

The Midea MDRB593FGD463 is an Inverse Frost Free refrigerator with a 416L capacity, featuring the fresh food compartment on top and the freezer compartment on the bottom. It incorporates Inverter technology for efficient and stable cooling, FlexiVolt compatibility, and a user-friendly Touch Panel.

ቁልፍ ባህሪዎች

• Inverse Design: Refrigerator compartment on top for easy access to frequently used items.
• ከበረዶ ነጻ፡ በእጅ ማራገፍን ያስወግዳል.
• ኢንቮርተር ቴክኖሎጂ፡ Provides rapid cooling, stable temperature, energy efficiency (A+++), and low noise operation.
• FlexiVolt: Compatible with both 127V and 220V power supplies.
• የመንካት ፓነል Intuitive control for temperature settings and special functions.
• ቱርቦ ፍሪዘር፡ Quickly lowers freezer temperature for rapid freezing.
• Shopping Mode: Rapidly cools the refrigerator compartment after loading new groceries.

አካላት፡-

ምስል 1፡ ፊት ለፊት view of the Midea MDRB593FGD463 Inverse Frost Free Refrigerator.

ምስል 2፡ የውስጥ view of the refrigerator and freezer compartments, showing shelves and drawers.

ምስል 3፡ ዝርዝር view of the external touch control panel.

ምስል 4፡ Visual representation of Inverter technology benefits, including energy saving, rapid cooling, better food preservation, and low noise.

4. ማዋቀር እና መጫን

4.1 ማሸግ

Carefully remove all packaging materials, including foam, tape, and protective films. Dispose of packaging responsibly. Ensure no parts are missing or damaged. Keep packaging out of reach of children.

4.2 አካባቢ

የሚከተለውን ቦታ ይምረጡ

• On a firm, level surface capable of supporting the refrigerator's weight when fully loaded.
• Away from direct sunlight, heat sources (e.g., stove, heater), and moisture.
• With adequate air circulation. Allow at least 10 cm (4 inches) of space at the back and sides for proper ventilation and heat dissipation.

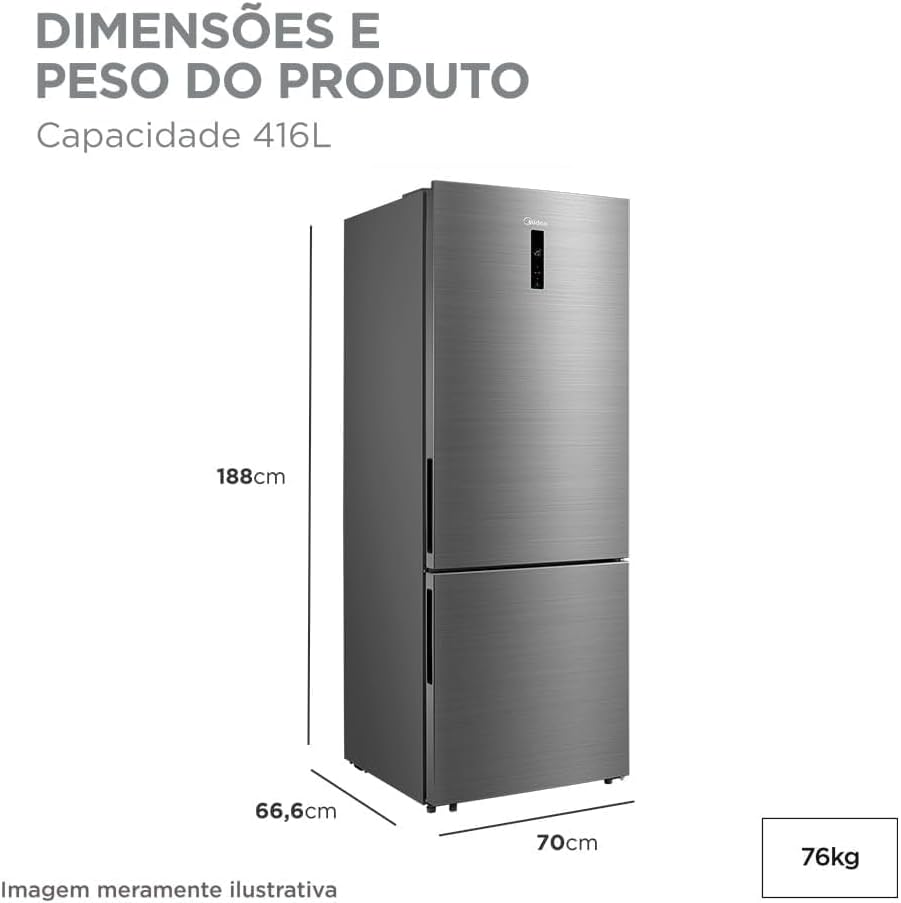

ምስል 5፡ Product dimensions (Height: 188 cm, Width: 70 cm, Depth: 66.6 cm) and weight (76 kg).

4.3 ደረጃ መስጠት

Adjust the leveling feet at the bottom of the refrigerator to ensure it is stable and level. A level appliance operates more efficiently and prevents door alignment issues.

4.4 የኃይል ግንኙነት

This refrigerator features FlexiVolt technology, allowing it to operate on both 127V and 220V power supplies. Ensure the electrical outlet is properly grounded and matches the appliance's requirements. Do not use extension cords or adapters.

4.5 የመጀመሪያ አጠቃቀም

After positioning and leveling, wait at least 2-4 hours before plugging in the refrigerator. This allows the refrigerant to settle. Before loading food, clean the interior with a damp cloth and mild detergent. Plug in the appliance and allow it to cool for several hours (e.g., 4-6 hours) before storing food.

5. የአሠራር መመሪያዎች

5.1 የቁጥጥር ፓነል

The refrigerator is equipped with an external Touch Panel for easy control of settings and functions. Refer to Figure 3 for the location of the control panel.

5.2 የሙቀት ማስተካከያ

Use the up and down arrows on the Touch Panel to adjust the temperature for both the refrigerator and freezer compartments. The temperature can be set precisely, degree by degree. The display will show the current temperature setting.

5.3 ልዩ ተግባራት

• ቱርቦ ፍሪዘር፡ Activates rapid cooling in the freezer compartment to quickly freeze new items or prepare ice. Press the designated button on the Touch Panel to activate.
• Shopping Mode: Designed to quickly lower the temperature in the refrigerator compartment after loading a large amount of new groceries, helping to preserve freshness. Press the designated button on the Touch Panel to activate.

5.4 የምግብ ማከማቻ መመሪያዎች

Store fresh foods in the upper refrigerator compartment. Use the designated drawers for fruits and vegetables. The lower freezer compartment is suitable for long-term storage of frozen foods. Ensure food is properly wrapped to prevent drying out and odor transfer.

6. ጥገና እና ጽዳት

6.1 አጠቃላይ ጽዳት

Always unplug the refrigerator before cleaning. Clean the interior and exterior surfaces regularly with a soft cloth and a mild, non-abrasive detergent. Rinse with clean water and dry thoroughly. Do not use harsh chemicals, abrasive cleaners, or sharp objects.

6.2 ማቀዝቀዝ

This is a Frost Free appliance, meaning it automatically defrosts. Manual defrosting is not required. If excessive ice buildup occurs, check if the door is sealing properly or if the door has been left open frequently.

6.3 የበር ማኅተሞች

Inspect the door seals regularly for cracks or damage. Clean them with a damp cloth to ensure a tight seal, which is crucial for energy efficiency and proper cooling.

6.4 የተራዘመ አለመኖር

If the refrigerator will not be used for an extended period, unplug it, empty all food, clean the interior thoroughly, and leave the doors slightly ajar to prevent odors and mold growth.

7. መላ መፈለግ

የደንበኞች አገልግሎትን ከማነጋገርዎ በፊት የሚከተሉትን የተለመዱ ችግሮች ያረጋግጡ፡

8. ዝርዝሮች

9. ዋስትና እና ድጋፍ

This Midea refrigerator comes with a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms, conditions, and duration. For technical assistance, spare parts, or warranty claims, please contact Midea customer support through their official webጣቢያ ወይም በእርስዎ የዋስትና ሰነድ ውስጥ የቀረበው የእውቂያ መረጃ።
