ANCEL DS500 Elite OBD2 Scanner and BT310 Battery Tester User Manual

1. መግቢያ

This manual provides detailed instructions for the ANCEL DS500 Elite Bidirectional Scan Tool and the ANCEL BT310 12V/24V Car Battery Tester. Please read this manual thoroughly before operating the devices to ensure correct usage and optimal performance. Keep this manual for future reference.

2. ምርት አብቅቷልview

2.1 ANCEL DS500 Elite Bidirectional Scan Tool

The ANCEL DS500 Elite is an advanced diagnostic scan tool designed for comprehensive vehicle system analysis. It features bidirectional control capabilities, allowing users to send commands to vehicle modules and monitor system responses. This tool supports full-system deep scans and offers over 3,000 active test commands.

• ባለሁለት አቅጣጫ ቁጥጥር፡ Perform active tests on various components like fuel pumps, cooling fans, windows, and mirrors.
• Full System Deep Scan: Uncover critical data from every module and sensor, including Engine, ABS, Airbag, Transmission, TPMS, SAS, ESP, BCM, HVAC, EBS, and ACM.
• Hot Reset Service: Access over 28 maintenance reset functions for various car brands, including D-P-F Regeneration, AdBlue Reset, Oil Life Reset, EGR Adaptation, IMMO Reset, Gear Learning, Battery Matching, SAS Calibration, A/F Ratio/Fuel Reset, ABS Bleeding, Air Suspension Reset, NOx Sensor Reset, AFS Reset, ETA Reset, Coolant Pump Activation, Brake-pad Reset, Seat Calibration, and Airbag Reset.
• የዕድሜ ልክ ነፃ ዝመናዎች፡- Ensures compatibility with evolving vehicle diagnostic systems without subscription fees.

2.2 ANCEL BT310 12V/24V Car Battery Tester

The ANCEL BT310 is a versatile battery load tester compatible with both 12V and 24V battery systems. It supports various battery types and provides accurate health assessments, cranking tests, and charging tests.

• ሁለንተናዊ ተኳኋኝነት Supports 12V and 24V Lithium and Lead-Acid batteries, including Flooded, AGM (Spiral & Flat Plate), GEL, and EFB types.
• Multiple Standards: Compatible with major battery standards such as CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, and GB.

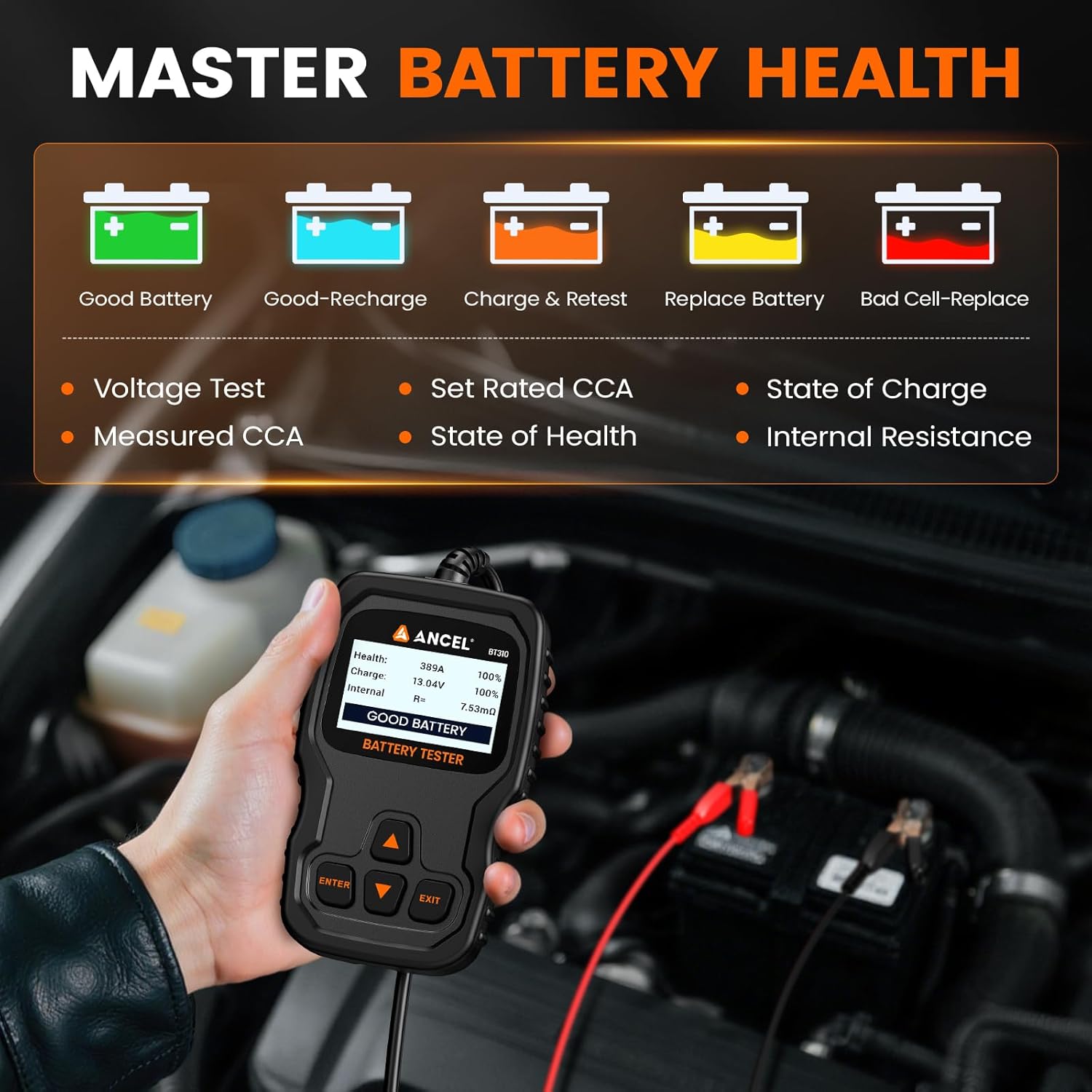

• Key Diagnostics: Measures State of Charge (SOC), State of Health (SOH), Voltage Test, Rated and Measured CCA, and Internal Resistance.
• የፈተና ውጤቶች፡- Provides clear results: [GOOD BATTERY], [GOOD-RECHARGE], [CHARGE & RETEST], [REPLACE BATTERY], and [BAD CELL-REPLACE].

3. ማዋቀር

3.1 ANCEL DS500 Elite Setup

1. አብራ፡ Connect the DS500 Elite to the vehicle's OBD-II port. The device will power on automatically.
2. የመጀመሪያ ውቅር፡ Follow the on-screen prompts to select language, time zone, and Wi-Fi connection.
3. የሶፍትዌር ማሻሻያ Ensure the device is connected to Wi-Fi and check for available software updates to maintain optimal performance and vehicle compatibility.

3.2 ANCEL BT310 Setup

1. ከባትሪ ጋር ተገናኝ፡ Ensure the vehicle engine is off. Connect the red clamp የባትሪውን አወንታዊ (+) ተርሚናል እና ጥቁር clamp ወደ አሉታዊ (-) ተርሚናል.
2. አብራ፡ The BT310 will power on automatically once connected to the battery.
3. የባትሪ ዓይነት ይምረጡ፡- Use the navigation buttons to select the correct battery type (e.g., Flooded, AGM, GEL, EFB, Lithium) and standard (e.g., CCA, BCI) as prompted on the screen.

4. የአሠራር መመሪያዎች

4.1 ANCEL DS500 Elite Operation

1. የተሽከርካሪ ግንኙነት፡ Plug the OBD-II cable into the vehicle's diagnostic port, usually located under the dashboard.
2. የተሽከርካሪ መለያ፡ The DS500 Elite will automatically detect the vehicle's VIN or prompt you to manually enter vehicle information (make, model, year).
3. Diagnostic Menu: Navigate the main menu to select desired functions:
   • መርምር፡ Perform full system scans, read/clear fault codes, view live data streams, and check I/M readiness.
   • ንቁ ሙከራ፡- Select specific control modules and components to perform bidirectional tests (e.g., activate ABS pump, cycle cooling fan).
   • አገልግሎት፡ Access various reset and maintenance functions (e.g., Oil Reset, EPB Reset, SAS Calibration).
   • አዘምን የሶፍትዌር ዝመናዎችን ያረጋግጡ እና ይጫኑ።
4. ዳታ ዳግምview: After performing tests, review the diagnostic reports, freeze frame data, and live data graphs on the device screen.

4.2 ANCEL BT310 Operation

1. ዋና ምናሌ፡- Once powered on, the BT310 will display the main menu with options like 'Battery Test', 'Cranking Test', 'Charging Test', and 'Review ውሂብ '.
2. የባትሪ ሙከራ፡- Select 'Battery Test'. The device will prompt you to enter the battery's rated CCA (Cold Cranking Amps) or other standard values. Follow the on-screen instructions. The test will provide results such as SOC, SOH, Voltage, Measured CCA, and Internal Resistance, along with a clear status (e.g., GOOD BATTERY, REPLACE BATTERY).
3. የክራንኪንግ ሙከራ; Select 'Cranking Test'. The device will instruct you to start the vehicle. It will then measure the cranking voltage and time, providing an assessment of the starter system's performance.
4. የኃይል መሙያ ሙከራ Select 'Charging Test'. The device will instruct you to run the engine at idle and then at a higher RPM (e.g., 2500 RPM). It will measure the alternator's output voltage and ripple, assessing the charging system's efficiency.
5. Review ውሂብ፡- 'Re'ን ይምረጡview Data' to view ቀደም ሲል የተቀመጡ የሙከራ ውጤቶች።

5. ጥገና

• ማጽዳት፡ Use a soft, dry cloth to clean the device screens and bodies. Avoid using abrasive cleaners or solvents.
• ማከማቻ፡ Store both devices in a dry, cool environment, away from direct sunlight and extreme temperatures.
• የኬብል እንክብካቤ; Inspect cables regularly for any signs of damage. Do not pull on the cables to disconnect them; always grasp the connector.
• Software Updates (DS500 Elite): Regularly check for and install software updates to ensure the scanner has the latest vehicle data and diagnostic capabilities.

6. መላ መፈለግ

• መሳሪያ አይበራም
  • DS500 Elite: Ensure the OBD-II cable is securely connected to the vehicle's diagnostic port. Check the vehicle's battery for sufficient charge.
  • BT310፡ የ cl መሆኑን ያረጋግጡamps are correctly connected to the battery terminals (red to positive, black to negative) and that the battery has sufficient voltage.
• Communication Error (DS500 Elite):
  • Check if the vehicle's ignition is on.
  • Ensure the OBD-II connector is fully seated.
  • Verify that the vehicle supports the OBD-II protocol.
  • Try testing on a different compatible vehicle to rule out a vehicle-specific issue.
• Inaccurate Battery Test Results (BT310):
  • ባትሪውን cl ያረጋግጡamps are clean and have good contact with the battery terminals.
  • Verify that the correct battery type and CCA rating were entered into the tester.
  • Ensure the battery is fully charged before testing for the most accurate results.
• Screen Freezes or Device Unresponsive:
  • Perform a soft reset by holding the power button (if available) or disconnecting and reconnecting the device.
  • If the issue persists, contact ANCEL support.

7. ዝርዝሮች

7.1 ANCEL DS500 Elite Bidirectional Scan Tool

• ፕሮሰሰር፡ 2.0GHz Cortex-A53 Quad-Core
• ስርዓተ ክወና፡ አንድሮይድ 10.0
• ማህደረ ትውስታ፡ 2 ጊባ ራም ፣ 32 ጊባ ሮም
• ማሳያ፡- 7-inch screen, 1024x600 resolution
• ባትሪ፡ 3150mAh, 3.8V
• ግንኙነት፡ Wi-Fi for updates and online support
• የምርመራ ተግባራት፡- Full system diagnostics, bidirectional control, 28+ reset services.

7.2 ANCEL BT310 12V/24V Car Battery Tester

• ጥራዝtagሠ ክልል: 12 ቪ እና 24 ቪ
• የCCA ክልል፡ 100-2000 ሲሲኤ
• የሚደገፉ የባትሪ ዓይነቶች፡- Flooded, AGM (Spiral & Flat Plate), GEL, EFB, Lithium.
• የሚደገፉ ደረጃዎች፡- CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, GB.
• Tests Performed: Battery Health (SOC, SOH, Voltage, Internal Resistance, Rated/Measured CCA), Cranking Test, Charging Test.

8. ዋስትና እና ድጋፍ

The ANCEL DS500 Elite comes with lifetime free software updates, ensuring your tool remains compatible with evolving vehicle diagnostic systems without additional subscription fees. For technical assistance or support, you can easily contact the professional engineering team through the online chat window available on the DS500 Elite device. Feedback can also be provided via the feedback section on the device to help improve services.
